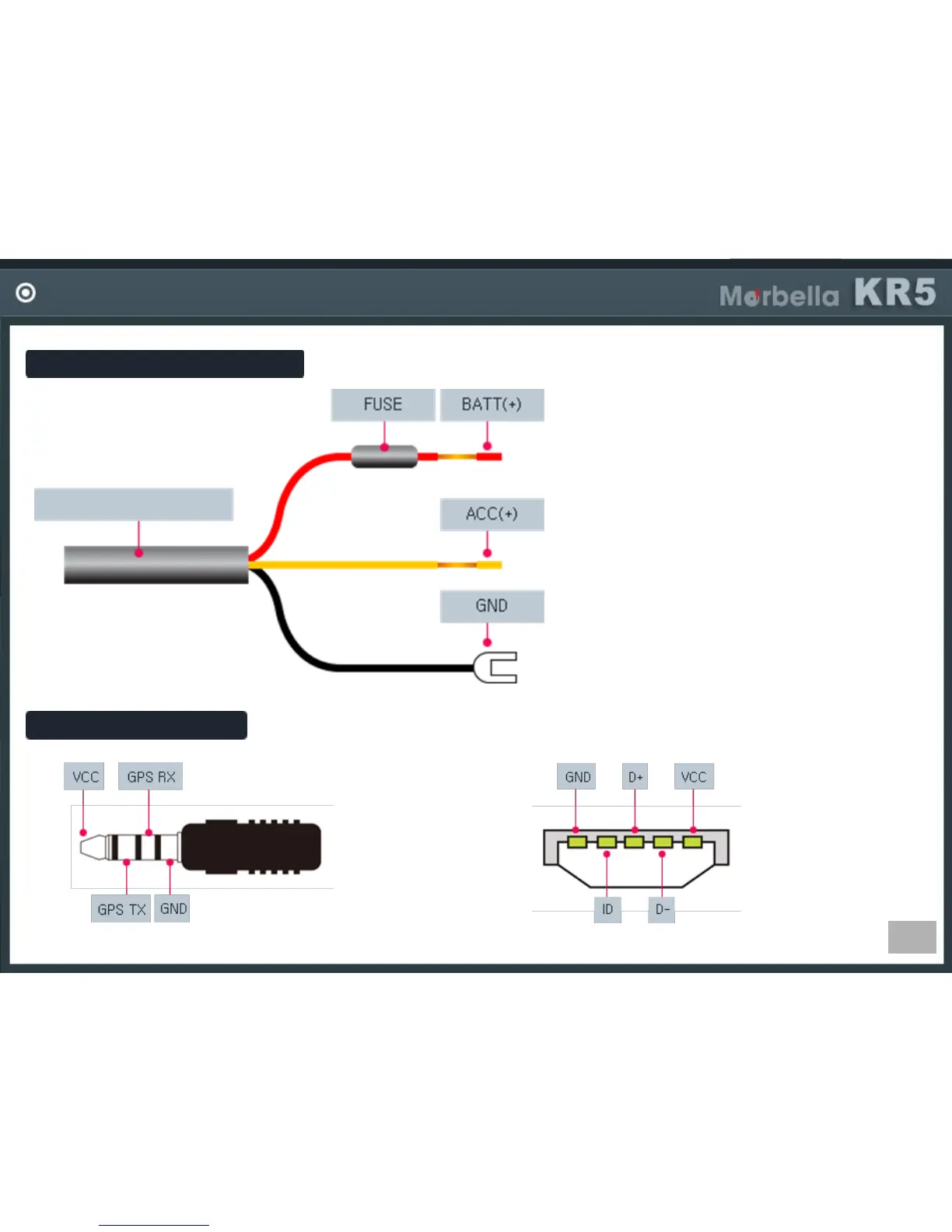

POWER CABLE HARDWIRING
Power Cable Hardwiring
BATT(+)
Red wire having fuse.
Connect it to car permanent power source
(EX : emergency lamp, dome light, taillight etc..)
ACC(+)
Yellow wire.
Connect to the fuse that gets power through
the ignition.
(EX: cigarette lighter, audio)
GND
Black wire.
Connect to the vehicle chassis or vehicle bolts.
Plug and USB Info
GPS Plug
GPS IN Plug 2.5pai pin information
5 Pin USB
Mini USB 5pin
information
HARDWIRE POWER CABLE
