3C-40 - FUEL SYSTEMS 90-824052R3 JUNE 2002

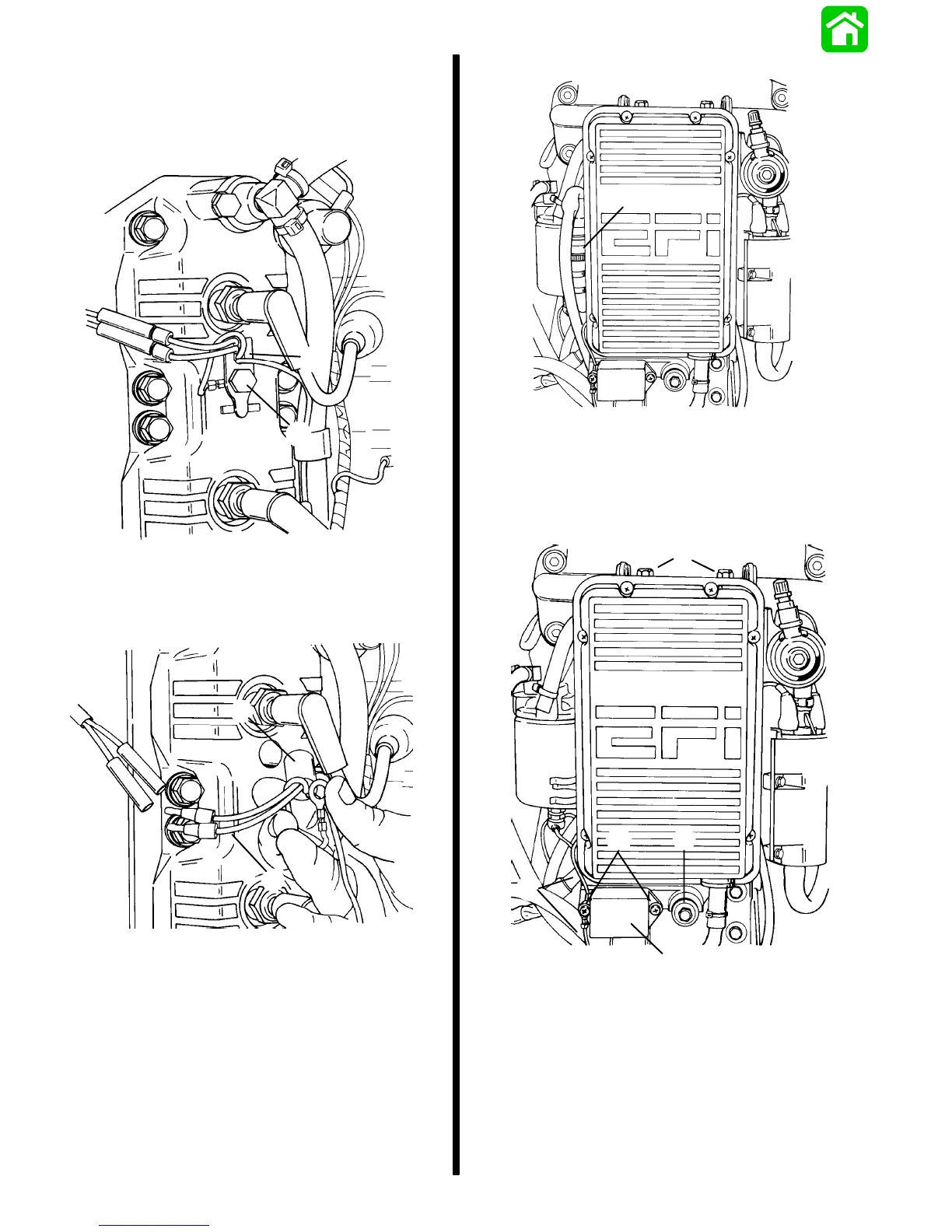

Engine Head Temperature
Sensor Removal
1. Remove screw and retaining plate.
51785
a
b
a - Screw
b - Retaining Plate
2. Disconnect wires and remove sensor.
a
b
51785
a - Wires
b - Sensor
EFI Induction Manifold
Removal
IMPORTANT: Remove battery cables from bat-
tery before Induction Manifold Removal and Dis-
assembly.
1. Disconnect ECM at harness connector.
a
51793
a - Connector
2. Remove screws (b) and ground wires (c).
3. Remove water sensing module (d).
4. Remove nuts (e) and screw (f).
51793
d
c
fb
e
b - Screws
c - Ground Wires
d - Water Sensing Module
e - Nuts
f - Screw
To Next Page
