3C-54 - FUEL SYSTEMS 90-824052R3 JUNE 2002
Induction Manifold
Assembly
Injector Harness Installation

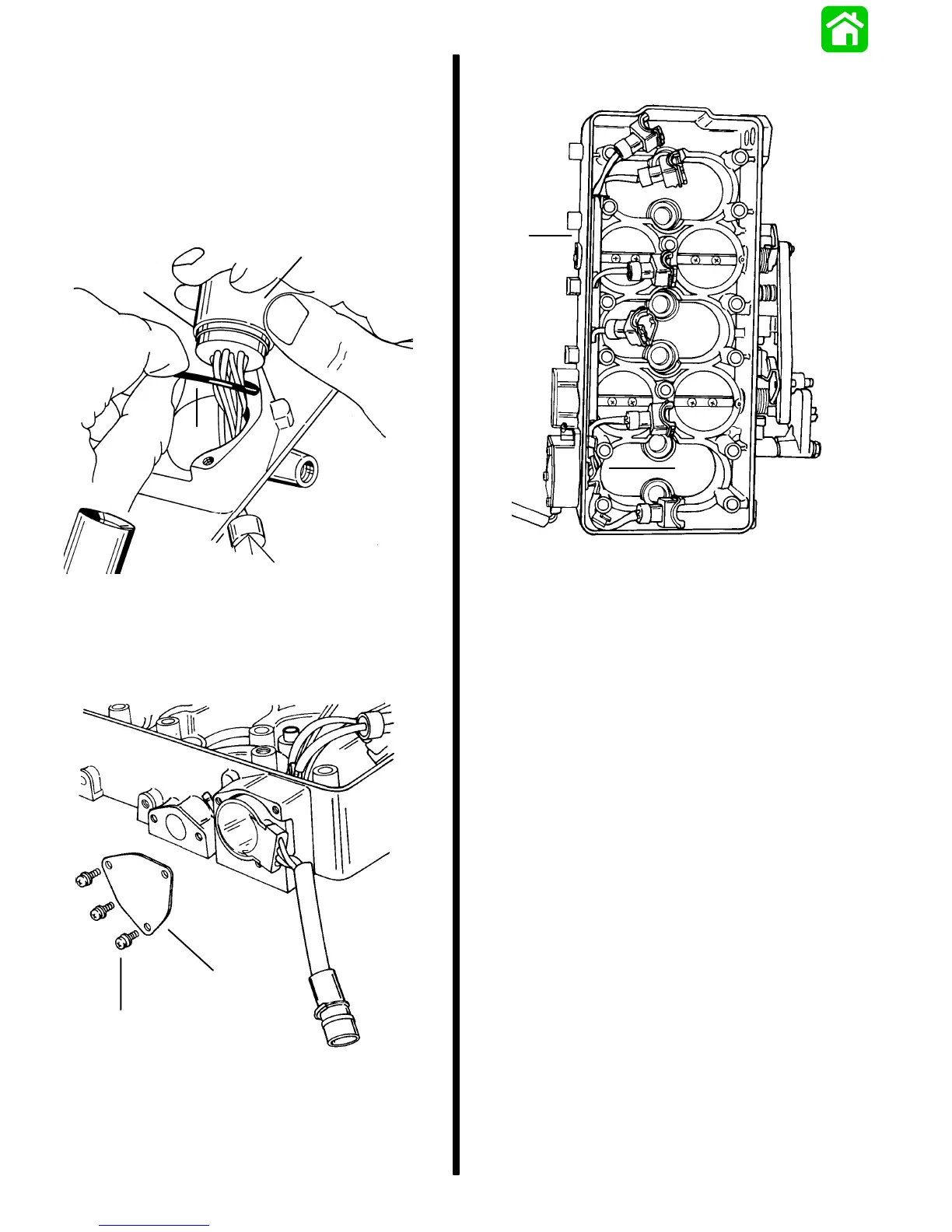

1. Carefully route injector harness into manifold.
2. Install O-ring into groove on injector harness
insert. Install harness insert into manifold port.
a
b
c
a - O-Ring
b - Groove
c - Insert
3. Install injector harness plate using screws.
Tighten securely.
a
b
51792
a - Plate
b - Screws
4. Install protective casing over positioned injector
wiring harness and insert into manifold.
a
b
51795
a - Casing
b - Harness
To Next Page
