5302 POWER AMPLIFIER / OWNER’S MANUAL
CONNECTIONS
CONNECTIONS

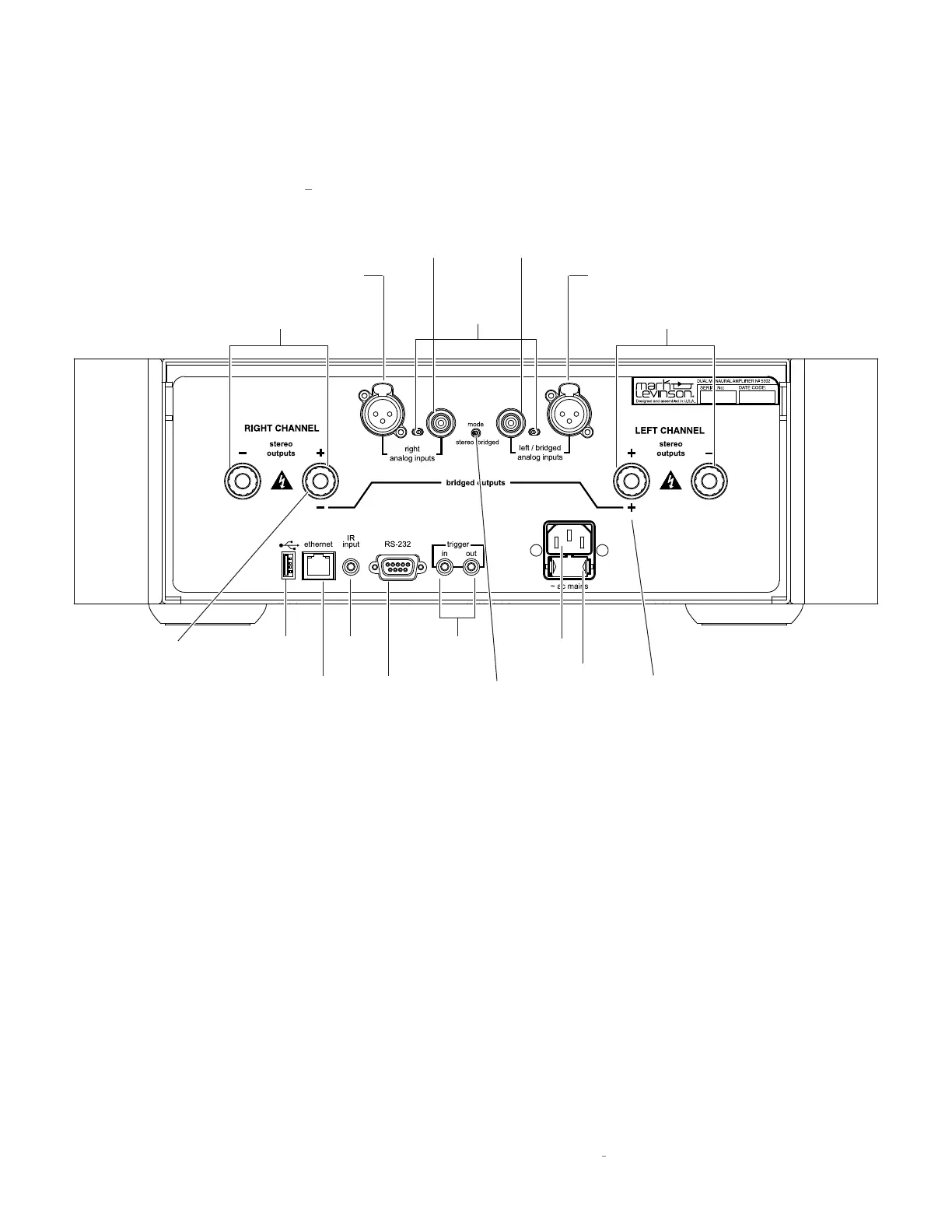

REAR-PANEL OVERVIEW N
O
5302
Input Ground
Switches
Right Channel Stereo
Output Terminals
Left Channel Stereo
Output Terminals
Right Channel Balanced
Stereo Input
Left Channel/Bridged
Balanced Input
Right Channel Stereo
Single-Ended Input
Bridged Operation
Negative (-) Output Terminal
USB A
for Updates
IR In Trigger
In and Out
Stereo/Bridged
Selector Switch
Ethernet RS232
DB9F
Bridged Operation
Positive (+) Output Terminal
AC Mains Inlet
Fuse
Compartment
(see rear-panel
labeling for value)
Left Channel/Bridged
Single-Ended Input
