MGT 240M–1200M 3” NXT2 - SYSTEM 14 DEMAND
MAINTENANCE
44

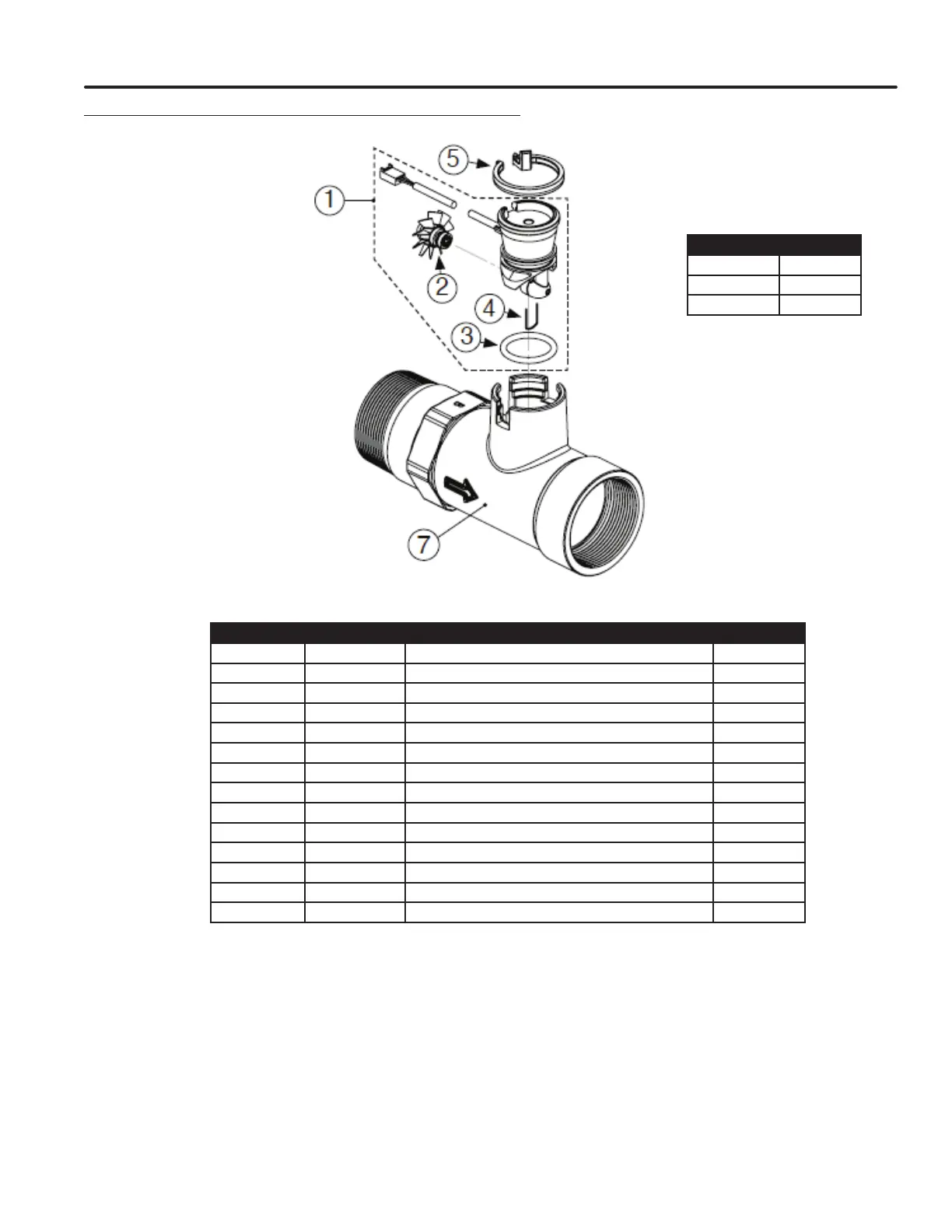

CLACK STAINLESS STEEL TURBINE METER ASSEMBLIES
ITEM NUMBER PART NUMBER DESCRIPTION CLACK NO
A2360069 1-1/2" METER COMPLETE, 15' CABLE V3040-15
A2426203 2" METER COMPLETE, 15' CABLE V3094-15
A2360072 3" METER COMPLETE, 15' CABLE V3095-15
1 A2360061 REMOTE METER ASSY 15' CORD (incl. 2, 3 & 4) V3221
2 A2100029 TURBINE ASSEMBLY V3118-03
3 A2077178 O-RING -215 V3105
4 TURBINE CLIP V3501
5 A2411021 METER RETAINING CLIP V3632
7 WS1.5 METER HOUSING NPT V3401-04
7 WS2 METER HOUSING NPT V3754-01
7 WS3 METER HOUSING NPT V3844-01
Not Shown A2503006 WS1.5 FLOW STRAIGHTENER V3437
Not Shown WS2 FLOW STRAIGHTENER V3488
Not Shown WS3 FLOW STRAIGHTENER V3602
K-FACTOR TABLE
(pulses per gallon)
METER SIZE K-FACTOR
1-1/2" 37
2" 20
3" 8
NOTES:
1) When installing the meter, make sure the arrow on the meter body is going in the same direction as the water flo .
2) This water meter should not be used as the primary monitoring device for critical or health effect applications.
3) Operating Pressures: 20-125 psi. Operating Temperatures: 40-110°F.
4) Meter can be installed in either horizontal or verical applications.
