MGT 240M–1200M 3” NXT2 - SYSTEM 14 DEMAND
OPERATION
20

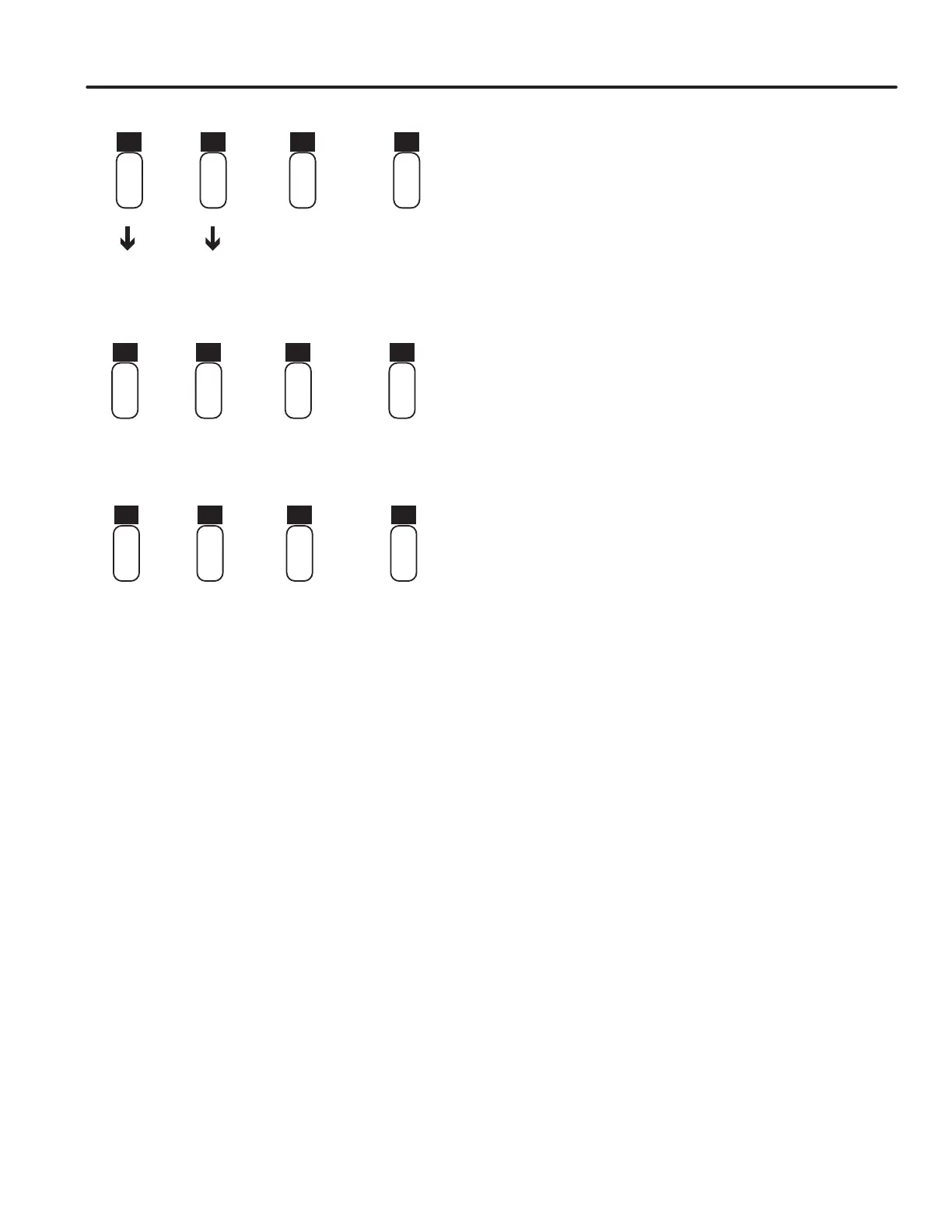

FLOW IN A FOUR-UNIT SYSTEM (SYSTEM 14 DEMAND RECALL)
FLOW IN A FOUR-UNIT SYTEM
(SYSTEM 14-DEMAND RECALL)
In Service
In Service
1 2 3 4
Standby Standby
Steady Flow:
Volume
Remaining = 0
Volume
Remaining = 0
Regeneration
(
Volume
Remaining = 0)
In Service
(Volume
Remaining = 0)
1 2 3 4
In Service In Service
Flow Increases Past the Trip Point:
Regeneration
Standby
1 2 3 4
In Service In Service
Flow Stays Steady:
