MGT 2” 60M–600M NXT2 TWIN ALTERNATING
OPERATION

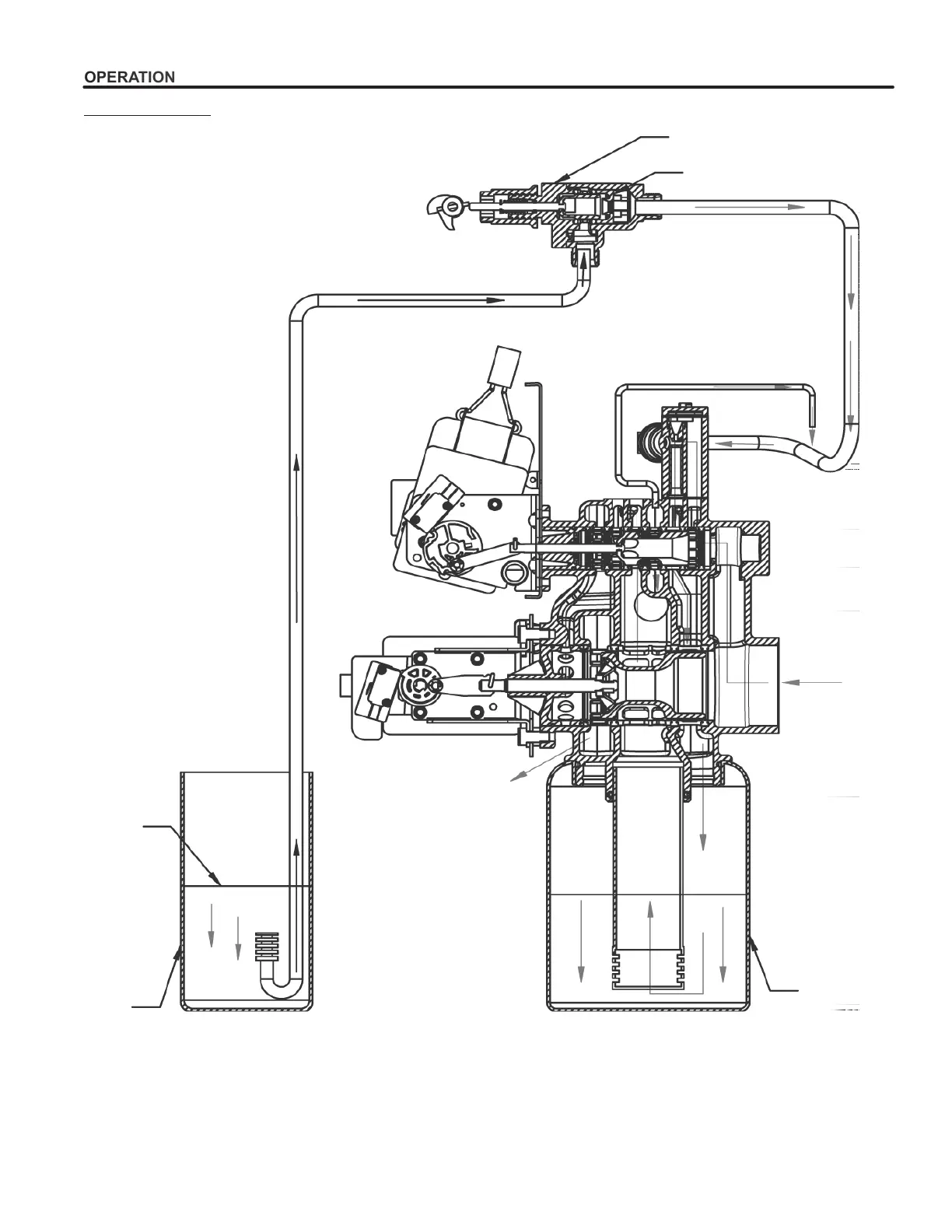

BRINE POSITION
Hard water enters unit at valve inlet — ows up into injector housing and down thru nozzle and orice to draw brine
from the brine tank — brine ows down thru mineral and enters the center tube thru bottom distributor — ows up thru
center tube — around the piston and out thru the drain line.
OUTLET
BRINE VALVE
FLOW CONTROL
INLET
BRINE
TANK
BRINE
LEVEL
RESIN
TANK
