24
MGT 2” 60M–600M NXT2 TWIN ALTERNATING
OPERATION

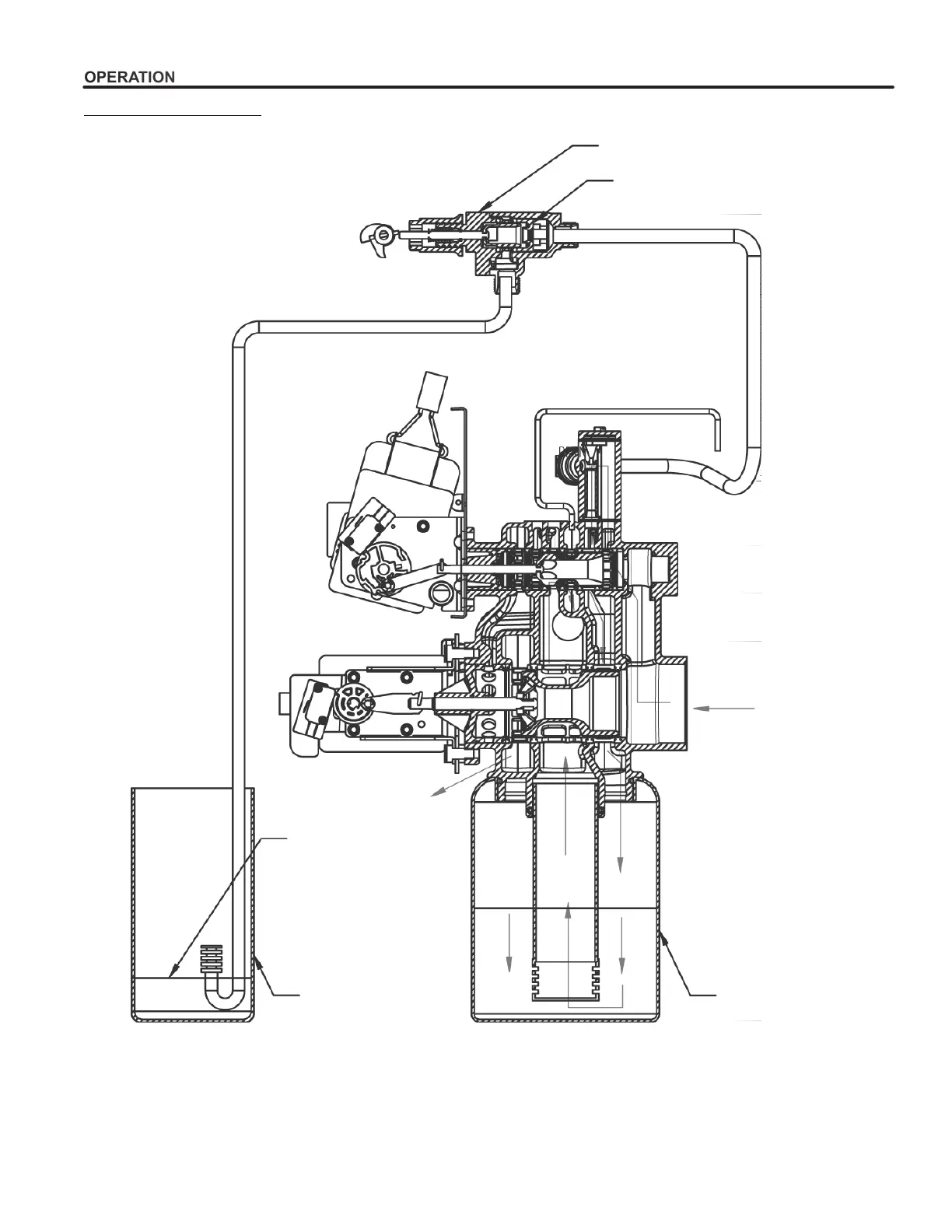

SLOW RINSE POSITION
Hard water enters unit at valve inlet — ows up into injector housing and down thru nozzle and orice — around the
piston — down thru mineral — enters center tube thru bottom distributor — ows up thru center tube — around piston
and out thru the drain line.
BRINE VALVE
FLOW CONTROL
INLET
OUTLET
BRINE
TANK
BRINE
LEVEL
RESIN
TANK
DRAIN
