8E20
N
Operator’s Manual
1.2
Front Panel
1 GAP channel 1 CRASH channel
2 GAP channels 1 GAP channel + 1 CRASH channel

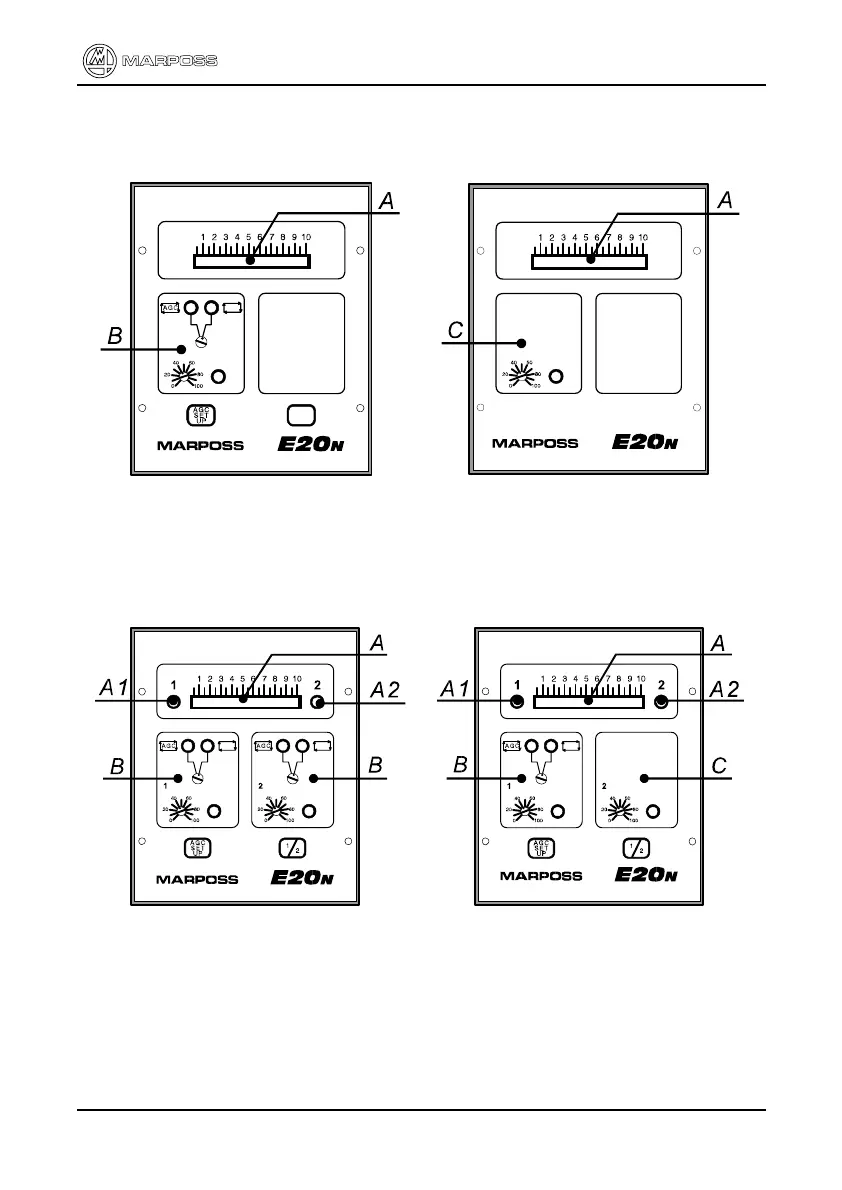

Figure 1: E20N Front Panel
