12. MAINS INPUT
The supplied mains power lead is connected here.
The mains input voltage rang that your amp has
been built for is shown on the rear panel.
Warning: before powering on, ensure the amp is
compable with the mains voltage of the country
that the amp is being used in. If you have any
doubt, please get advice from a qualied person.
13. FX LOOP RETURN
Connect the output of an external FX pedal or
processor.
14. FX LOOP SEND
Connect the input of an external FX pedal or
processor.
15. F/S
Connect the supplied channel footswitch here
(PEDL-90011).
16. AUDIO IN
Connect an external device here to pracce with
or jam along to music.
REAR PANEL FUNCTIONS
17. EMULATED OUT
Frequency-compensated line level output
for headphones. This output features cabinet
emulaon by Soube®. This means the sound
from this output includes simulaon of the sound
of a speaker and a cabinet.
Warning: When using the DSL1HR head for
‘silent’ pracce or DI recording, only disconnect
the speaker cabinet from the amplier’s rear
panel while the amp is switched o. Never unplug
the speaker cable from the speaker cabinet while
it is sll connected to the amplier rear panel.
This may damage your amp.
18. LOW POWER
Use this switch to reduce power level from 1W
down to 0.1W.
19. SPEAKER OUTPUT
Connect a single speaker cabinet here for the
DSL1HR head, or an oponal 1 x 16OHM
extension speaker cabinet for the DSLCR combo.
Warning: Only ever connect a single 1 x
16Ω speaker cabinet. Any other speaker
conguraon may stress or damage the amp.

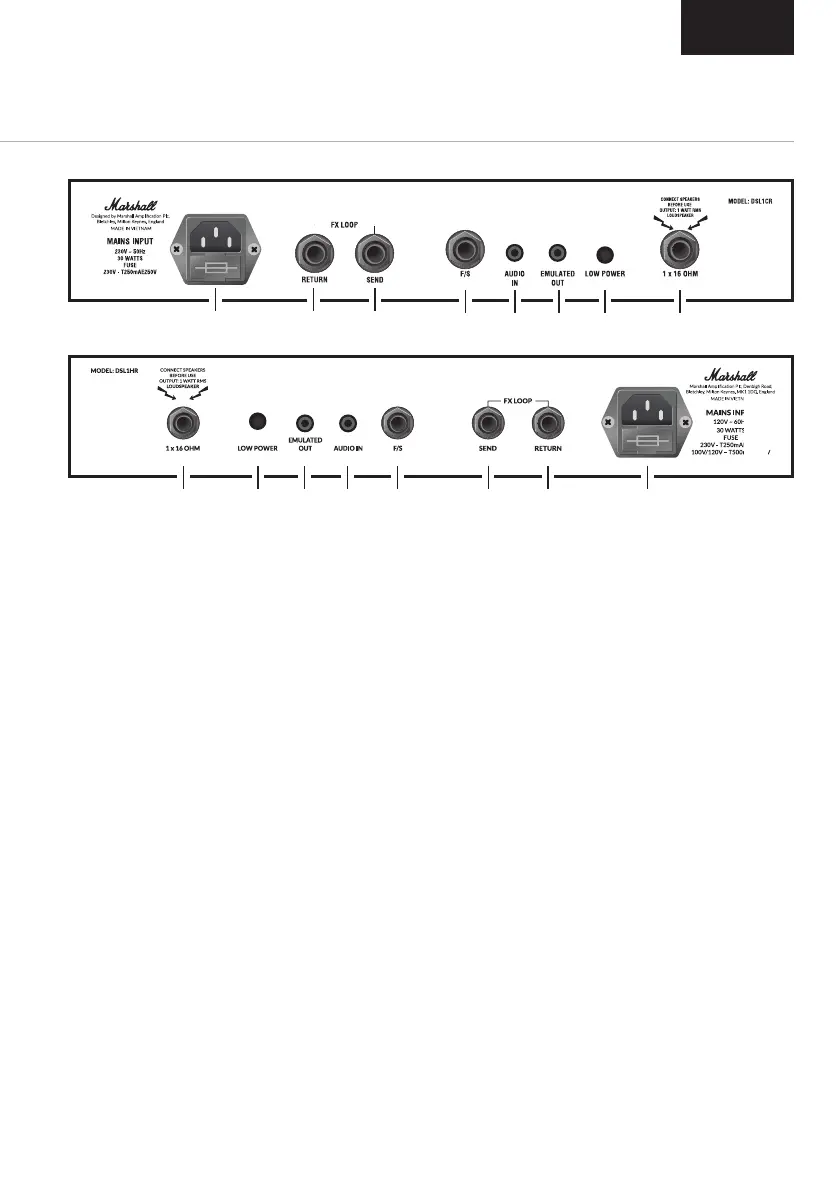

12 13 14
15 16 17 18 19
DSL1CR
DSL1HR
121314
1516171819
