Marshall Electronics 10

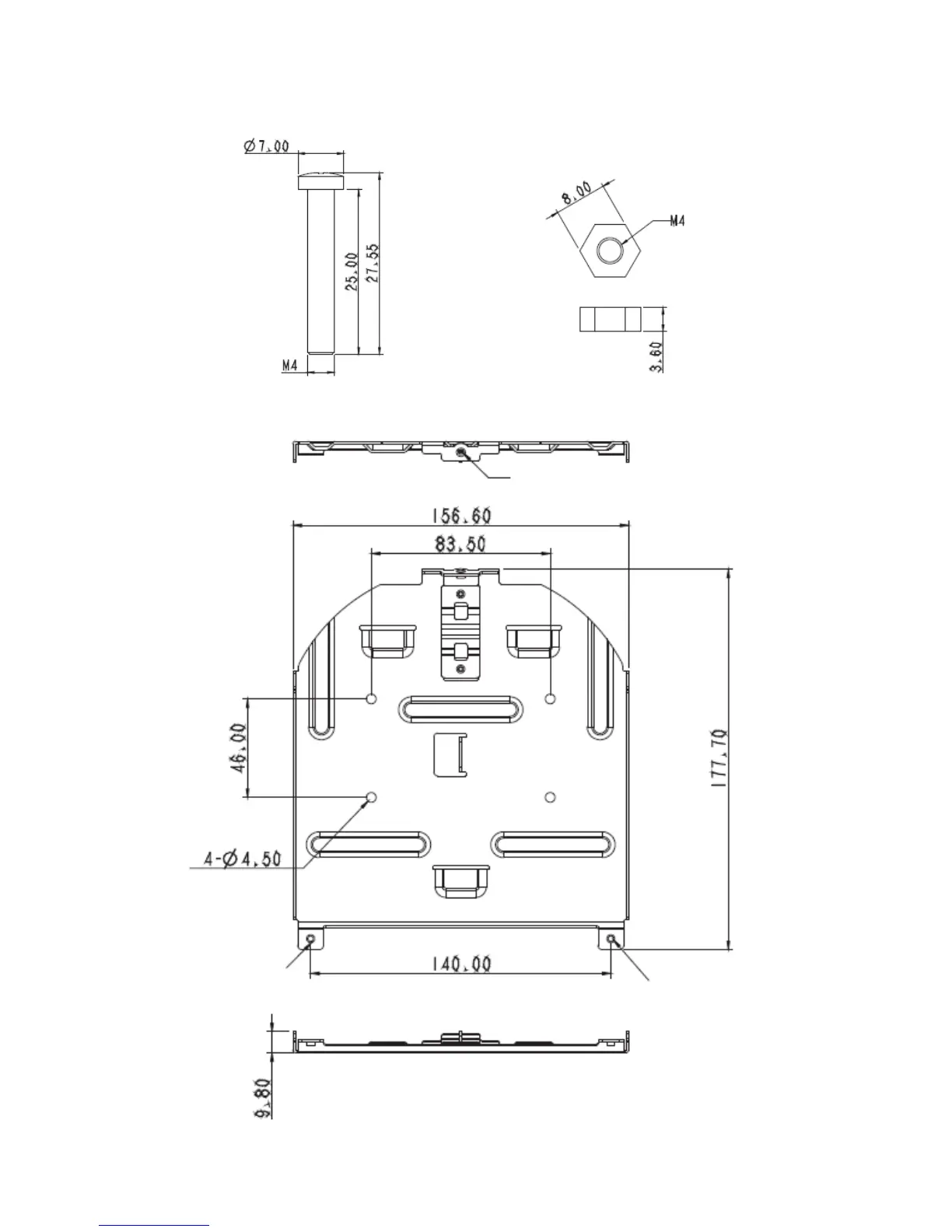

4.2.2.4 Size Diagram
1. Metal plate B - ceiling side
Metal plate B locking
screw
Metal plate B locking bolt
Metal
p
late B - ceilin
g
side
M3 threaded hole
M3 threaded
hole
M3 threaded
hole
