Marshall Electronics 6
Product Overview

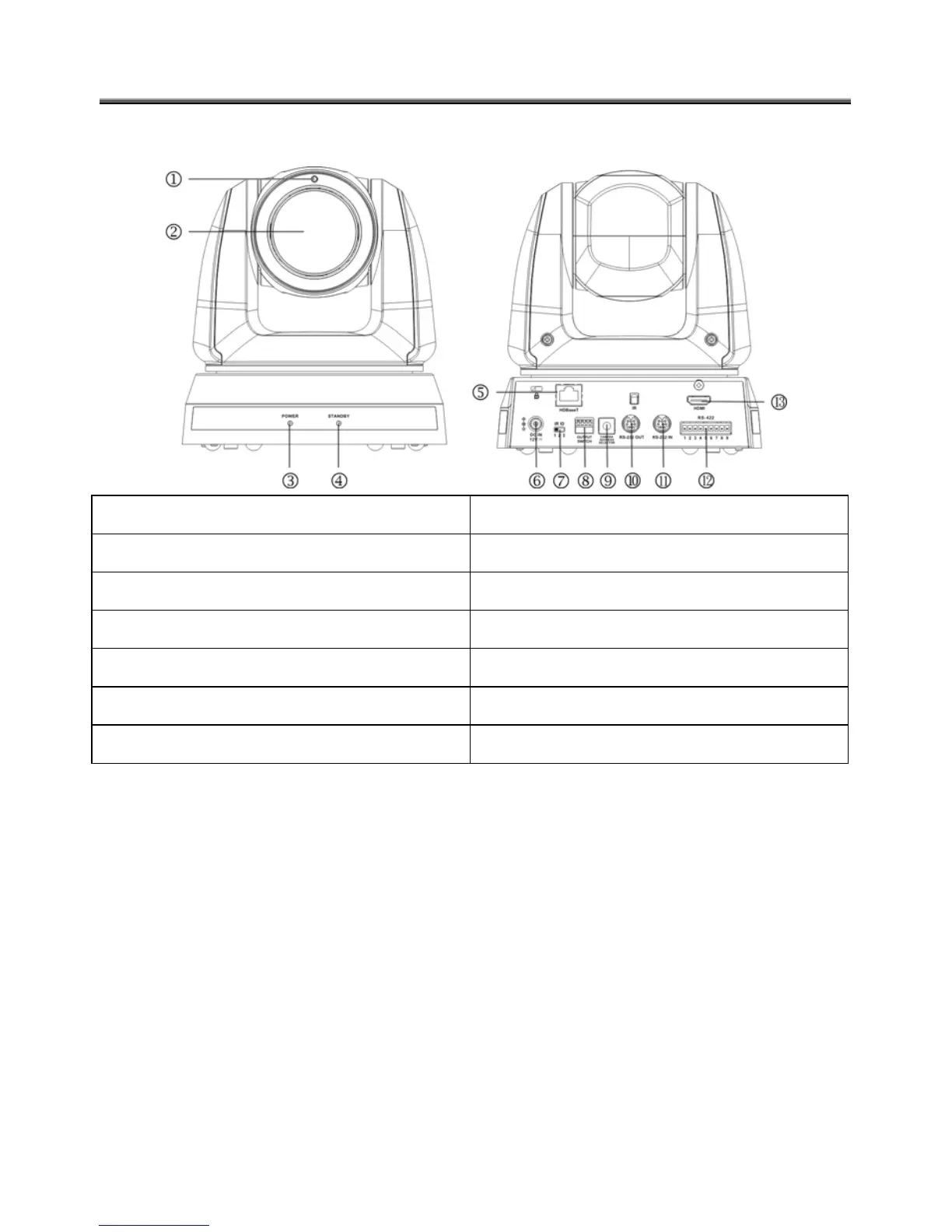

3.1 Overview
1. Tally indicator 2. Camera lens
3. Power LED indicator 4. Standby LED indicator
5. HDBaseT output (POE 802.3af) 6. Power input
7. IR SELECT 8. OUTPUT Switch
9. Camera Address Selectors 10. RS-232 output
11. RS-232 input 12. RS-422 Connection
13. HDMI Output
3.2 Description of LED indicator
3.2.1 Power:
3.2.1.1 No Light: Power off
3.2.1.2 Green light: In use
3.2.1.3 Flickering green: Signal from the remote control is received; the
indicator flickers every 0.5 second
3.2.2 Standby:
3.2.2.1 Orange: In standby mode
3.2.2.2 No Light: Power on
3.2.2.3 Green light: HDBaseT and HDMI are connected
3.2.2.4 No Light: HDBaseT is connected
Front View
Rear View
