Marshall Electronics 17

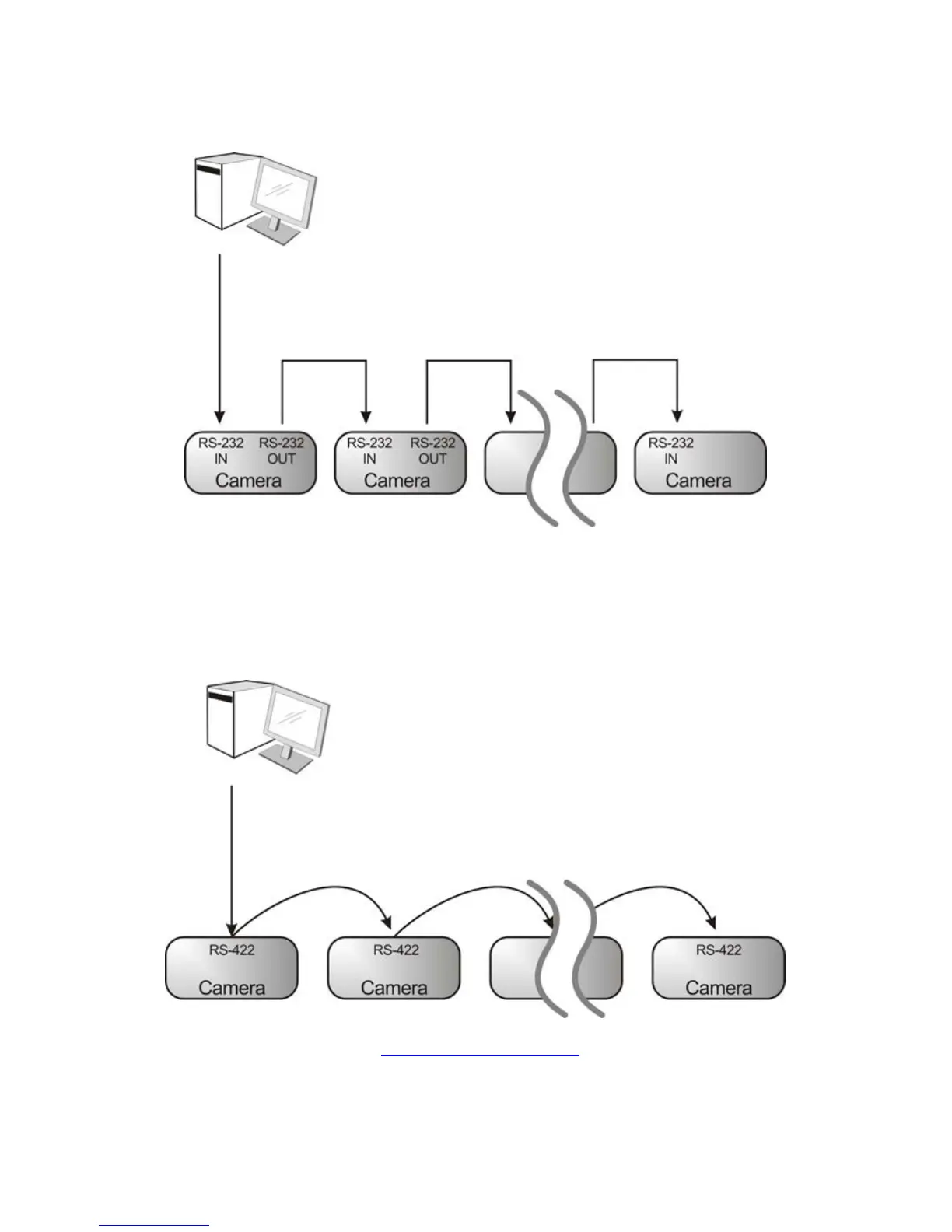

4.3.2 Controlling VCs with the computer
4.3.2.1 Connecting to one computer for connection between multiple cameras
(RS-232 input/output)
* With RS-232 in/out, at most 7 cameras can be connected.
4.3.2.2 Connecting to one computer for connection between cameras
(RS-422)
* Please refer to 7.2 RS-422 connection for the RS-422 connection
instructions.
* With RS-422, at most 7 cameras can be connected.
