Marshall Electronics 33

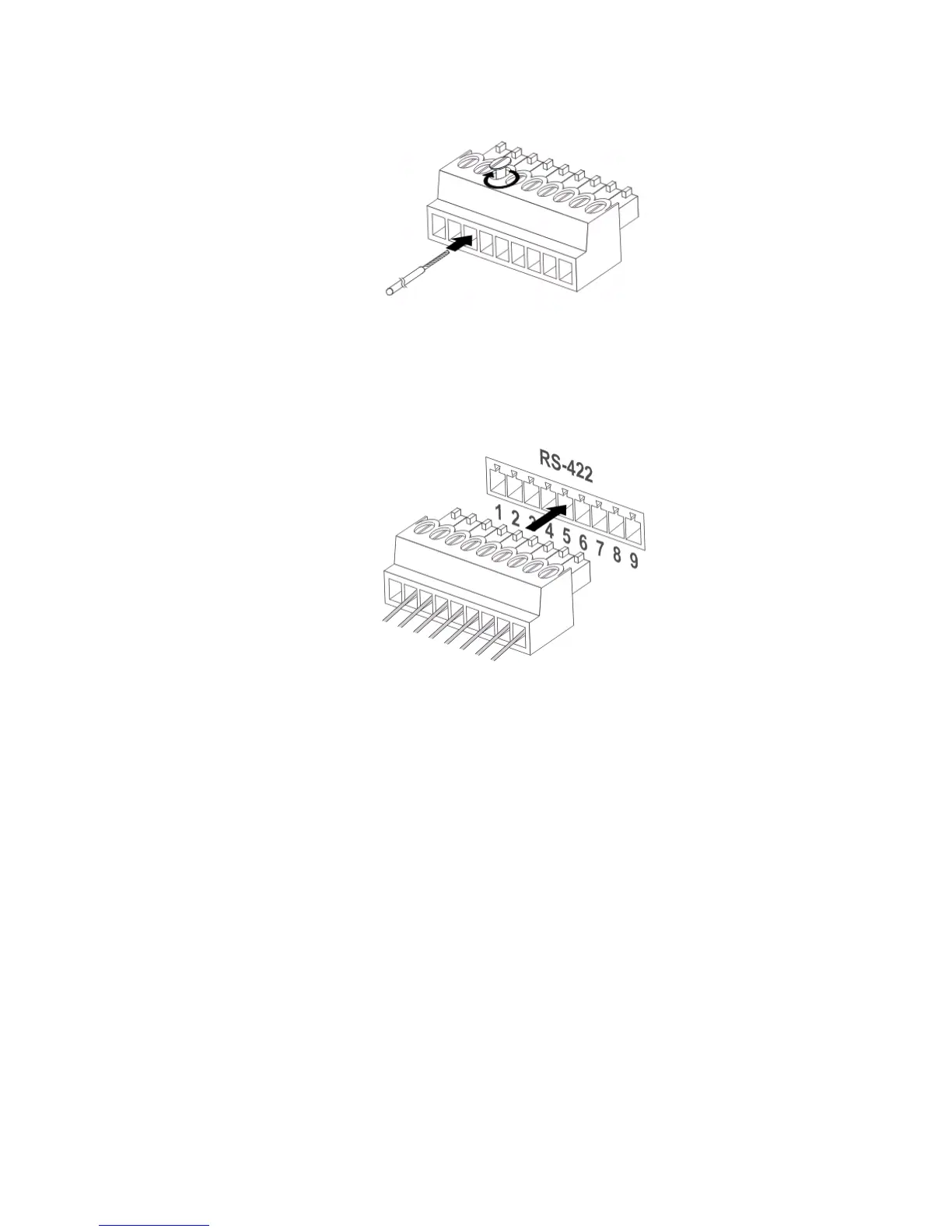

2. Peel off a section of copper wire (AWG Nos. 28 to 18) and insert it into the
connector hole; then use flat screw driver to fix it
3. Insert the wired RS-422 connector back to the camera.
The connection is now completed.
* When RS-422 connection is being used, do not use RS-232C
connection.
