14 MAC Encore™ Performance Safety and Installation Manual

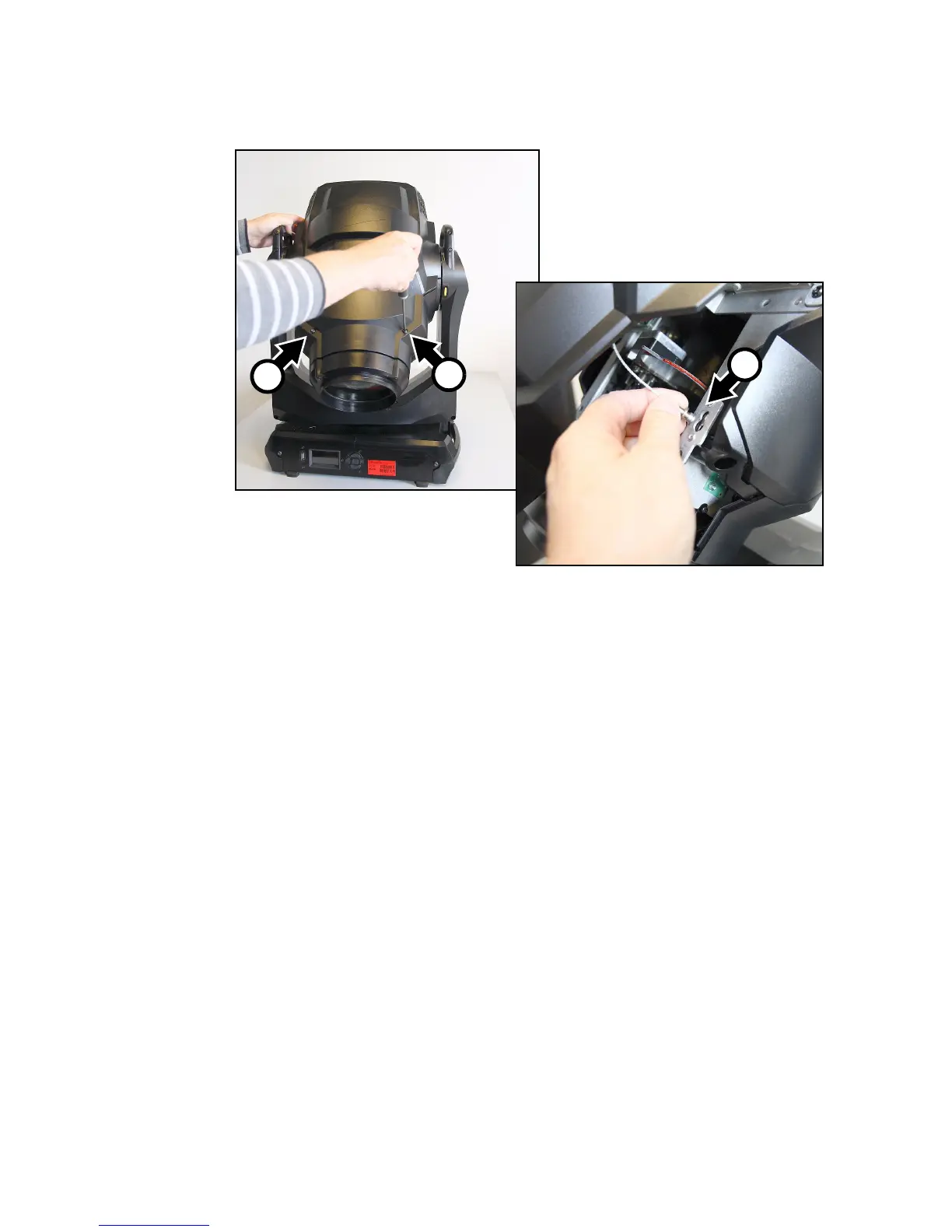

3. You can let the head cover hang on its safety wire, but for easiest access push the cover’s safety wire
retaining clip B in towards the head chassis, slide the clip until you can remove it, then remove the head
cover completely from the fixture.
4. For easiest access to the components inside the head, position the head at an angle with the front facing
downwards as shown in Figure 9, then apply the tilt lock.
To reinstall the top head cover:
1. See Figure 9. Hold the cover up to the head and fasten its safety wire retaining clip B into the head
chassis by pressing the clip through its hole and then sliding it until it is held securely.
2. Slide the rear of the cover towards the back of the head until its retaining clips locate, then swing the
front of the cover in towards the head and fully tighten the cover’s two Torx 25 retaining screws. Check
that the cover is securely fastened to the head.
3. Release the tilt lock before applying power or packing the MAC Encore™ Performance in its flightcase.
