6 MAC Encore Performance User Guide
Color wheel
The color wheel has six color filters that can be applied as split colors or in full-color steps. The color wheel
can also be scrolled continuously, applying the color filters in sequence with control of color wheel speed
and direction. Color filters can also be applied in random order at fast, medium or slow speed.
As standard, the MAC Encore Performance is supplied with the following color filters installed:
• Slot 1 - Blue 101 - P/N 5076512
• Slot 2 - Green 203 SP - P/N 5076513
• Slot 3 - Orange 311 SP - P/N 5076514
• Slot 4 - Magenta 522 SP - P/N 5076515
• Slot 5 - Congo Blue 108 SP - P/N 5076516
• Slot 6 - Red 310 SP - P/N 5076517
• Slot 7 - Open
Slot 6 - Red 310 SPSlot 1 - Blue 101 SP
Slot 5 - Congo Blue 108 SP
Open
Slot 4- Magenta 522 SPSlot 3 - Orange 311 SP
Slot 2 - Green 203 SP

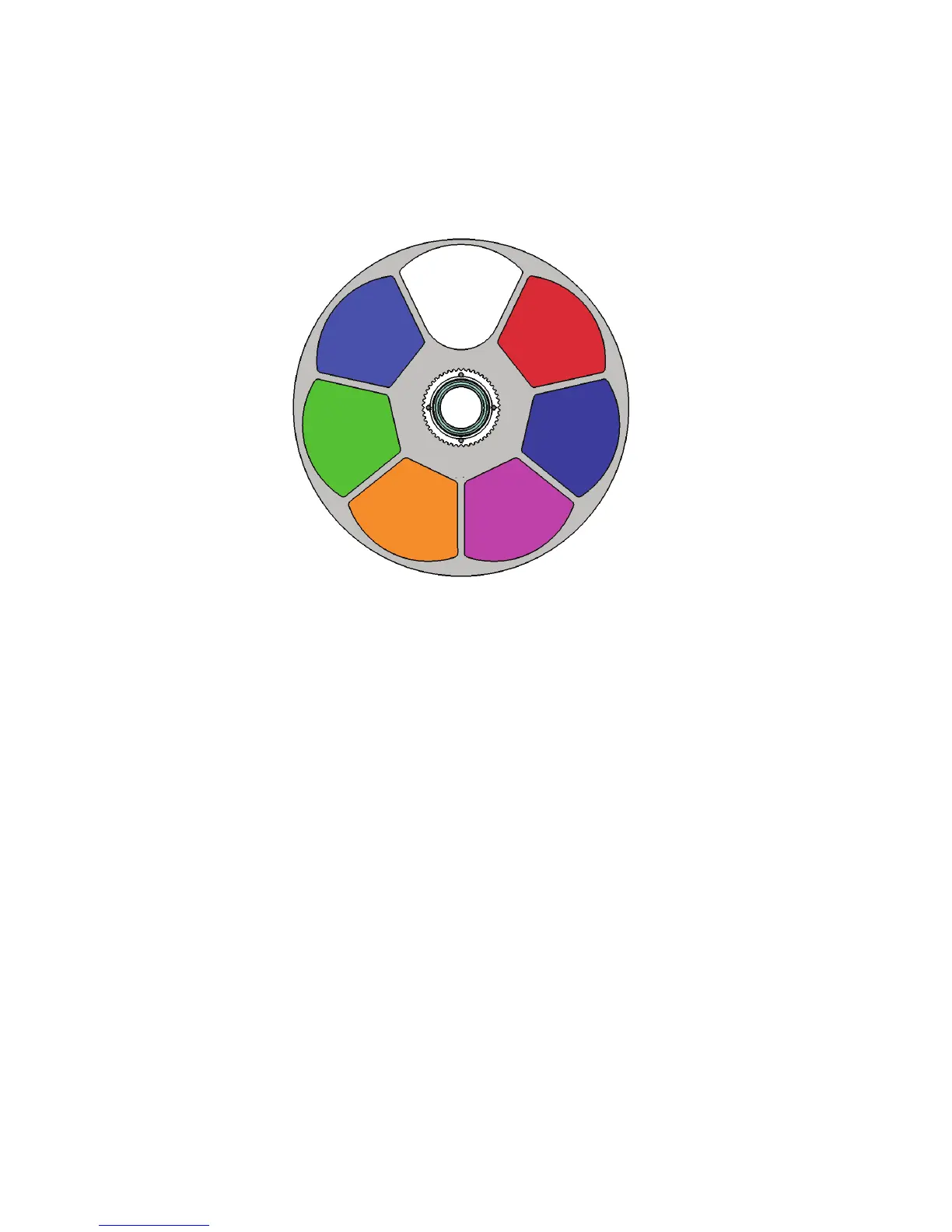

Figure 1: Color wheel
Color wheel seen from lamp side
