Service and maintenance 17
Replacing the static gobo wheel
To replace the static gobo wheel:
1. Remove the top head cover and remove the multi-module as described above.

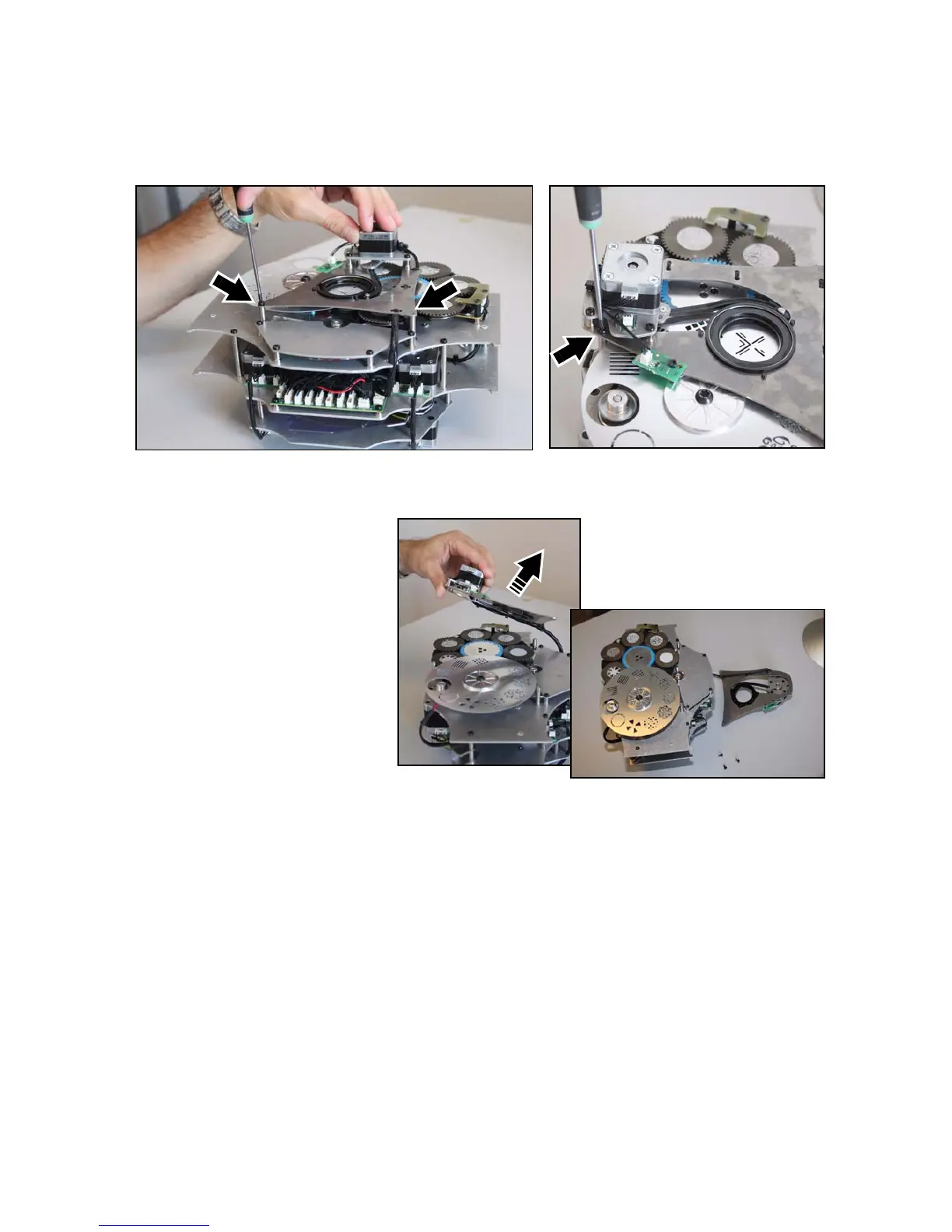

2. See Figure 14. Remove the three Torx 10 retaining screws (arrowed) from the iris unit.
3. See Figure 15. You do not
need to disconnect the iris
unit wireset. Lift the iris
unit off the multi-module
and place it beside the
module. You now have
access to the static gobo
wheel.
4. The static gobo wheel is delicate. Do not apply any pressure that might bend it. See Figure 16. Holding
the wheel with a finger through the open slot to prevent it rotating, remove the Torx 30 screw from the
