centre of the wheel and lift the alloy retaining disk off the wheel. You can now lift the static gobo wheel
off its mount.
5. See Figure 17. When installing a static gobo wheel, note the positions of the three alignment pins in the
alloy retaining disk A. The pins must line up with three holes in the gobo wheel B and three holes in the
gobo wheel mount C. The alignment pins ensure that the gobo wheel can only be mounted in the correct
position and facing in the correct direction.
6. When service work is finished, reinstall the multi-module and top head cover as described above.

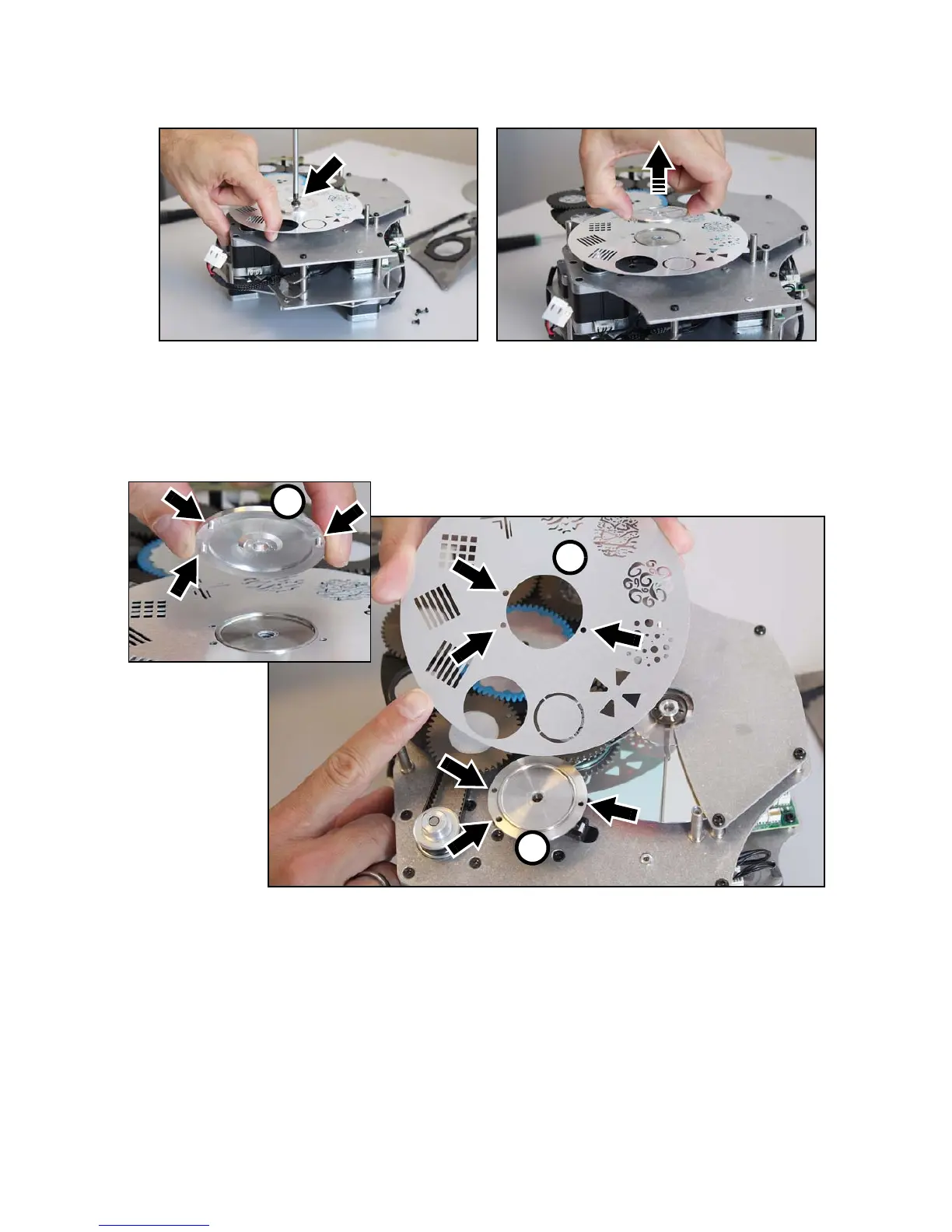

Figure 16: Releasing the static gobo wheel
Figure 17: Static gobo wheel alignment
A
B
C
