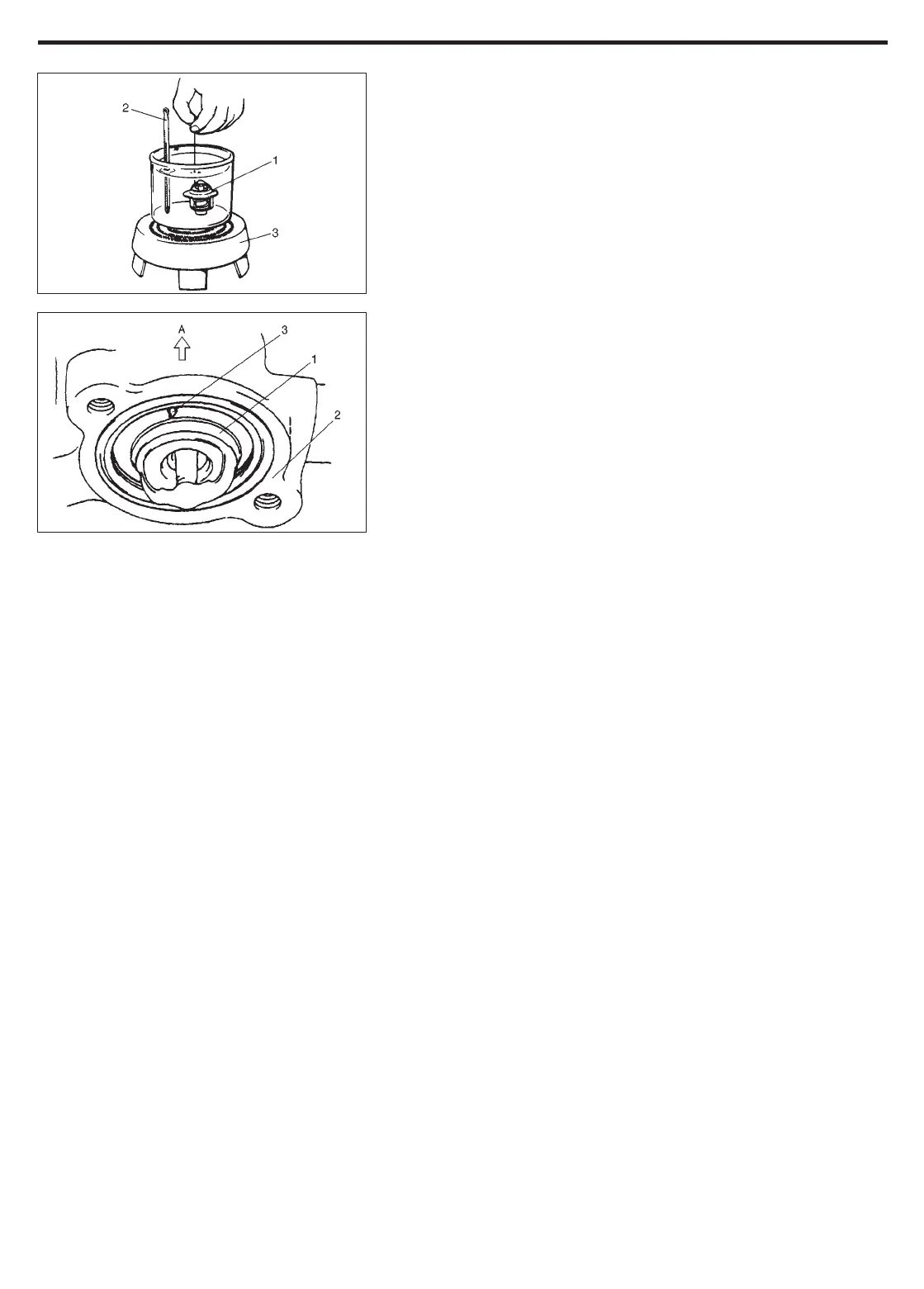

4) Check thermostatic movement of wax pellet as follows:
a) Immerse thermostat (1) in water, and heat water gradually.
b) Check that valve starts to open at specific temperature.
c) If valve starts to open at a temperature substantially below
or above specific temperature, thermostat unit should be re-
placed with a new one. Such a unit, if re-used, will bring
about overcooling or overheating tendency.
1. Thermostat
2. Thermometer
3. Heater
INSTALLATION
1) Install thermostat (1) on thermostat case (2) so that air bleed
valve (3) comes upmost and into the recession of thermostat
case.
2) Install thermostat cap to thermostat case aligning arrow marks
on cap and case.
A: Upside
WATER PUMP BELT
REMOVAL/INSTALLATION
Refer to GENERATOR (WATER PUMP) BELT in SECTION 6H.
WATER PUMP BELT TENSION INSPECTION AND
ADJUSTMENT
For this inspection or adjustment, refer to (GENERATOR WATER
PUMP) BELT in SECTION 6H.
6B-10 ENGINE COOLING
SH410
