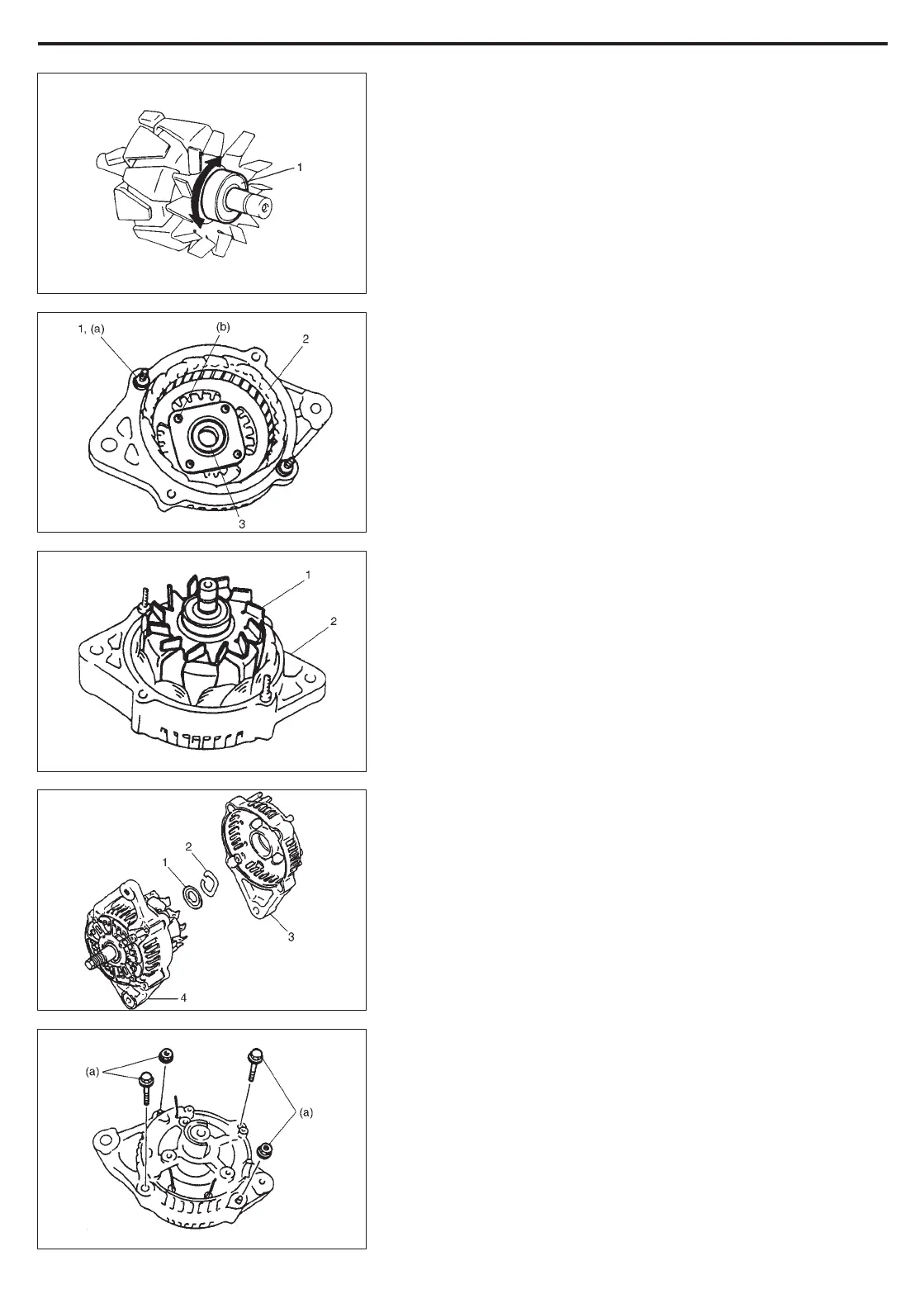

ASSEMBLY
1) If end housing bearing (1) is removed, install it.
2) Check end housing bearing turns smoothly.
3) If stator (2) is removed, install stator and tighten stud bolts (1).
4) If drive end bearing (3) is removed, install it.
5) Check drive end bearing turns smoothly.
Tightening Torque
(a): 8.8 N
.
m (0.88 kg-m, 6.5 lb-ft)
(b): 2.6 N
.
m (0.26 kg-m, 2.0 lb-ft)
6) Place space collar and drive end frame (2) on pulley, and then
install rotor (1) to drive end frame.
7) Install bearing cover (1), wave washer (2) and rear end frame
(3) to drive end frame (4).
8) Tighten bolts and nuts to specified torque.
Tightening Torque
(a): 4.5 N
.
m (0.45 kg-m, 3.5 lb-ft)
6H-20 CHARGING SYSTEM

SH410
