CRANKING SYSTEM 6G-3
SH410
STARTING MOTOR
Both of them consist of yoke assembly, armature assembly, over-running clutch assembly, magnetic switch assem-
bly, front housing, rear housing, brush holder and drive lever.
The magnetic switch assembly and parts in the starting motor are enclosed in the housings so that they will be
protected against possible dirt and water splash.

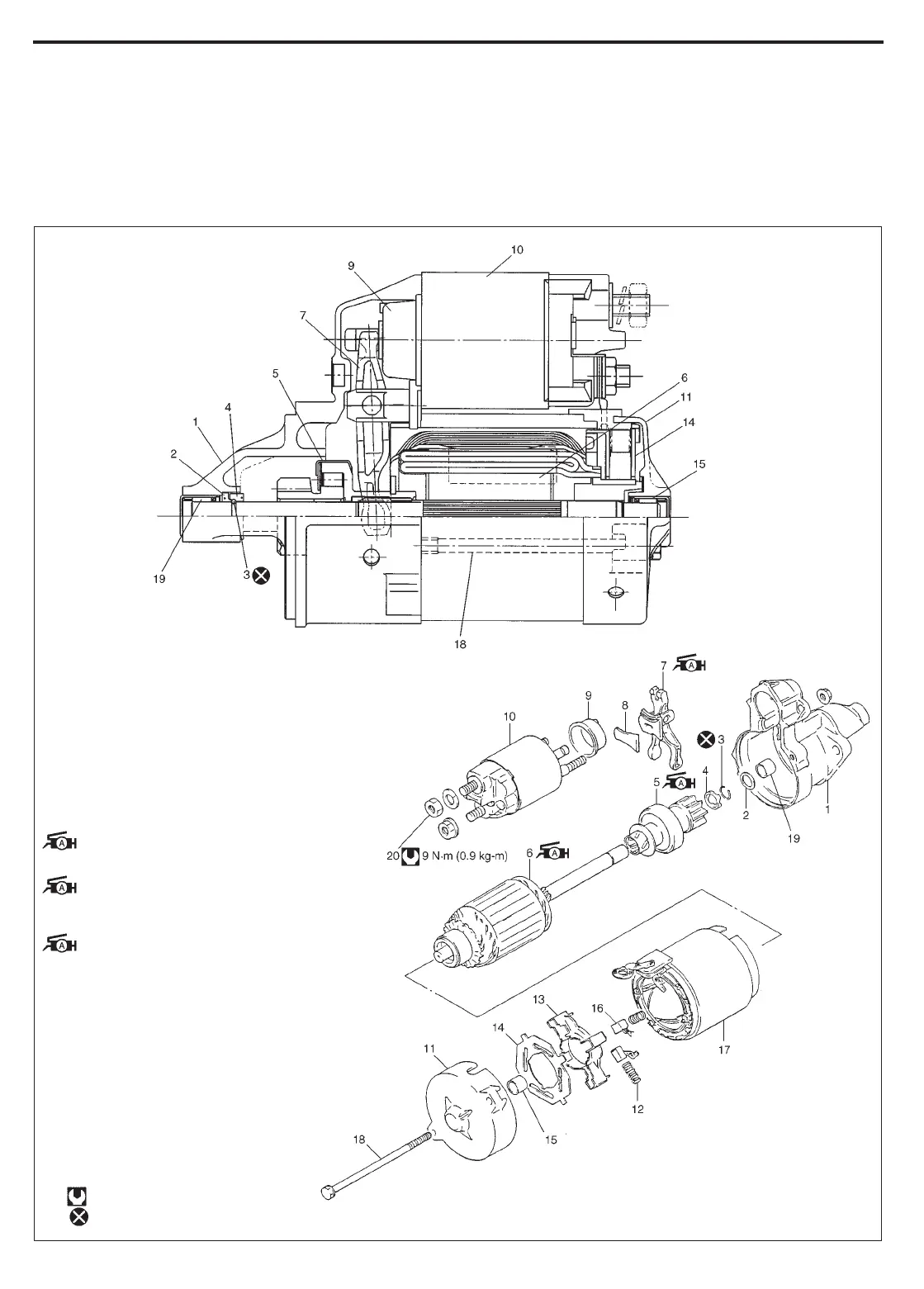

1. Drive housing assembly
2. Washer
3. Snap ring
4. Pinion stop ring
5. Over-running clutch assembly:
Apply grease A 99000-25010 to inside
and outside of spline.
6. Armature:
Apply grease A 99000-25010 to joint of
drive housing bush, over-running clutch
and armature shaft bush.
7. Pinion drive lever:
Apply grease A 99000-25010 to joint of
magnetic switch and over-running clutch.
8. Seal
9. Boot
10. Magnetic switch
11. Rear housing
12. Brush spring
13. Brush holder
14. Insulator
15. Rear housing bush
16. Brush
17. Yoke assembly
18. Housing bolt
19. Front housing bush
20. Nut
: Tightening Torque
: Do not reuse
