MAINTENANCE SERVICE
ENGINE
Drive Belt Inspection and Replacement
Water pump/generator belt inspection
1)Disconnect negative cable from battery.
WARNING:
Disconnect negative cable at battery before checking
and replacing belt.
2)Inspect belt for cracks, cuts, deformation, wear and cleanliness.
Replace if necessary.
3)Check belt for tension and adjust it as necessary.

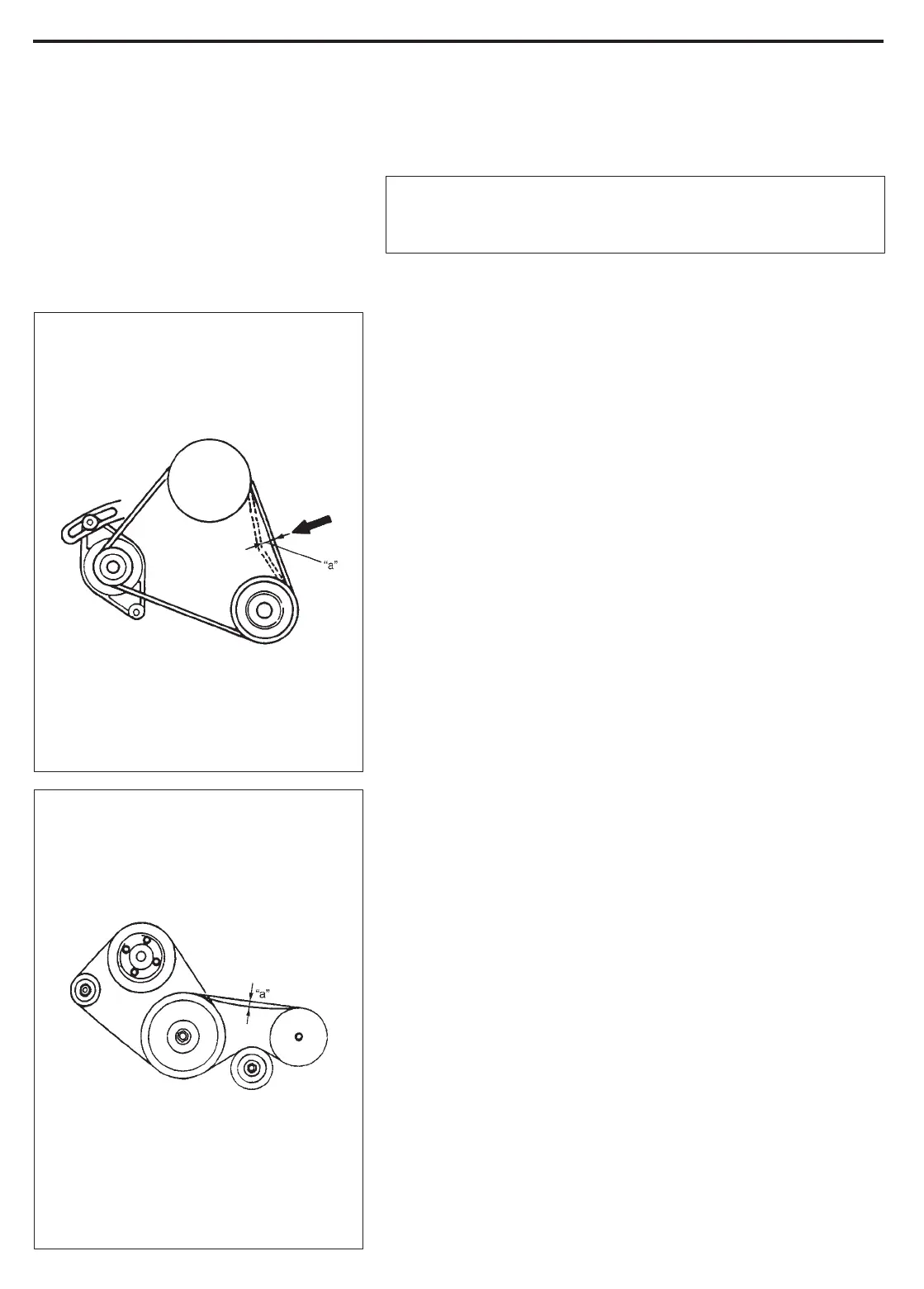

Water pump/generator belt tension “a”:
6 – 8 mm (0.24 – 0.32 in.) deflection under 100N, 10 kg or 22
lb pressure
NOTE:
When replacing belt with a new one, adjust belt tension to
5 – 6 mm (0.20 – 0.24 in.).
4)Connect negative cable to battery.
Water pump/generator belt replacement
Replace belt with new one. Refer to SECTION 6B for replacement
procedure of pump belt.
A/C compressor drive belt inspection (if equipped)
1)Disconnect negative cable from battery.
2)Inspect belt for wear, deterioration and tension.
Replace or adjust if necessary.
A/C compressor drive belt tension “a”:
8 – 10 mm (0.32 – 0.39 in.) deflection under 100N, 10 kg or
22 lb pressure
3)Connect negative cable to battery.
A/C compressor drive belt replacement
1)Disconnect negative cable from battery.
2)Loosen belt tension and replace belt with new one.
3)Adjust belt tension to specification referring to SECTION 1B.
4)Connect negative cable to battery.
MAINTENANCE AND LUBRICATION0B-5
SH410
