9
＿
WARNING
CAUTION
POTENTIAL HAZARD
・If the Brushcutter blade is not adequately tightened, it can come loose from the Brushcutter
during use.
WHAT CAN HAPPEN
・This may cause damage to property or personal injury.
HOW TO AVOID THE HAZARD
・Make sure the Brushcutter blade is securely fastened to the attaching shaft in the gearcase.
POTENTIAL HAZARD
・Brushcutter blade is sharp.
WHAT CAN HAPPEN
・Contact with sharp blade can cause personal injury.
HOW TO AVOID THE HAZARD
・Wear gloves when you handle the blade.

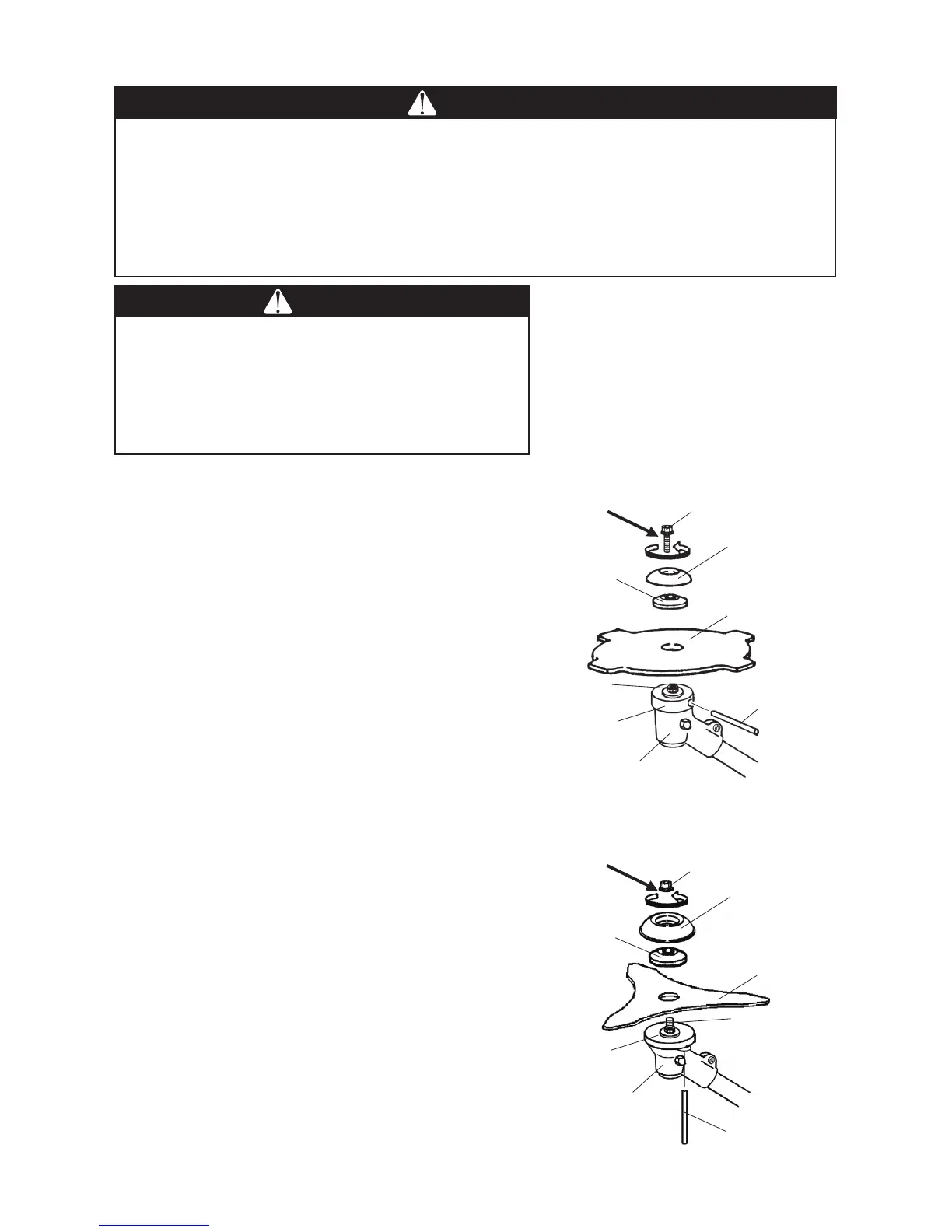

Brushcutter Blade
[Model BC2301RS, BC2601RS, BC3021RS]
1. Remove the blade bolt, stabilizer and clamping washer
from the attaching shaft out of the gearcase.
Note: The blade bolt has left-hand thread.
2.
Install the brushcutter blade onto the boss adapter,
then reinstall the clamping washer, stabilizer and
blade bolt.
3. Align the hole in the boss adapter with the guide slot
in the gearcase.
4. Insert the
Ø
3,5mm pin into the hole in the boss
adapter and the guide slot in the gearcase to lock the
attaching shaft.
5. Tighten the blade bolt.
6. Remove the
Ø
3,5mm pin from the boss adapter and
gearcase.
[Model BC4321H-RS]
1. Remove the blade nut, stabilizer and clamping washer
from the attaching shaft out of the gearcase.
Note: The blade nut has left-hand thread.
2. Install the brushcutter blade onto the boss adapter, then
reinstall the clamping washer, stabilizer and blade nut.
3. Align the hole in the boss adapter with the guide hole in
the gearcase.
4. Insert the
Ø
6mm pin into the hole in the boss adapter
and the hole in the gearcase to lock the attaching shaft.
5. Tighten the blade nut.
6. Remove the
Ø
6mm pin from the boss adapter and
gearcase.
[BC2301RS, BC2601RS, BC3021RS]
[BC4321H-RS]
Holding Tool
(Ø3,5mm Pin)
Gearcase
Left-hand
thread
Left-hand
thread
Brushcutter
Blade
Attaching
Shaft
Boss
Adapter
Blade Bolt
Blade Nut
Stabilizer
Stabilizer
Clamping
Washer
Clamping
Washer
Holding Tool
(Ø6mm Pin)
Gearcase
Attaching
Shaft
Boss
Adapter
Brushcutter
Blade
