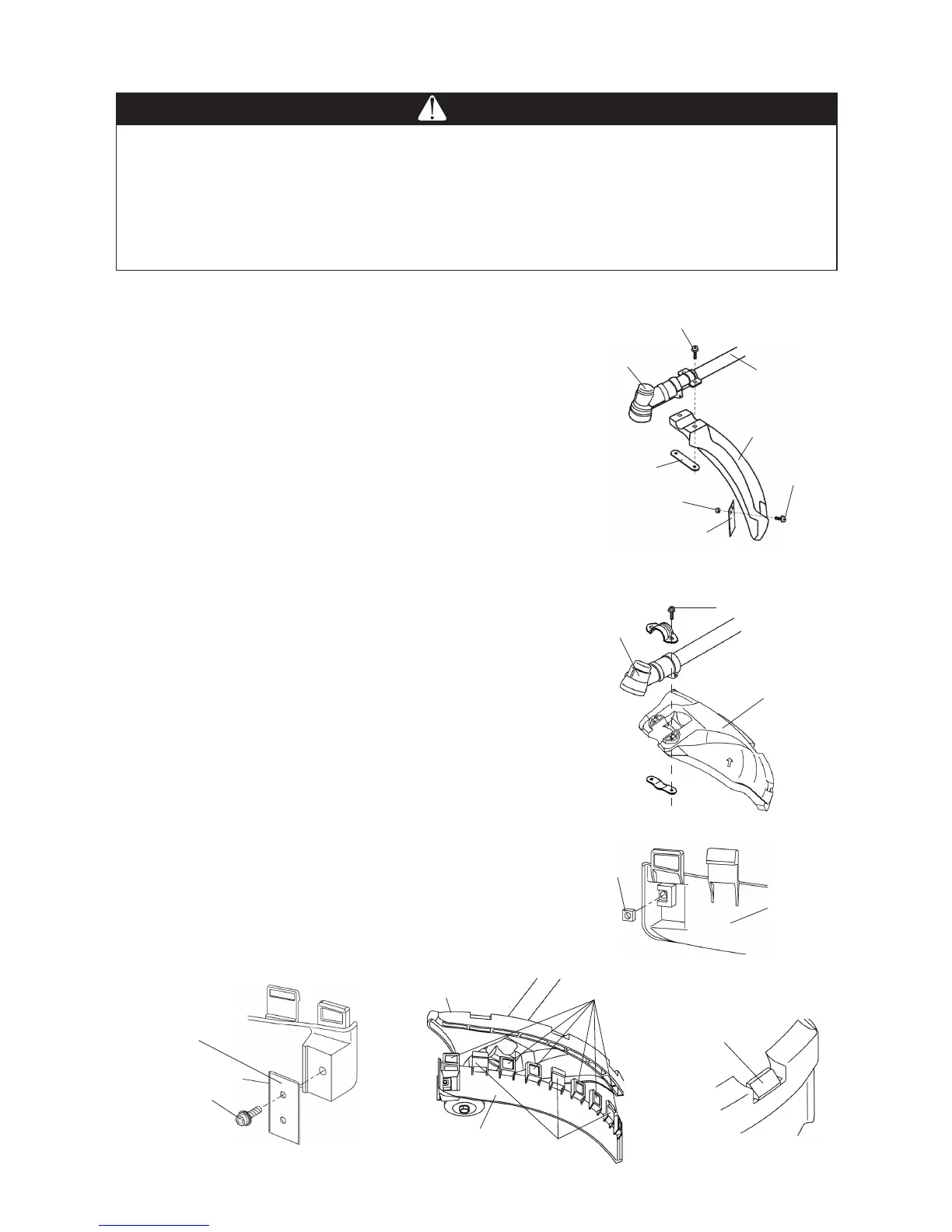

Maruyama BC2301RS - Assembly; Installing Guard

＿
7
＿
[Model BC4321H-RS]
Blade Guard
Attach the blade guard to the gearcase with the two
M6×30 screws as shown on Fig.1.
Trimmer Head Guard
(Install the string cutoff blade and guard extension to
the blade guard.)
1. Insert the square nut into guard extension as shown
on Fig. 2.
2. Attach the string cutoff blade to guard extension using
M5×20 Screw, locking with square nut (on Fig.2) as
shown on Fig. 3.
3. Enter the guide in the slot of blade guard on Fig. 4.
Make sure place the three hooks into the position on
the guard as shown on Fig. 5.
Installing Guard
[Model BC2301RS, BC2601RS, BC3021RS]
Trimmer Head Guard
1. Fasten the string cutoff blade to the trimmer head
guard with the two M5×12 screws as shown.
2. Attach the guard to the shaft assembly with the two
M5x30 screws and plate as shown.
POTENTIAL HAZARD
・Foreign objects can be thrown by Trimmer/ Brushcutter.
WHAT CAN HAPPEN
・Contact with thrown objects can cause personal injury.
HOW TO AVOID THE HAZARD
・Never operate the Trimmer/ Brushcutter without the guard in place.
WARNING
Fig.1
Fig.2
Fig.5
Fig.4
Fig.3
Guard
Extension
Square Nut
Blade Guard
String Cutoff
Blade
M5×20
Screw
Guard Extension
M6×30 Screw(2)
Gearcase
Hook
Hook
Guide
Blade Guard
M5×12
Screw(2)
M5×30 Screw(2)
Shaft
Assembly
Gearcase
String Cutoff Blade
Plate
Trimmer Head
Guard
Hex Nut (2)
