Connecting Throttle Cable and Stop Switch Wires
[Model BC3021RS, BC4321H-RS]

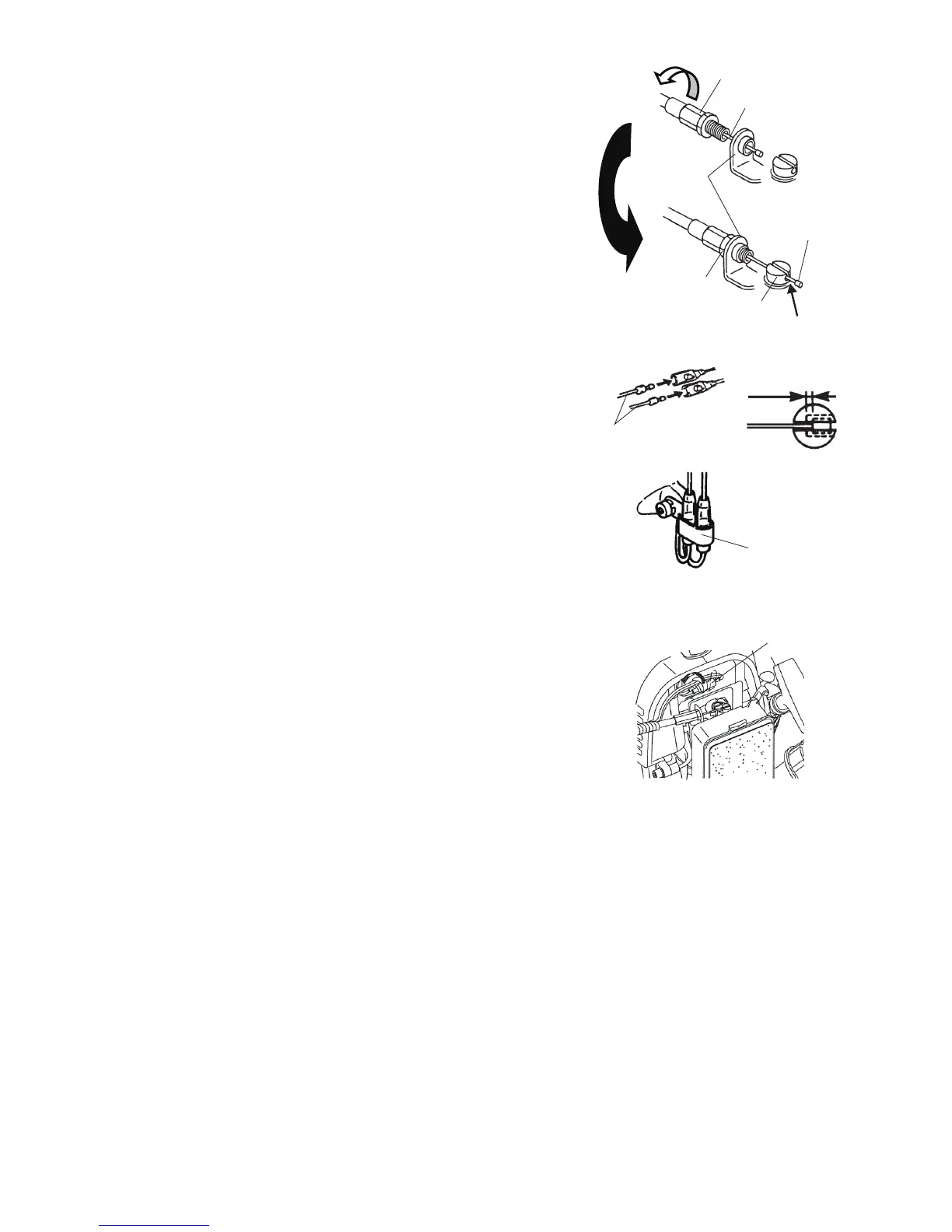

1. Insert the throttle cable through the carburetor bracket, then
screw a cable adjuster sleeve into the carburetor bracket fully.
2. Position the slotted tting on the carburetor so the recessed
hole for the cable lug is away from the cable adjuster sleeve.
3. Rotate the carburetor throttle cam and slip the throttle cable
through the slot in the slotted tting, making sure the cable lug
drops into the recessed hole.
4. Operate the throttle trigger a few times to make sure that it
works correctly.
5. Adjust the cable adjuster sleeve so the stop on the carburetor
throttle cam just contacts the throttle stop and the cable posi-
tion keep 1-2mm play between cable lug and slotted ttings
when the throttle trigger is fully depressed.
6. When the throttle cable is adjusted correctly, tighten the lock-
nut.
7. Plug the stop switch wires into the matching connectors from
the engine. Note that wire polarity is not important.
8. Lap and x the stop switch wires and connectors with clamp.
To Next Page
