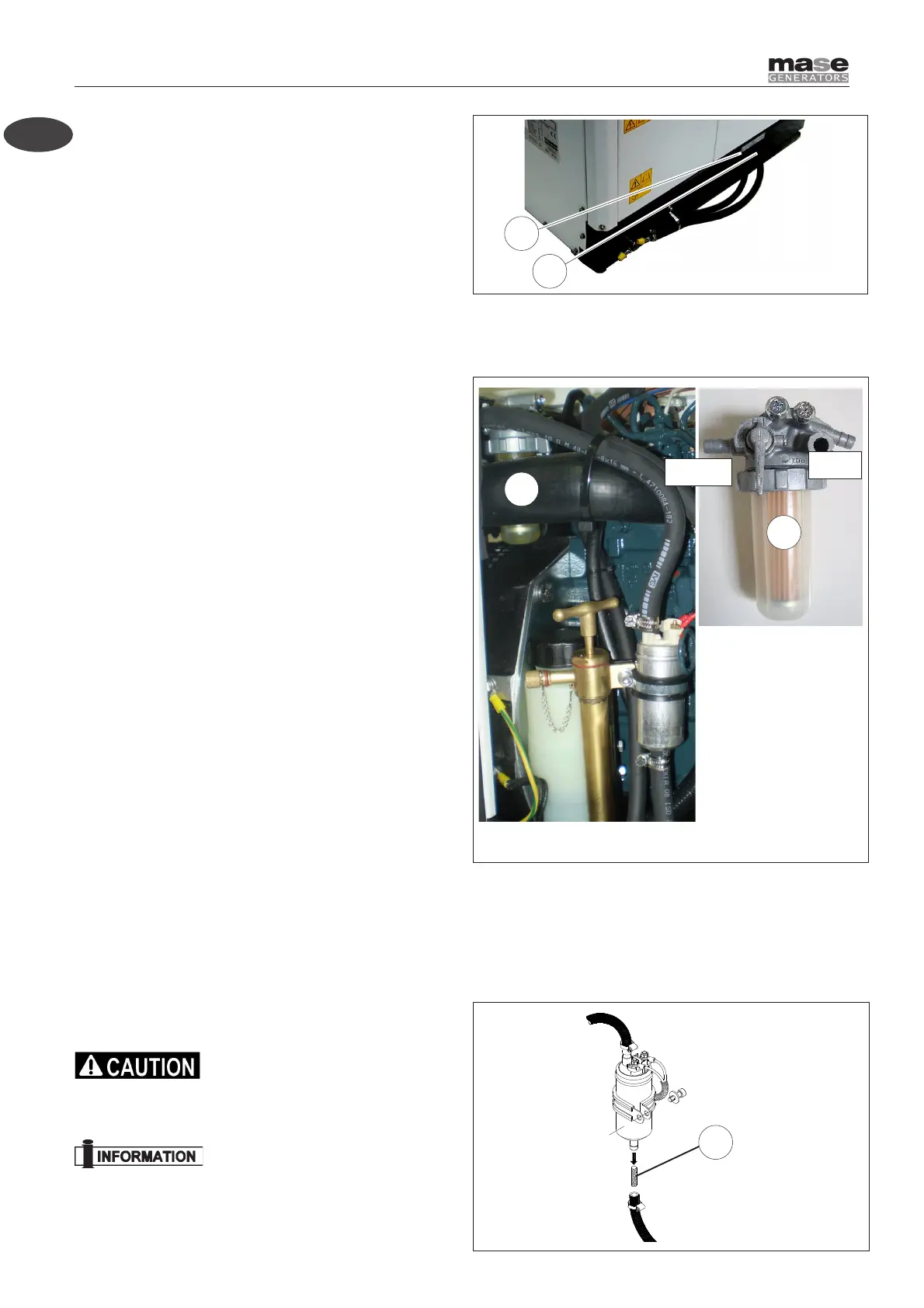

3.6 FUEL CIRCUIT
The generator is diesel-powered by means of the
unions marked "DIESEL FUEL INLET" (rif.1) e
"DIESEL FUEL OUTLET" (rif.2).
The latter serves to return excess fuel.
The fuel pipes must be in hydrocarbon-resistant rubber
with an inside diameter of 8mm (0.31in).
For differences in level of more than 500mm (19.6in), fit
a single-acting check valve in order to prevent the fuel
system from emptying out.
Use a valve with 50mbar opening.
3.6.1 FUEL FILTER
The generating group is provided of fuel filter installed
inside the genset (ref.3).
3.6.2 ELECTRIC PUMP
The electric pump is equipped with a protective filter
(ref.5).
The electric pump is cooled and lubricated with the
fuel. Do not activate the pump without fuel
in order not to damage it.
The generator is equipped with an automatic fuel
bleed valve.
Should manual bleeding be necessary, press the
ON button on the control panel and wait 30
seconds before starting the generator.
INPUT
OUTPUT
