10 Masport F33-1 Freestanding Gas Stove
INSTALLATION

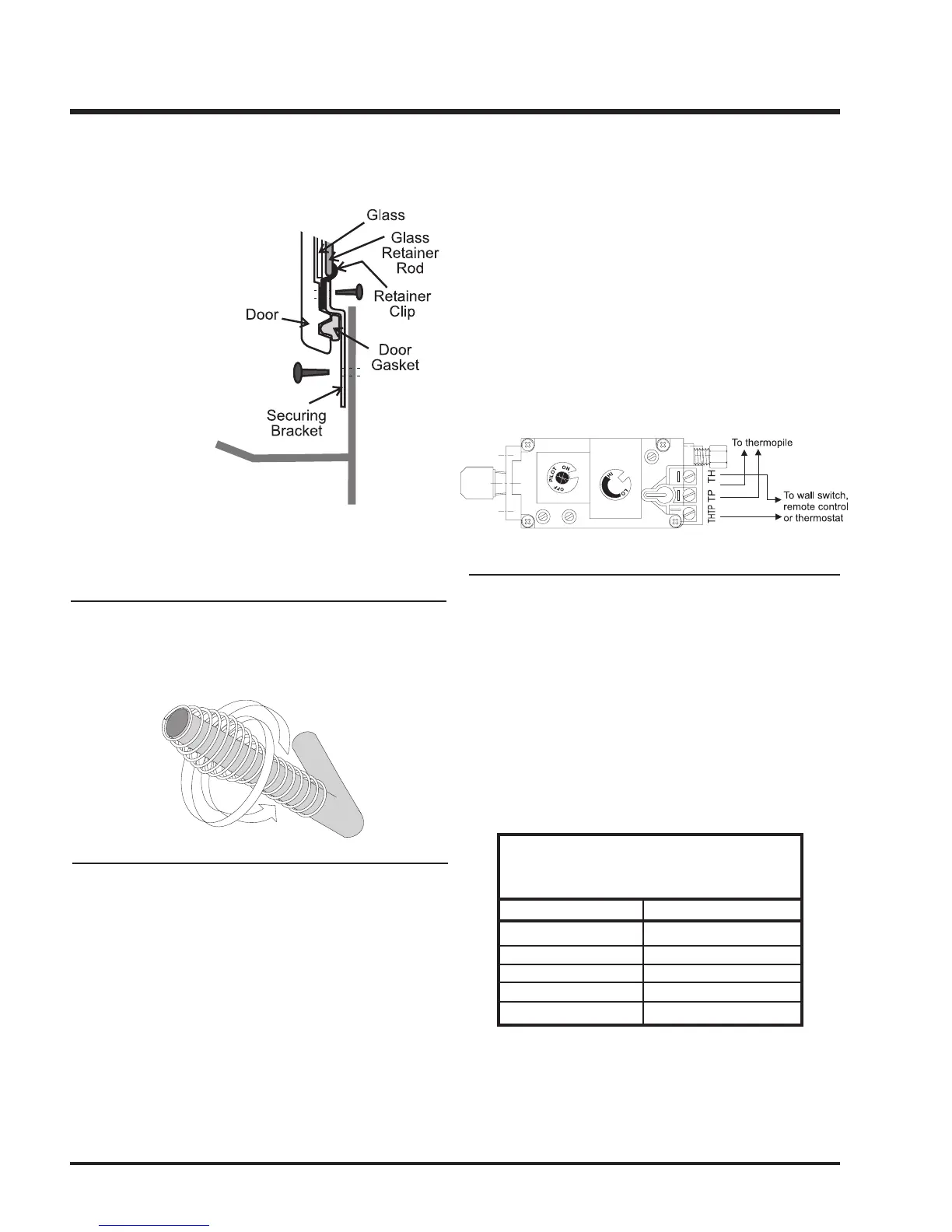

Note: The door must be kept closed at all times, except
during maintenance. The unit must never be oper-
ated without the glass in the door, or with the door
open.
DOOR HANDLE
Attach spring handle by rotating counter clockwise onto rod.
Ensure that the spring fits into the entire length of the rod.
OPTIONAL REMOTE WALL SWITCH
1) Run wire through the opening in the rear of the unit. Be
careful not to damage wire.
Note: We recommend a maximum of 4.5m of wire but if
you wish to go with a longer run use the Thermostat
Wire Table.
2) Connect wire to wall switch and install into receptacle box.
Caution:
Do not wire millivolt wall switch for gas appliance to
a 240V power supply.
OPTIONAL REMOTE CONTROL
INSTALLATION
Use the Optional Masport Remote Control Kit approved for this
unit. Use of other systems may void your warranty.
The remote control kit comes with a hand held transmitter, a
receiver and a wall mounting plate.
1) Choose a convenient location on the wall to install the
receiver and the receptacle box (protection from extreme
heat is very important). Run wires from the fireplace to that
location. Use Thermostat Wire Table.
2) Connect the two wires to the gas valve. See diagram below.
SAFETY LATCH
Secure door in the closed position using the door securing
bracket and the screw provided.
Thermostat Wire Table
14 GA.
16 GA.
18 GA.
20 GA.
22 GA.
15.24 m
9.75 m
6.10 m
3.66 m
2.71 m
Recommended Maximum Lead Length
(Two-Wire) When Using Wall
Thermostat (CP-2 System)
Wire Size Max. Length
Note: Door securing
bracket is there
for safety.
OPTIONAL WALL THERMOSTAT
INSTALLATION
A wall thermostat may be installed if desired.
Note: Preferable if the thermostat is installed on an inte-
rior wall.
Use a CSA, UCL or UL approved millivolt thermostat, 250-750
millivolt rated. A non-anticipator type thermostat must be used.
