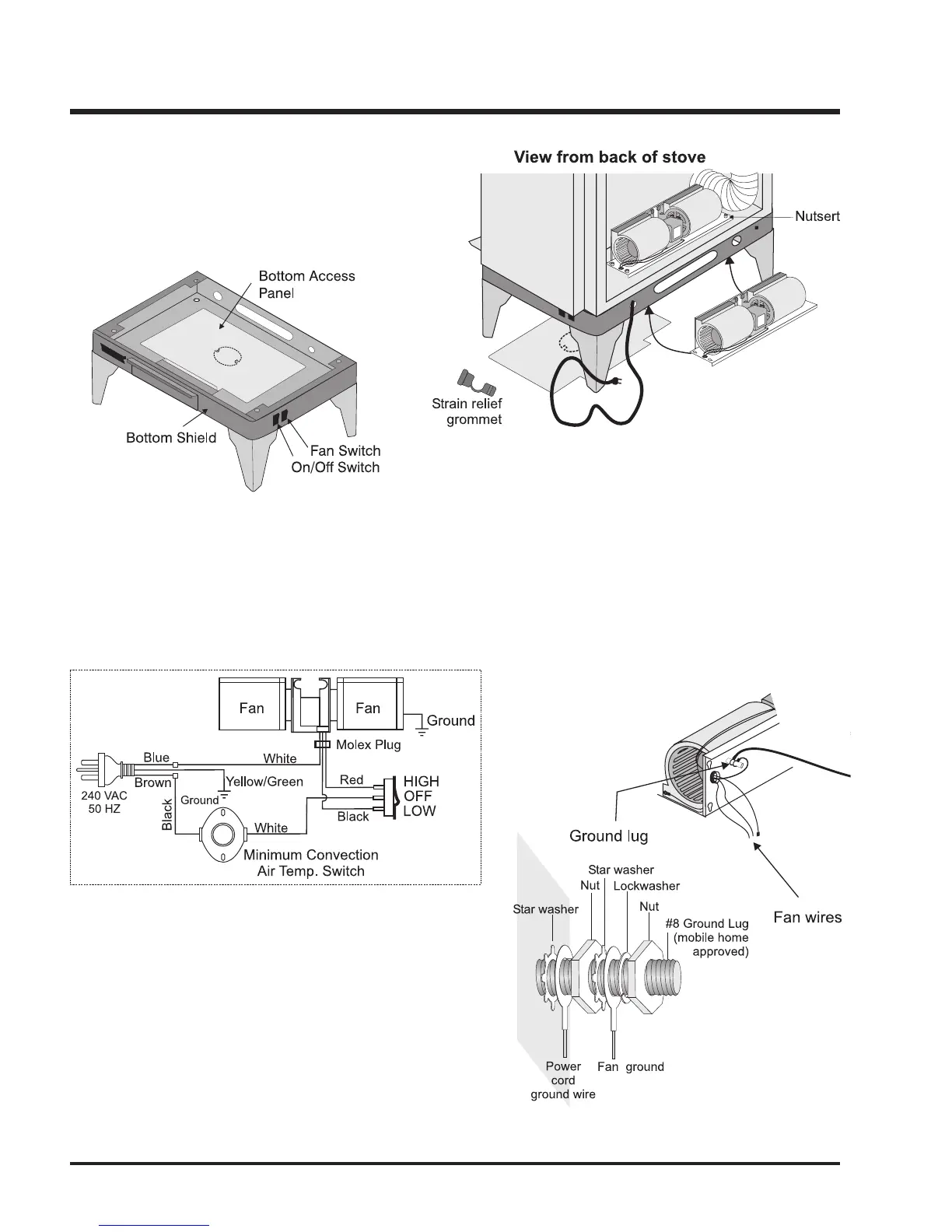

18 Masport F33-1 Freestanding Gas Stove
MAINTENANCE
Wiring Diagram
Diagram 3: Ground Lug
FAN REPLACEMENT
1) Disconnect power to fan.
2) Remove 7 screw under the bottom shield to remove the
bottom access panel. See diagram 1.
Diagram 1
4) Loosen the four 8-32 x 1/2 screws provided into the nutserts as
shown in diagram 3. NOTE: Make sure the fan is supported
as it may fall when the 4 screws are loosened.
5) Disconnect the 2 ground wires (green and yellow/green
striped) to the ground lug as per diagram 2.
Note: Ground lug is located on the bottom of the fan
assembly. See diagram 3.
3) Disconnect the molex plug (from inside the stove).
Note: The #8 ground lug is a dedicated ground for mobile
home use only.
Diagram 2
