8 Masport F33-1 Freestanding Gas Stove
INSTALLATION

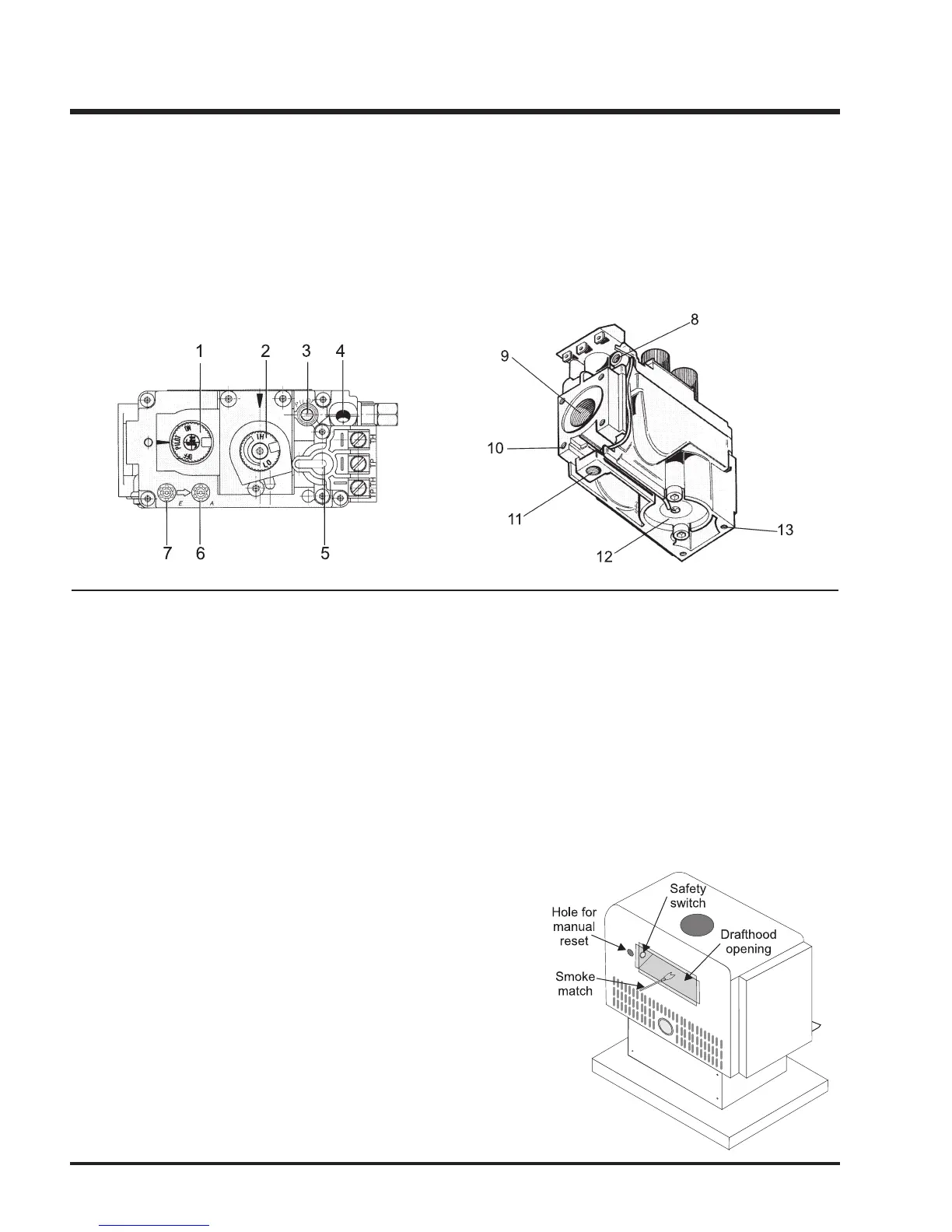

1) Gas cock knob
2) Manual high/low adjustment
3) Pilot Adjustment
4) Thermocouple Connection
5) Main Operator
6) Outlet Pressure Tap
7) Inlet Pressure Tap
8) Pilot Outlet
VALVE DESCRIPTION
9) Main Gas Outlet
10) Flange Securing Screw Holes
11) Alternative TC Connection Point
12) Thermoelectric Unit
13) Additional Valve Mounting Hole
TEST FOR FLUE SPILLAGE
This heater must be properly connected to a flue system.
WARNING: Operation of this heater when not connected to a properly installed and maintained flue system or tampering
with the flue safety shutoff system can result in carbon monoxide (CO) poisoning and possible death.
A “spillage” test must be made before the installed unit is left with the customer. Follow the procedure below:
1) Start all exhaust fans in the home and then close all doors and windows in the room.
2) Light the unit and set controls to maximum.
3) After five minutes, test that there is a “pull” on the flue by placing a smoke match, cigarette or similar device which gives off
smoke, on the edge of the draft hood. See Diagram below.
The smoke should be drawn into the draft hood. If the smoke is still not drawn
into the draft hood, turn the unit off and check for the cause of the lack of draft
and recfify before proceeding.
Note: If the flue is blocked or has a strong reverse flow, the thermally
actuated safety switch mounted in the draft hood will automatical-
ly shut off the gas supply in less than 10 minutes. If the heater
turns off because of this during the spillage test, check for the
cause of the lack of draft and rectify before proceeding.
To reset the thermally actuated safety switch, let the unit cool for
10 minutes, then press the red reset button on the back of the
switch. See Diagram.
