16 Masport F33-1 Freestanding Gas Stove
MAINTENANCE
REMOVING VALVE ASSEMBLY
1) Shut off gas supply.
2) If optional fan is installed, disconnect power source to
stove.
3) Remove access panel from bottom of leg shield.
Note: Access panel only has to be loosened to be taken out.
AERATION ADJUSTMENT
The burner aeration is factory set. Adjustment may be needed
due to the local gas supply or altitude. As a general rule if the flame
is too yellow open up the air shutter, if it is too blue close the air
shutter.
Natural Gas 11 mm
Propane wide open
Note: This adjustment only to be made by an authorised
person.
PILOT ADJUSTMENT

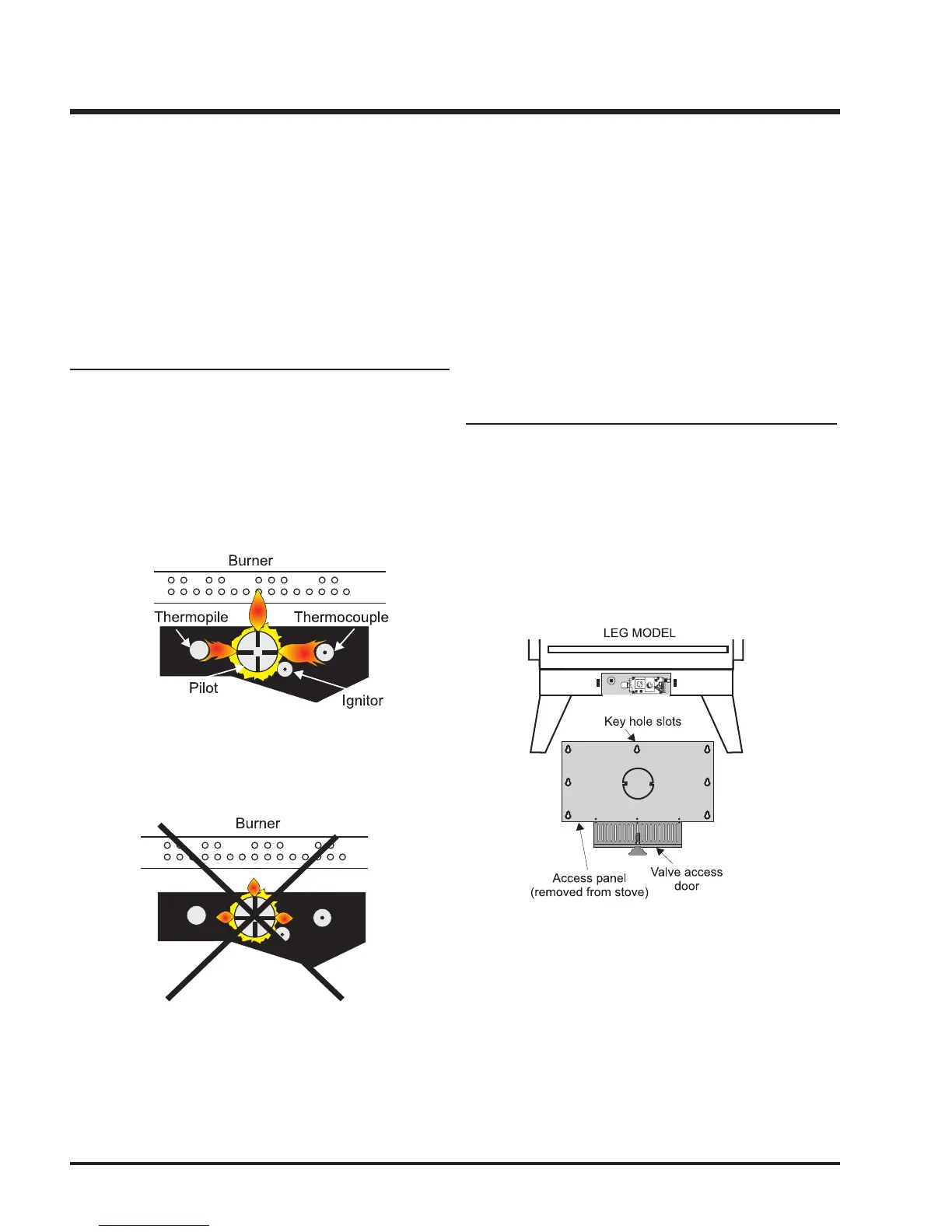

Periodically check the pilot flames. Correct flame pattern
has three strong blue flames: 1 flowing around the thermo-
pile, 1 around the thermocouple and 1 flowing across the
burner (it does not have to be touching the burner).
Note: If you have an incorrect flame pattern, contact your
Masport dealer for further instructions.
Incorrect flame pattern will have small, probably yellow
flames, not coming into proper contact with the rear burner
or thermopile or thermocouple.
Top View of pilot flame
Top View of pilot flame
THERMOPILE/THERMOCOUPLE
REPLACEMENT
1) Loosen the thermocouple or thermopile with a 9mm span-
ner at bracket.
2) Disconnect thermocouple by loosening nut from the valve
with a 9mm spanner. Disconnect thermopile by loosening
2 screws marked TP on the valve.
3) Drop the thermocouple or thermopile down from the brack-
et and pull it out of the unit.
4) Reinstall the new ones in reverse order.
4) Disconnect gas line to stove.
5) Disconnect 3/8" NPT pipe from 90
o
elbow on valve.
6) Disconnect the two (2) switch wires from valve.
7) Remove two (2) orifice bracket screws inside firebox.
8) Remove thermodisc to bracket by removing three (3) phillips
head M5 screws.
9) Remove front cover with Piezo Igniter by removing two (2)
sheet metal screws.
To Next Page
