Masport Inbuilt Gas Fireplace - 17 -
8) Unplug the fan lead from the plug on the control
box (EIS models). On Piccolo models the mains
lead will need withdrawing with the fan or unplug
the individual wires.
9) On EIS models remove the screws holding the
thermodisc bracket or disconnect the two push on
connectors at the thermodisc.
10) On Piccolo models, disconnect the wires at the
earthing post on the rear wall just above the fan
motor.
11) Lift and withdraw the fan assembly from its
mounting pins on the base of the fire. The fan will
come out through the access panel.
12) Reassemble in the reverse order.
NG to LP Conversion (EIS Models):
This conversion must be carried out by a qualified
Technician. If in doubt do not attempt this
conversion!
1) Turn the unit off.
2) Unplug or disconnect the power source to the fire.
3) Remove the glass front (see page 11).
4) Remove the logs (see page 12).

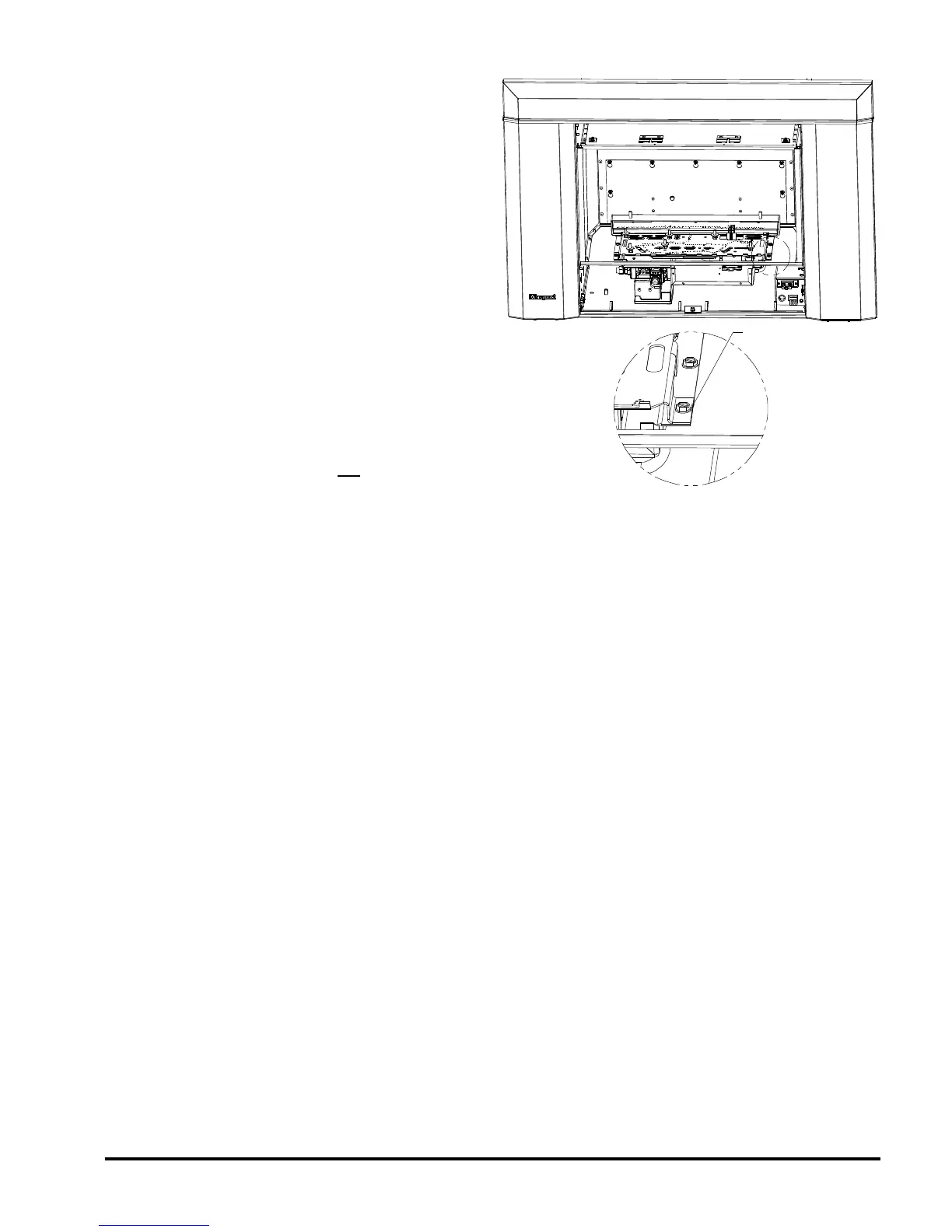

5) Remove the 2 screws holding the burner assembly
to the burner tray as below. Push the burner to the
left and lift out.
6) Access is now available to the brass main injector.
A 13mm spanner will be required to remove the
injector, the elbow behind the injector will also
need to be held to avoid twisting the pipe work.
Remove the main injector and discard.
7) Reinstall the new LP injector marked “1.7” and
tighten. Again avoid twisting the pipe work.
8) Reinstall the burner. Ensure that the aeration
shutter on the burner is fully open.
9) Reverse steps 4), 3) & 2).
10) Check for gas leaks.
11) Reset high and low pressures refer to page 12.
12) Check operation at high and low settings.
CLEANING INSTRUCTIONS
The outside of the fascia and glass should need no
more than an occasional wipe with a damp cloth to
remove any dust which may have settled.
All gas appliances incorporating a live fuel effect and
designed to operate with luminous flames may exhibit
carbon deposition, particularly if the combustion air
entry slots under the heater are obstructed or the
aeration air inlets are clogged with lint. Any other
lifting, floating or lighting back should be checked by a
recognised Masport gas fire Technician.
After a period of time the inside of the glass may
require cleaning. To do this, carefully remove the glass
(See Glass Removal and Assembly, page 11), and
clean the inside surface with a non-abrasive cloth and
a non-scratching type household cleaning liquid.
Replace the parts as detailed on page 11, keeping
fingerprints off the inside glass surfaces.
No other user maintenance should be necessary. If you
require any other service or adjustments, contact your
Technician or Dealer.
