Masport SOFIA - EIS WIRING DIAGRAMS; EIS Schematic Electrical Layout

Masport Inbuilt Gas Fires - 20 - 19/11/04

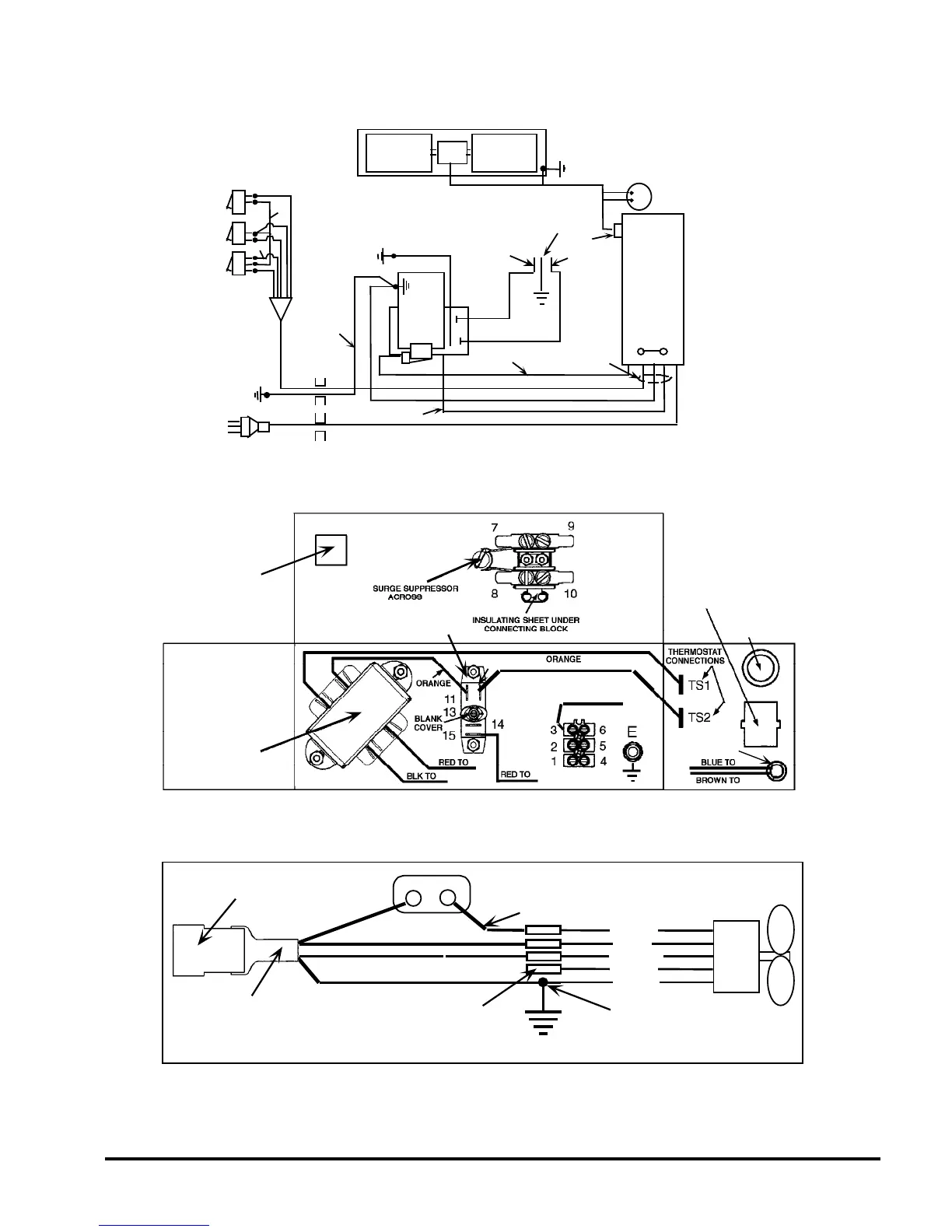

EIS WIRING DIAGRAMS
VALVE
FLAME SENSOR
SPARK
ELECTRODE
FAN
THERMODISC
EARTH
ELECTRODE
FASCIA
EARTH
WIRE
CONTROL
BOX
THERMO-
STAT LINK
EIS SCHEMATIC ELECTRICAL LAYOUT
CONTROL
PANEL
MAINS IN
9 PIN PLUG
MODULATOR
LEAD
6 PIN PLUG
Blue
Yel
Vi
Red
Blk
Blk
VALVE LEAD
FIRE
OFF/ON
FIRE
LO/HI
FAN
LO/OFF/HI
EIS SCHEMATIC ELECTRICAL LAYOUT
TO MODULATOR
EIS WIRING DIAGRAM
REPLACEMENT
MAINS LEAD
PART No 588068
TRANSFORMER
RELAY
8
1
9
7 & 8
12
ORANGE
BLUE TO 8
NINE PIN SOCKET:
RED TO 6 PIN SOCKET
WH TO 6 PIN SOCKET
BLUE (FORK) TO 10
BRN (6.3 REC.) TO 7
BRN (
4.8
REC.) TO
14
BRN (STRIPPED) TO 2
RED (STRIPPED) TO 4
Y/GN (X2) TO E
MAINS IN:
BRN TO 9
BLU TO 10
Y/GN TO E
6
5
SIX PIN SOCKET:
RED TO 9 PIN SOCKET
WH TO 9 PIN SOCKET
BROWN TO
8
Y/GN TO E
BLACK
WHITE
BLUE
GREEN
FAN
EARTH POST
(Fan Mount)
RED
YEL/GN
COVER
RED (High)
WHITE (Med)
THERMODISC
BLACK - PART No 590284
BROWN
ADAPTOR LOOM - Part No 590279
SIX PIN PLUG
EIS FAN WIRING DIAGRAM
WHITE
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent
or a similarly qualified person to avoid a hazard.
