Mastech MS2205 User Manual

23
to PC.
4.This software can be used for managing real-time
data records, plotting, and printing output, etc..
RS232-C
INTERFACE
OPTICAL
600V
MAX
~
3
RS232OPTICAL INTERFACE
计算机
PC COM

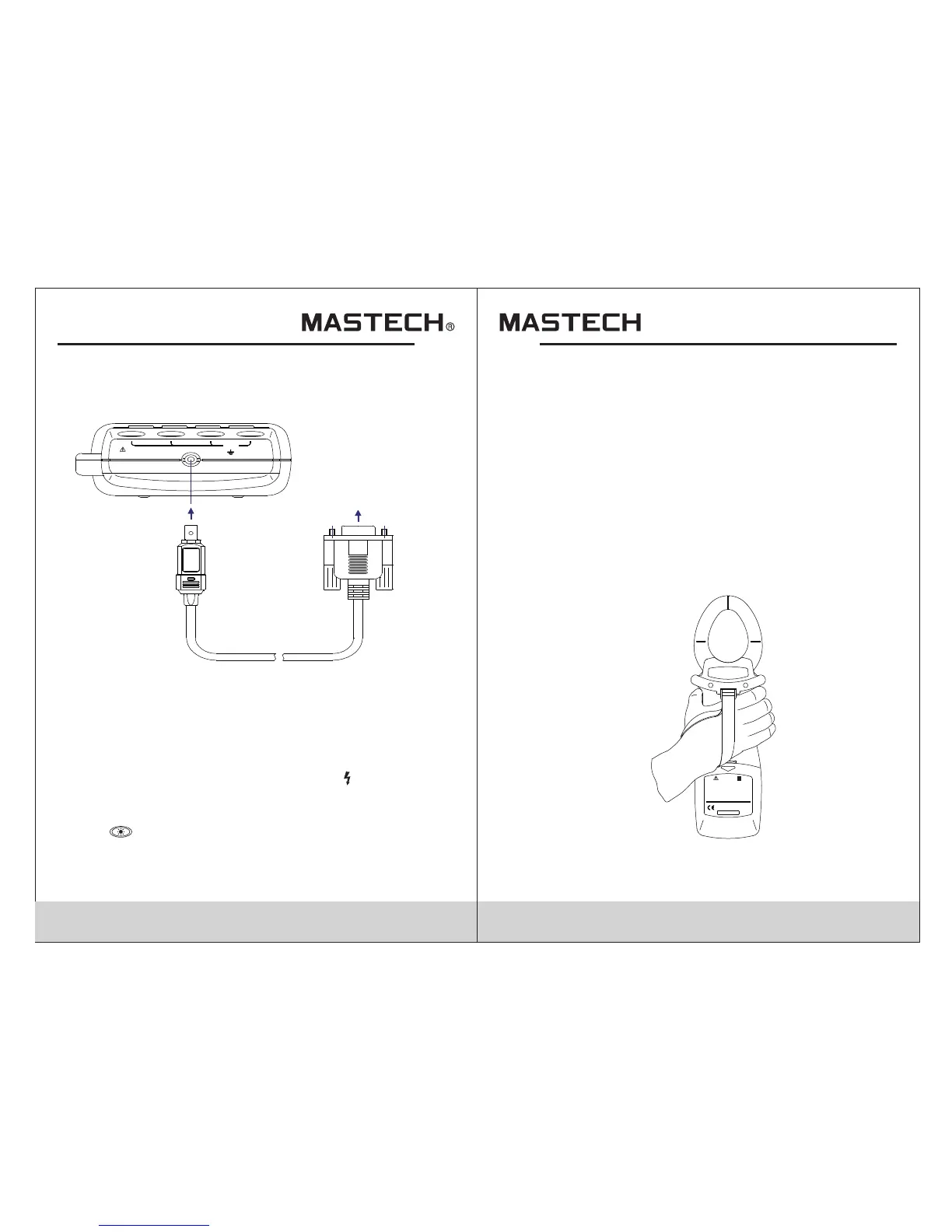

(RS232C connection diagram)
Input Voltage and Current
During power measurement, if input voltage is over
600 V (RMS) or current over 1000 A (RMS), “OL”
symbol will be displayed and bar symbol shown in full
scale. When input voltage is over 50 V, “ ” sign will be
shown on LCD, prompting you to pay attention to safety.
Backlight Display
Press
, the backlight will be lit up, and it will then be
automatically turned off after about 20 seconds.
Auto Power Off
24
1.If there is no function change or button press fo 10
minutes ,the meter will automatically turn power off ,
When the meter is automatically powered off, be sure
to switch the knob to “OFF” position; turn on the meter
after 5 seconds.
2.Holding the button SET&CLEAR down while turning
the meter on,Disables automatic power -off
3.automatically powered off function will be disabled
while the meter in MAX/MIN Record mode and the
meter performing communicate with PC software
Diagram of Safe Holding
using wrist belt can prevent unintended dropping of the
meter.
IEC1010-1 IEC1010-2-032
600V CAT.IIIPOLLUTION DEGREE 2
WARNING
OPEN
PLEASE READ MANUAL FOR SAFETY.TO AVOID
ELECTRICAL SHOCK NEVER CONNECT THE TEST
LEADS TO THE INPUT JACKS WHICH ARE NOT
FORRELATED MEASURING AND REMOVE ALL
INPUTS BEFORE OPENING CASE.
BATTERIES : 4 X 1.5 V SIZE AA
