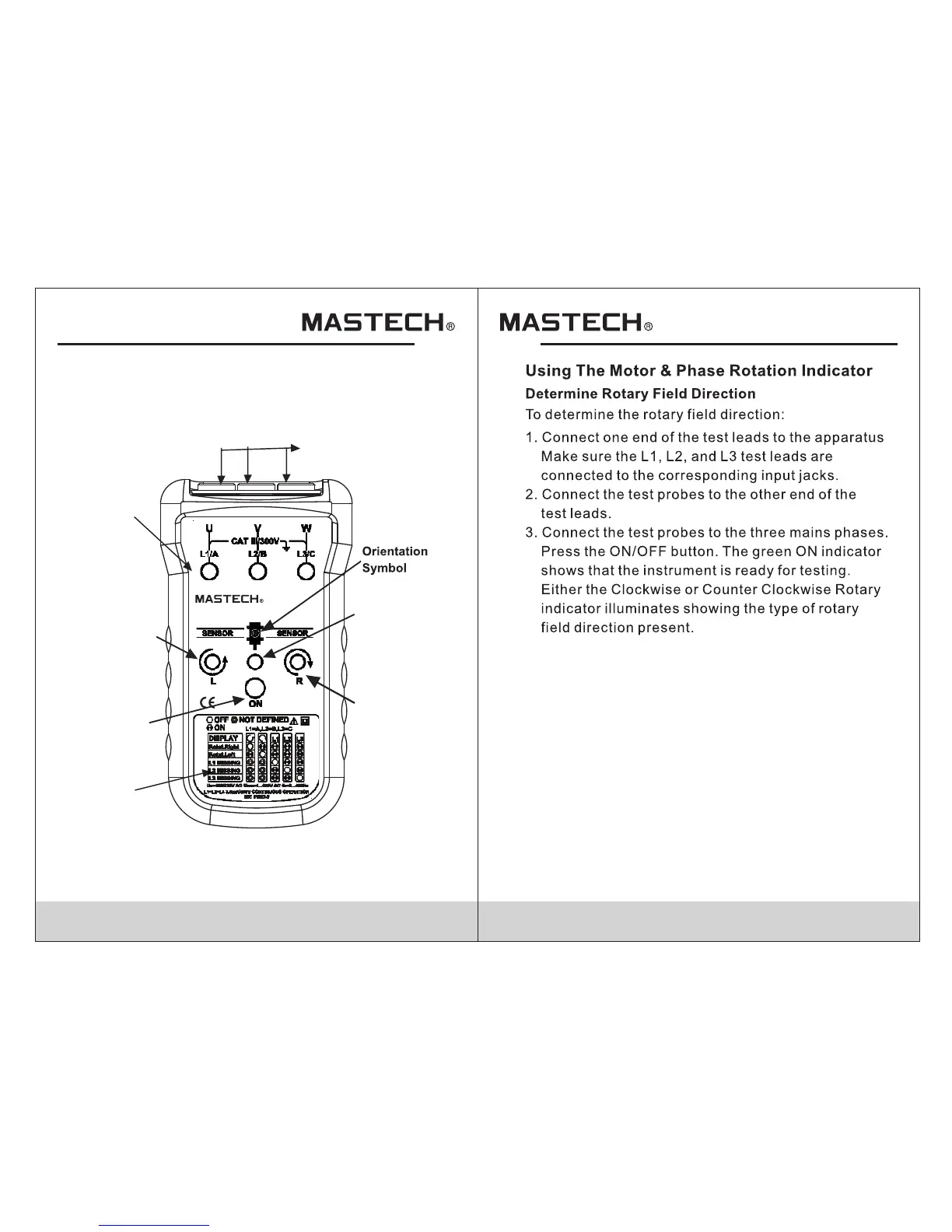

Elements Of The Apparatus
Indicators, buttons, and jacks are shown
in Figure 1.
05
MS5900
MOTOR&PHASEROTATIONINDICATOR
Figure 1.
Test lead input jack
L1、L2、L3
Indicators
Clockwise
Rotation
LED Indicator
ON/OFF
button
Explain
Faceplate
Counter-Clock
wise Rotation
LCD Indicator
ON/OFF
Indicator
