Note
The Indicator will not operate with engines
controlled by frequency converters. The bottom of
the apparatus should be oriented towards the drive
shaft. See the Orientation Symbol on the apparatus.

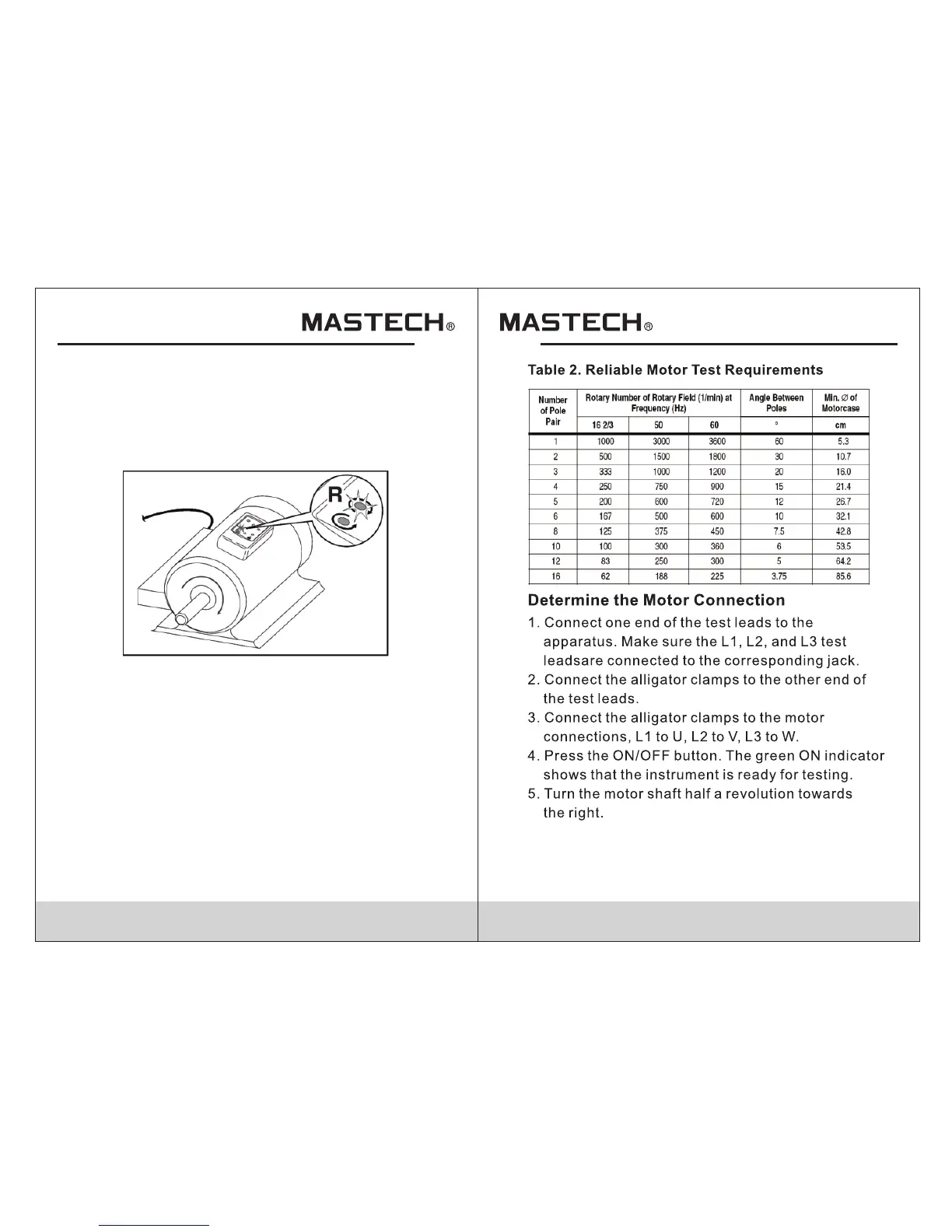

Figure 3. Motor Rotation
See Table 2 for the minimum motor diameter and
number of pole pair to obtain a reliable test result.
