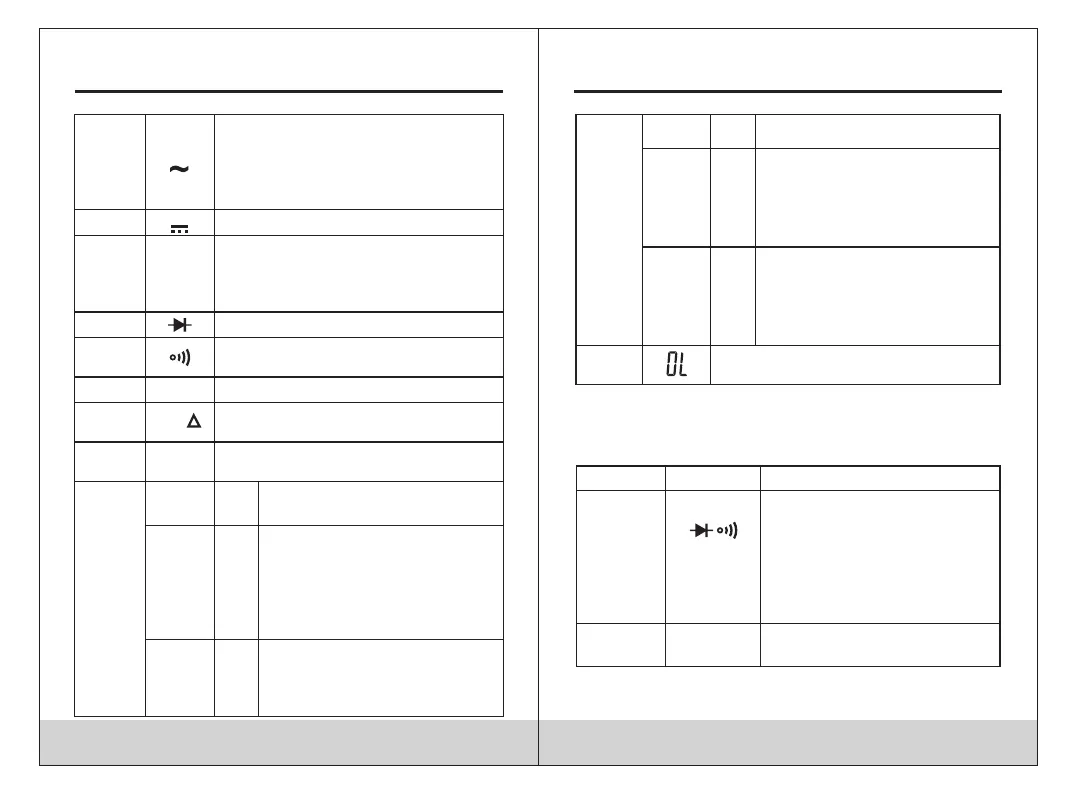

Mastech ms8217 User Manual

09 10
3
4
Indicator for ac voltage or current.
AC voltage and current are displayed
as the average of the absolute value
of the input, calibrated to indicate the
equivalent rms value of a sine wave.
Indicator for dc voltage or current.
5
6
7
8
9
10
The Meter is in the Autorange mode
in which the meter automatically
selects the range with the best
resolution.
AUTO
The Meter is in the Diode Test mode
The Meter is in the Continuity Check
mode.
The Meter is in the Data Hold mode
DATA-H
The Meter is in the Relative
measurement mode
REL
°C:Celsius scale. The unit of
temperature.
°C
11
V:
mV:
V, mV
Volts. The unit of voltage.
-3
Millivolt. 1x10 or 0.001 volts.
A, mA,
µA
µA:
Amperes (amps). The unit of
current.
-3
Milliamp. 1x10 or 0.001
amperes.
-6
Microamp. 1x10 or 0.000001
amperes
A:
mA:
AC
DC
Ω,kΩ,
MΩ
Ω:
kΩ:
MΩ:
Ohm. The unit of resistance.
3
Kilohm. 1x10 or 1000 ohms.
6
Megohm. 1x10 or 1,000,000
ohms.
11
Hz, kHz,
MHz
Hertz. The unit of frequency in
cycles/second.
3
Kilohertz. 1x10 or 1000 hertz.
6
Meghertz. 1x10 or 1,000,000
hertz.
Hz:
Khz:
MHZ:
µF, nF
Farad. The unit of capacitance.
-6
Microfarad.1x10 or 0.000001
farads.
-9
Nanofarad. 1x10 or
0.000000001 farads.
µF:
F:
nF:
12
The input is too large for the selected
range.
2.3 Keypad
See Table 2 indicated for information about the keypad
operations.
Key
Function
Operation performed
O
(YELLOW)
Switches between Resistance
measurement, Diode Test and
Continuity check.
Switches between dc and ac
current.
Disables automatic power-off
feature.
HOLD
Any switch
position
Press HOLD to enter and exit
the Data Hold mode
Ω
A mA µA
Power-up
Option
Percent. The unit of Duty cycle.
% %
