Master Chef 280 Barbecue - Assembly Instructions: Internal Components; Flame Tamer and Cooking Grate Placement; Grease Cup Assembly

12 13
ASSEMBLY INSTRUCTIONS
17

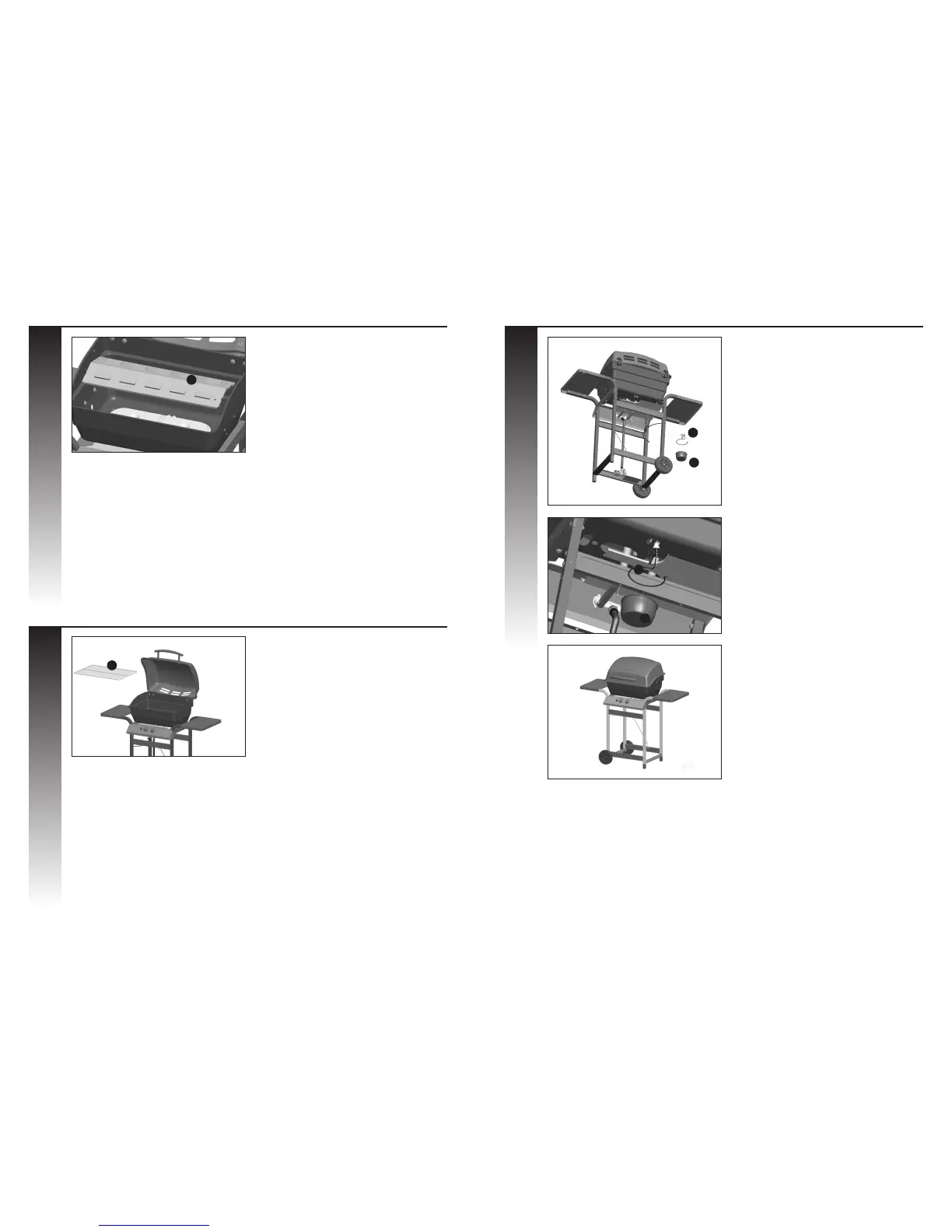

Position the ame tamer (BD) into the burner box
assembly (BA).
Note: The ame tamer (BD) should be placed on
to the hardware assembled in Step 7.
Position the cooking grate (BC) into the burner
box assembly (BA).
Hook the grease cup hook (DC) to the bottom of
the burner box assembly (BA), as shown. Place
the grease cup (DD) into the grease cup hook
(DC).
ASSEMBLY INSTRUCTIONS
15
16
DC
DD
BD
BC
DC
DD
