10
ASSEMBLY INSTRUCTIONS
8

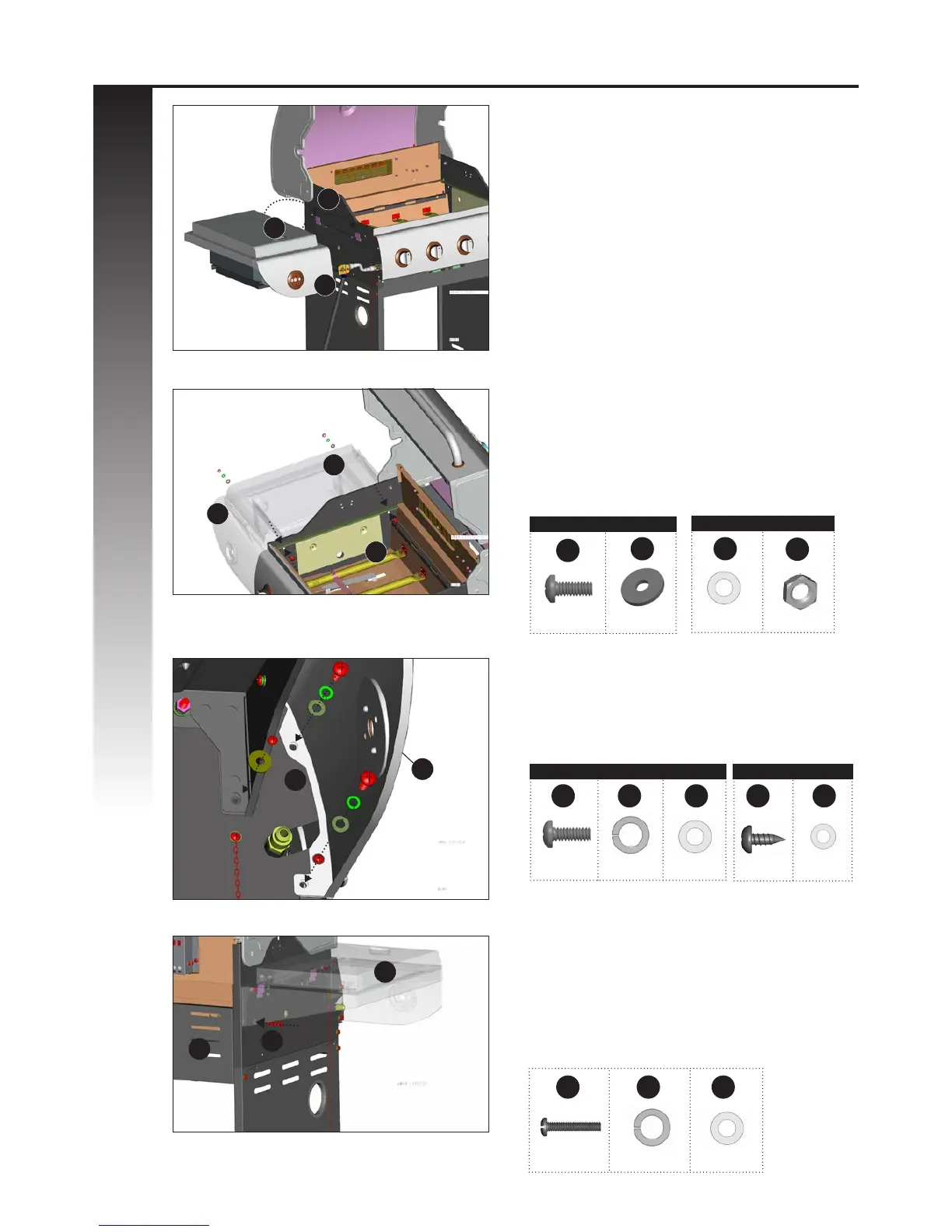

LEFT SIDE SHELF ASSEMBLY
a. Mount the left side burner side shelf (DA and
DB) onto the two support brackets, located
on the left, upper side panel of the burner box
(BA).
b. Assemble the left side burner side shelf
(DA and DB) to the upper side panel of the
burner box (BA), by positioning hardware
through the interior of the burner box (BA),
as shown in gure B.
YOU WILL NEED:
BA
BA
DB
DB
DA
DA
B
A
Back, left side view
Front, left side view
DB
CJ
C
Left side view
View inside burner box
YOU WILL NEED:
B2
B2
A1
A1
YOU WILL NEED:
1 5 6
X 1 X 1 X 1
c. Assemble the front of the left side burner side
shelf assembly (DA and DB) to the control
panel (CJ), as shown in gure C.
d. Complete the left side burner side shelf
assembly (DA and DB) by connecting the side
shelf, the rear of the Burner Box side panel
(BA), and the Upper Back Panel (BH), as shown
in gure D.
2
16
X 2
X 2
A1
4
X 2
B2
6
X 2
2 5 6 15 9
X 2 X 2 X 2 X 1 X 1
C1 D1
C1
D1
C1
DA
BA
BH
D
To Next Page
