Master Chef E500 - Assembly Instructions: Side Burner Valve; Step 9: Side Burner Valve and Knob

11

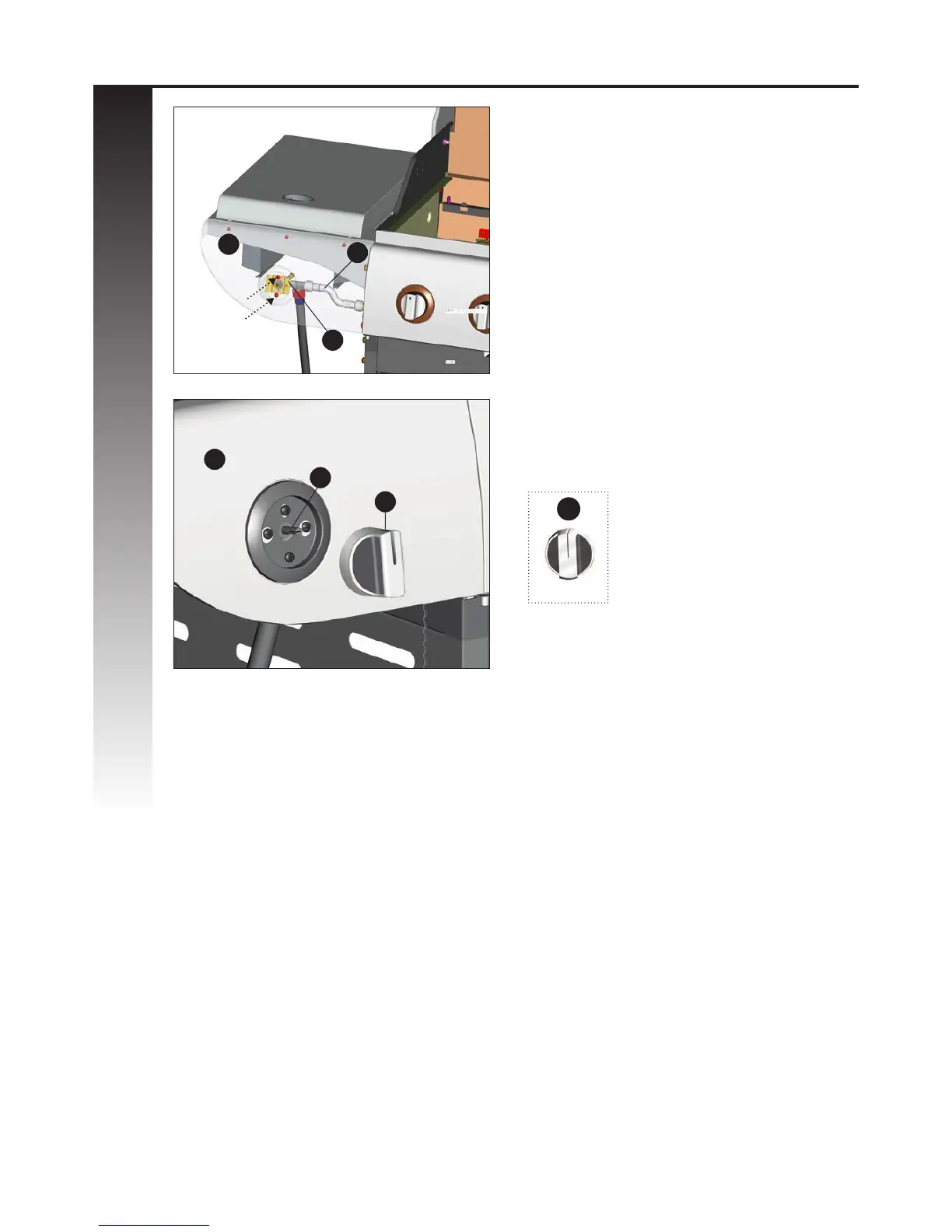

a. Remove the hardware that is pre-assembled
to the IR side burner valve (CC), as shown in
gure A.
Insert the side burner valve stem (CC) through
the rear of the left side shelf fascia (DB) and
assemble using the hardware removed.
b. Assemble the Side burner control knob (#17)
to the Side burner valve (CC).
ASSEMBLY INSTRUCTIONS
9
CC
CD
A
B
CC
DB
DB
17
17
X 1
YOU WILL NEED:
