Page #9 background image
9
Lowes.com/masterforge
ASSEMBLY INSTRUCTIONS

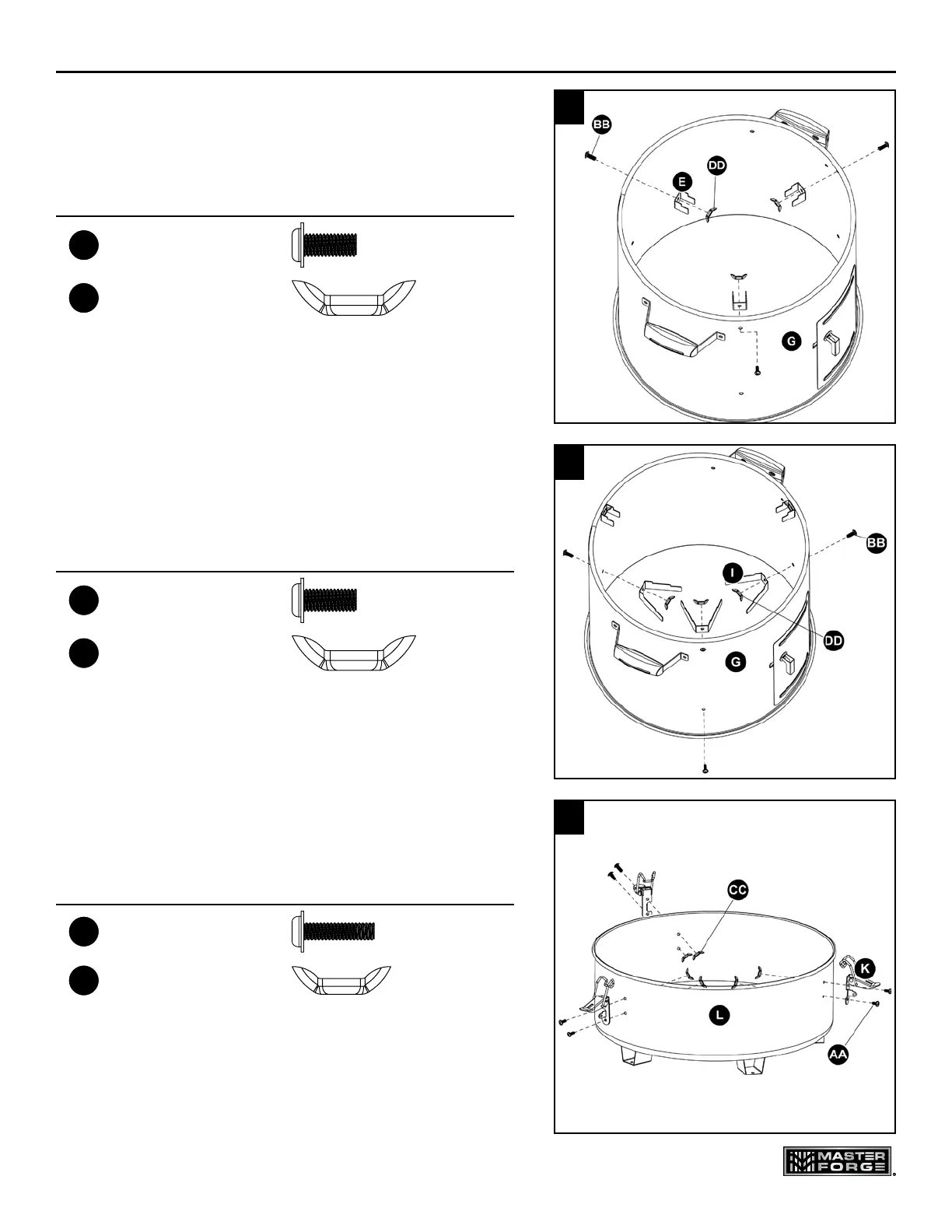

6. Attach locks (K) to bottom bowl (L) using six M4 x
15 mm screws (AA) and six M4 wing nuts (CC).
Hardware Used
AA
M4 x 15 mm Screw x 6
CC
M4 Wing Nut x 6
4. Attach cooking grid supports (E) to upper smoker
body (G) using three M5 x 12 mm screws (BB) and
three M5 wing nuts (DD).
Hardware Used
BB
M5 x 12 mm Screw x 3
DD
M5 Wing Nut x 3
4
5. Attach water pan supports (I) to upper smoker body
(G) using three M5 x 12 mm screws (BB) and three
M5 wing nuts (DD).
Hardware Used
BB
M5 x 12 mm Screw x 3
DD
M5 Wing Nut x 3
5
