ASSEMBLY INSTRUCTIONS

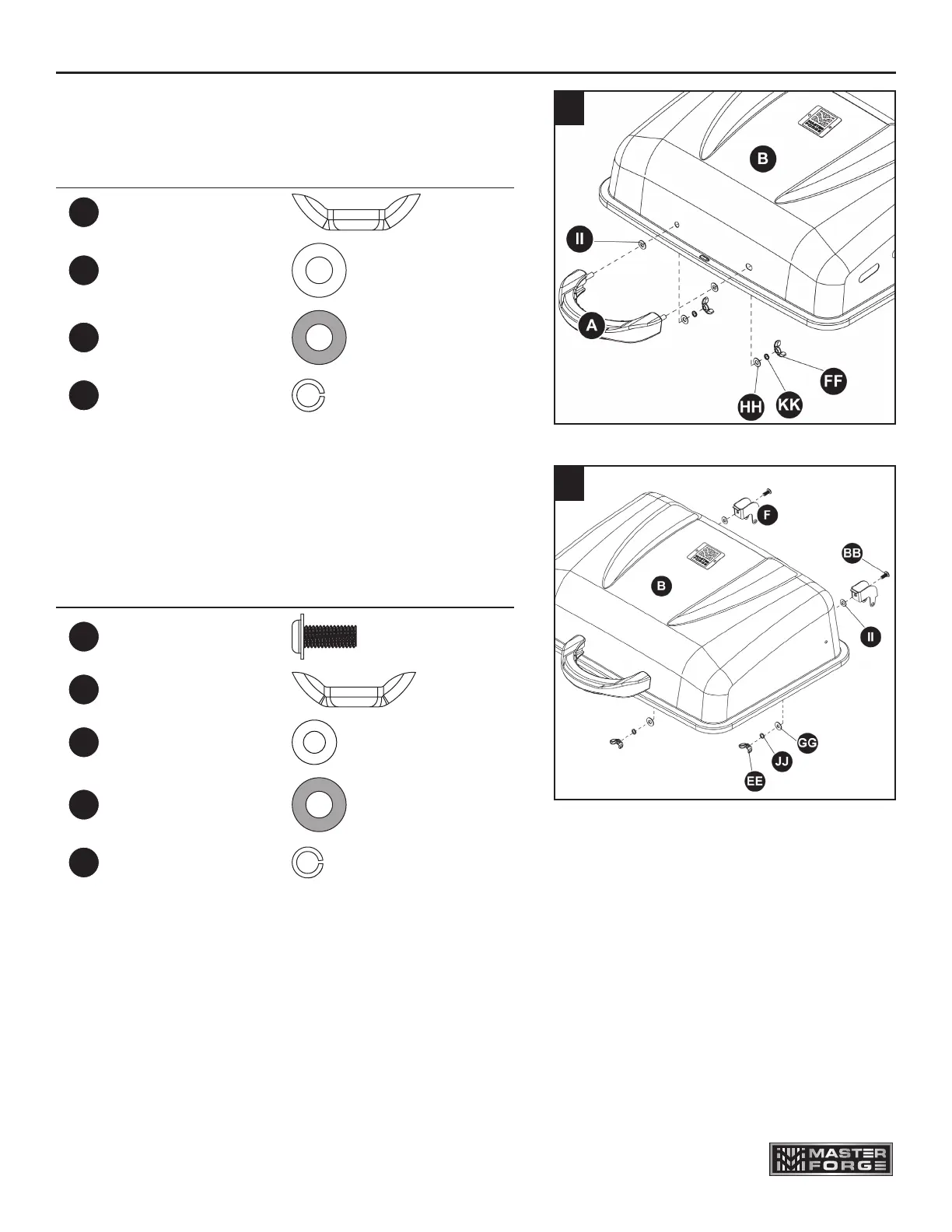

1. Attach the handle (A) to the lid (B) using two sets
of 6 mm heat resistant washers (II), washers (HH),
6 mm lock washers (KK) and M6 wing nuts (FF).
Hardware Used
FF
M6 Wing Nut x 2
HH
6 mm Washer x 2
II
6 mm Heat
Resistant Washer
x 2
KK
6 mm
Lock Washer
x 2
1
2. Attach the top hinges (F) to the lid (B) using two
sets of M5 x 12 mm small screws (BB),
6 mm heat resistant washers (II), 5 mm washer
(GG), 5 mm lock washers (JJ) and M5 wing nuts
(EE).
Hardware Used
BB
M5 x 12 mm
Small Screw
x 2
EE
M5 Wing Nut x 2
GG
5 mm Washer x 2
II
6 mm Heat
Resistant Washer
x 2
JJ
5 mm
Lock Washer
x 2
2
