ASSEMBLY INSTRUCTIONS
10
Hardware Used
DD
[
0[%ROW

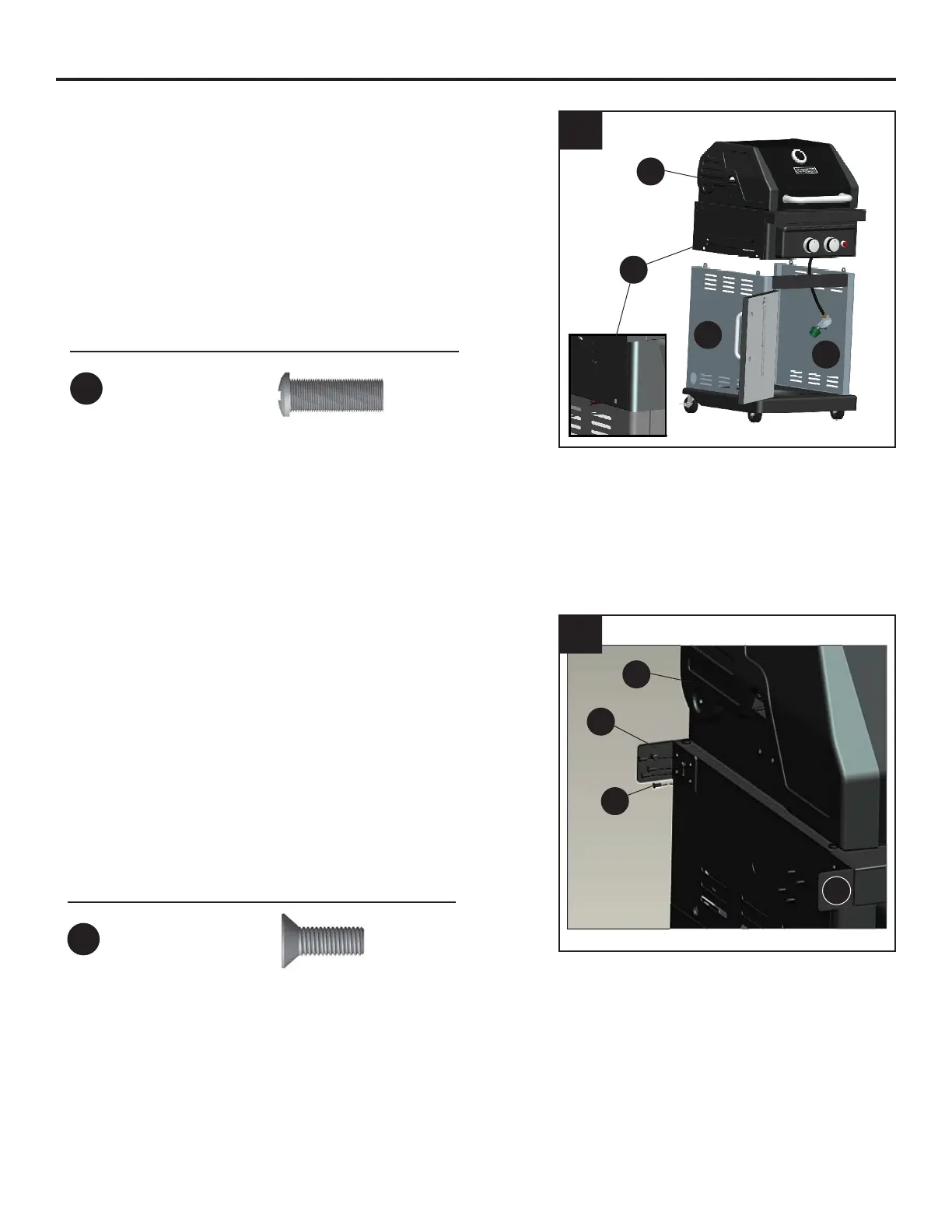

8. Carefully place the grill body (L) over the
mounting tabs on the cart side panels (D and E)
and onto the cart. Adjust the grill body (L) so
that the holes in the grill body (L) are aligned
with the holes in the tabs of the cart side panels
(D and E). NOTE: Make sure the gas hose is
inside the cart. Fasten the grill body (L) using
2 screws (CC) on each side.
9. NOTE: Side Table Supports 1 (M) will be used
for both the right side front and left side rear
placement. Side Table Supports 2 (N) will be
used for both the right side rear and left side
front placement.
Install the side table supports 1 (M) and side
table supports 2 (N) on both sides of the grill
body with screws (DD). Arrows cut out of the
supports indicate the correct position of the
support when fastened to the grill body (L).
8
9
B
Hardware Used
CC
[
0[6FUHZ
CC
L
D
E
L
DD
M
N
