Master Forge MFJ576PNC - Page 11

11
ASSEMBLY INSTRUCTIONS
Lowes.com/masterforge
1
2
BB
18
C
A
1
2
3
EE
DD
17
F
C
1
2
2
DD
L
L
J
16

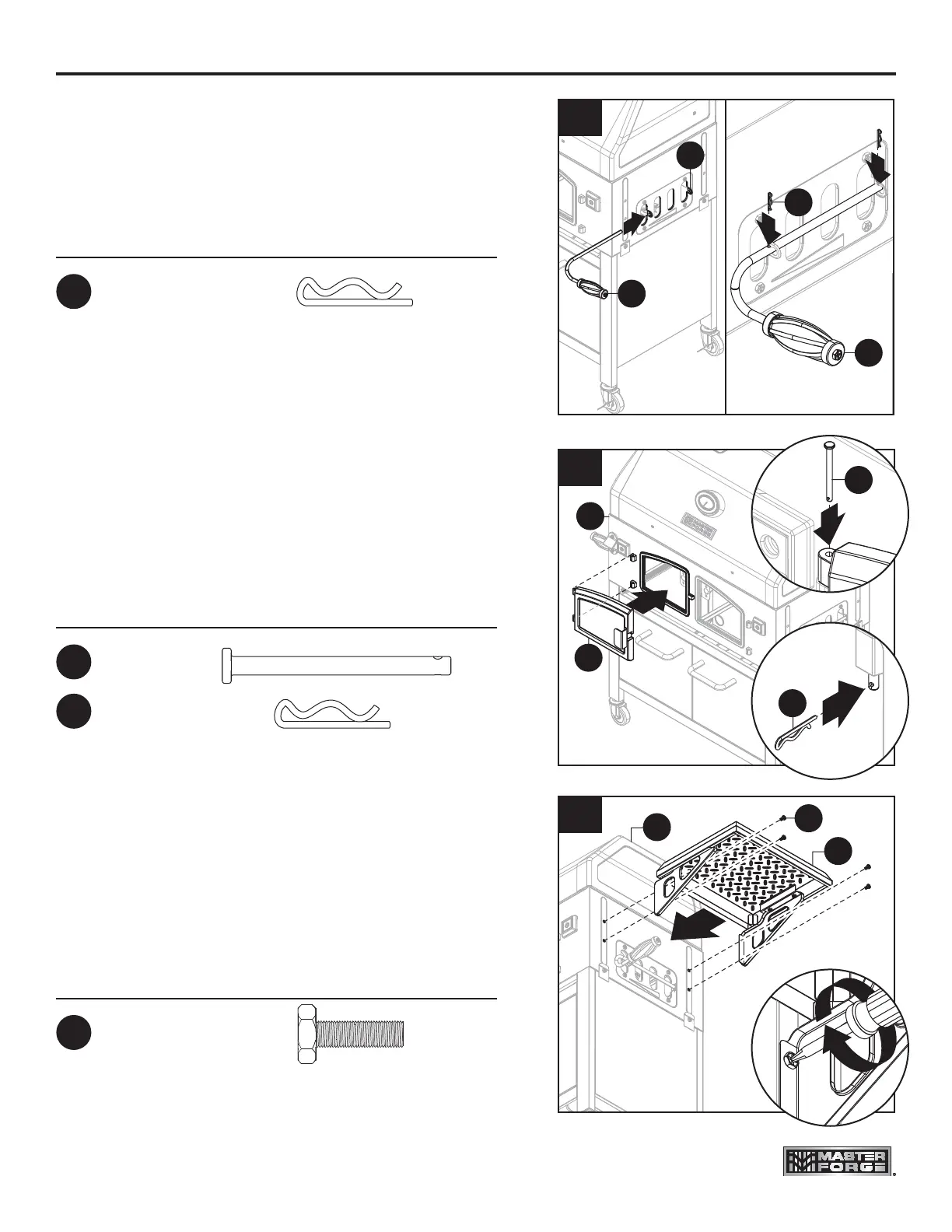

16. Insert damper handle – right (L) into the two
holes on right side damper (J). Secure with two
cotter pins (DD). Repeat for damper handle –
left (A1).
17. Attach charcoal access door – left (F) to lid and
¿UHER[DVVHPEO\&,QVHUWWZRKLQJHEROWV
(EE) into hinges on charcoal access door (F)
and secure with cotter pins (DD). Repeat for
charcoal access door – right (G).
$WWDFKULJKWVLGHVKHOI$WROLGDQG¿UHER[
assembly (C) using four M6x20 bolts (BB).
Repeat on left side with remaining side shelf (A).
NOTE: First secure two upper M6x20 bolts (BB),
then lower M6x20 bolts (BB).
Hardware Used
Cotter Pin
Hinge Bolt
x 4
x 4
DD
EE
Hardware Used
Cotter Pin
x 4
DD
Hardware Used
M6x20 Bolt
x 8
BB
