ASSEMBLY INSTRUCTIONS
Lowes.com/masterforge
1
2
AA
21
C
D
1
2
AA
FF
20
C
E
19
C
M

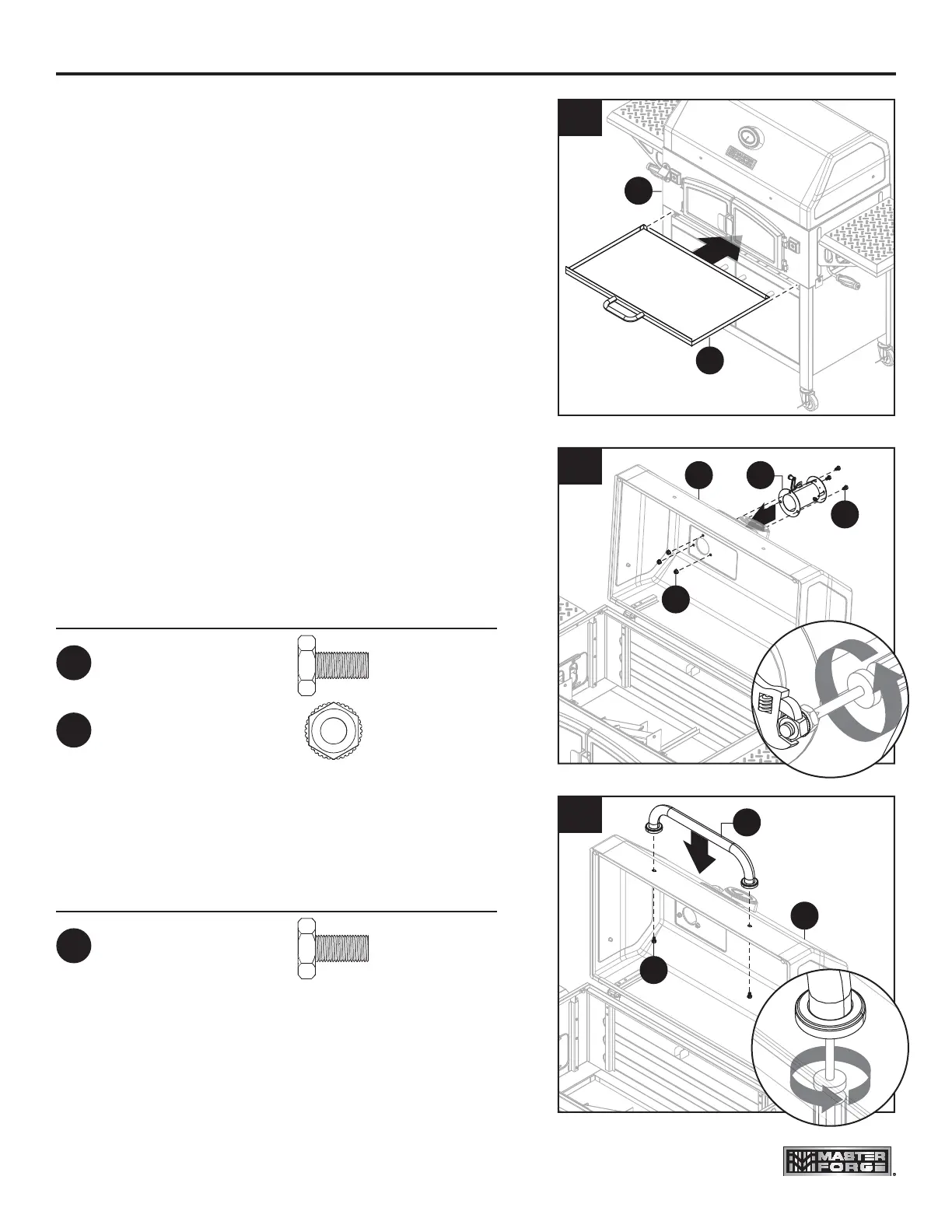

,QVHUWDVKWUD\0LQWROLGDQG¿UHER[
assembly (C).
20. Attach smoke stack assembly (E) to lid and
¿UHER[DVVHPEO\&XVLQJWKUHH0[
bolts (AA) and three M6 lock nuts (FF).
NOTE: Make sure the smoke stack damper
DGMXVWPHQWKDQGOHIDFHVWKHIURQWRIWKHJULOO
$WWDFKOLGKDQGOHDVVHPEO\'WROLGDQG¿UHER[
assembly (C) using two M6x12 bolts (AA).
Hardware Used
M6x12 Bolt
M6 Lock Nut
x 3
x 3
AA
FF
Hardware Used
M6x12 Bolt
x 2
AA
