Master Forge MFJ576PNC - Lid and Firebox Assembly Attachment

9
ASSEMBLY INSTRUCTIONS
Lowes.com/masterforge
BB
12
V
C
O
V
C
O
11
1
2
3
10
W
T
Q

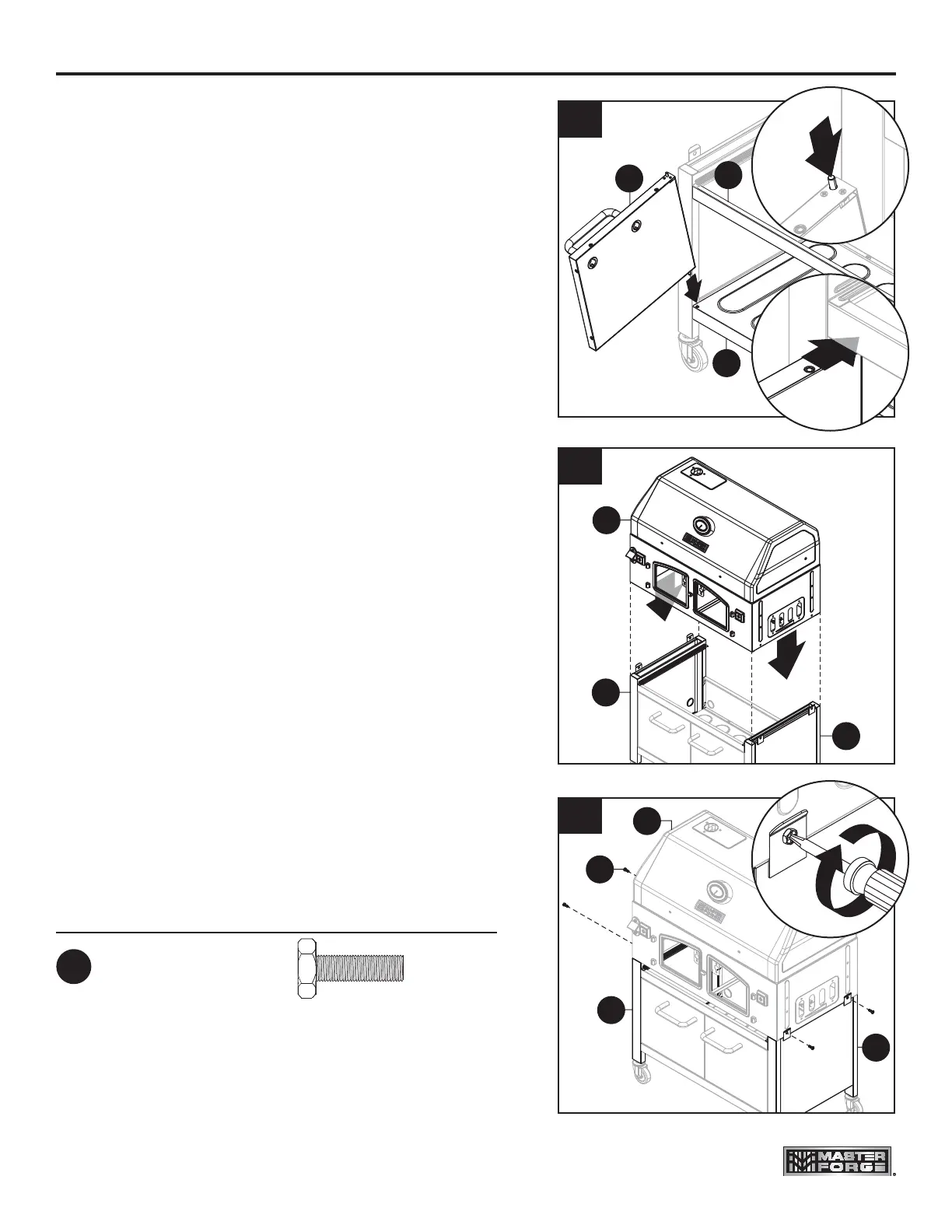

10. Insert pin on the bottom of the left door assembly
(W) into the hole on the bottom shelf (Q). Push
the pin down on the top of the left door assembly
(W) and insert it into the hole on the upper door
brace (T). Repeat for right door assembly (R).
11. With the help of a second person, set lid and
¿UHER[DVVHPEO\&RQWRSRIOHIWFDUW
assembly (V) and right cart assembly (O).
6HFXUHOLGDQG¿UHER[DVVHPEO\&RQWRSRIOHIW
cart assembly (V) and right cart assembly (O)
using four M6x20 bolts (BB).
Hardware Used
M6x20 Bolt
x 4
BB
