ASSEMBLY INSTRUCTIONS

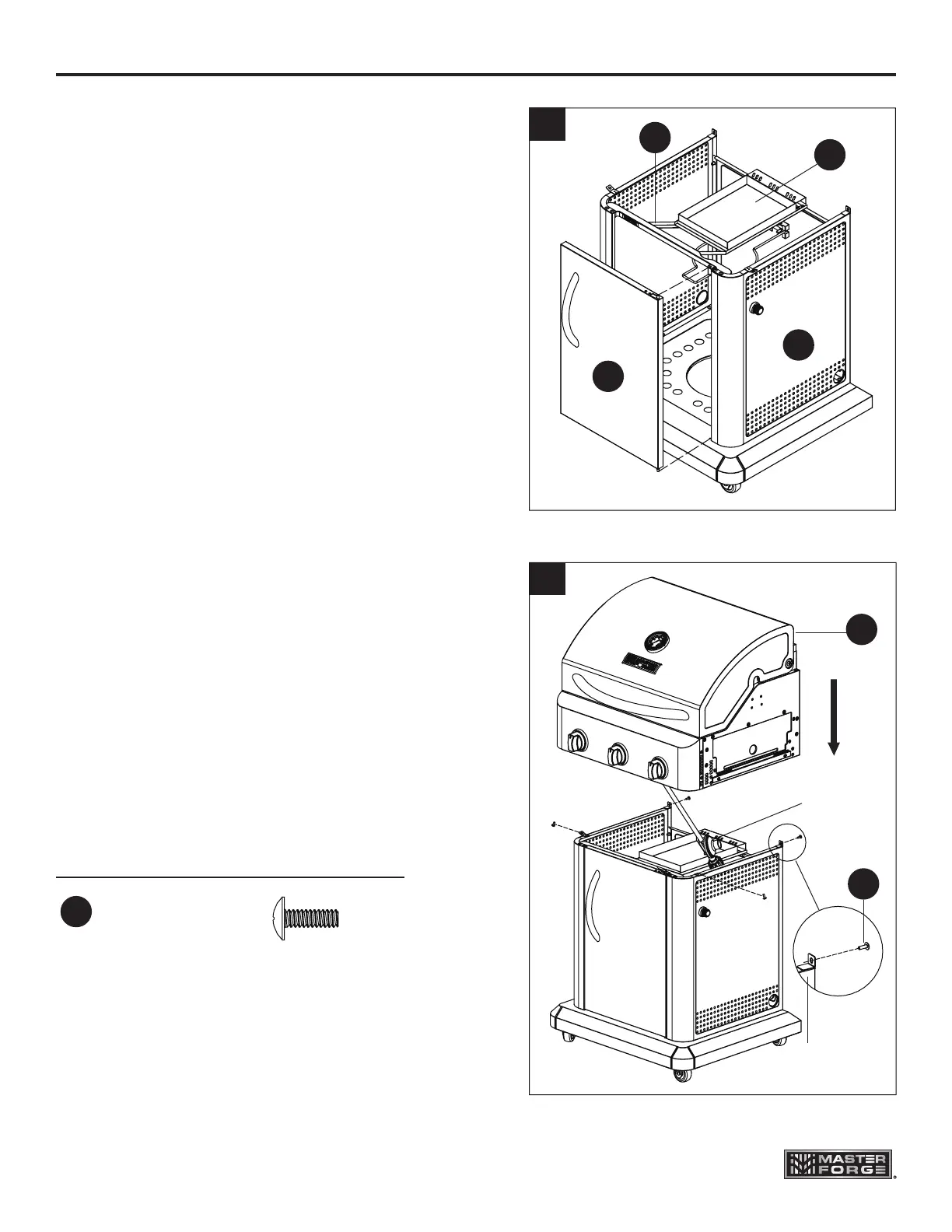

8. For the door (S), insert bottom hinge pin into
hole on bottom panel (P). Push top hinge
pin in the corner of the door to insert into
hole in top corner of the right panel (N).
Then, put the drip tray (O) onto the drip tray
support (I).
9. Take the pressure regulator out from under
the burner box (A). Lift the burner box (A)
onto the cabinet, making sure that the gas
pressure regulator is in the cabinet, then
position burner box on the cabinet by
aligning the four tabs on top of the cabinet
with the holes in the burner box. Fasten the
burner box to the cabinet with 4 screws (AA).
Hardware Used
AA
3/16-24 x 1/2 in.
Screw
x 4
8
9
S
N
I
O
AA
Tab
Pressure
regulator
A
To Next Page
