19
DRAWING
NUMBER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
TOP GRILLE
CARRYING HANDLE
TOP PLATE
(BLACK)
BURNER ASS'Y
WICK COVER
REAR GRILLE
CABINET BASE
(
BLACK
)
WIND COVER
WICK ADJUSTER ASS'Y
(COMPLETE)
WICK
WICK ADJUSTER GASKET
SAFETY SHUT OFF DEVICE
DRIP TRAY ASS'Y(BLACK)
FUEL CAP GASKET
FUEL CAP ASS'Y
WICK ADJUSTER KNOB(BLACK)
BATTERY CASE ASS'Y(BLACK)
FRONT GRILLE
CABINET(BLACK)
MICA WINDOW
DOOR(BLACK)
FUEL GAUGE
FUEL GAUGE GASKET
TANK ASS'Y(BLACK)
IGNITER ASS'Y
WICK SLEEVE
PS-CV01
WS-CV02R
WS-CV03B
2112-0067-00
WS-CV25
PS-CV060
2118-0053-02
WS-CV17
2113-0047-00
2114-0053-00
PS-CV19R
See 9
PS-CV32R1B
WS-CV30
WS-CV29
WS-CV14B
2118-0031-02
PS-CV061
2118-0054-02
WS-CV09
WS-CV34B
WS-CV21
WS-CV22
2111-0088-02
2117-0023-00
PS-CV35
DESCRIPTION
PART
NUMBER
NOTE :
SPECIFY MODEL NUMBER AND
PART NUMBER WHEN ORDERING PARTS.
Model No.
Type of Heater
Heat Output
Fuel Tank
Tank Capacity
Continuous Combustion Time
Max. Fuel Consumption
Ignition Method
Dimensions
Wick Height
Replacement Wick Part Number
WK95C8M
Convection
Max. 23,800 BTU/hr
Integral
1.9 U.S. gallons
Approx. 9-12 hr
0.180 U.S. gallons/hr.
Battery-C Cell x2, Igniter Type "B"
27 inches
17.5 inches
17.5 inches
25/64 IN. (10mm)
2114-0053-00
Height
Width
Depth
2
1
3
4
6
19
21
7
8
9
10
5
20
16
12
11
15
14
13
18
17
26
24
22
23
25

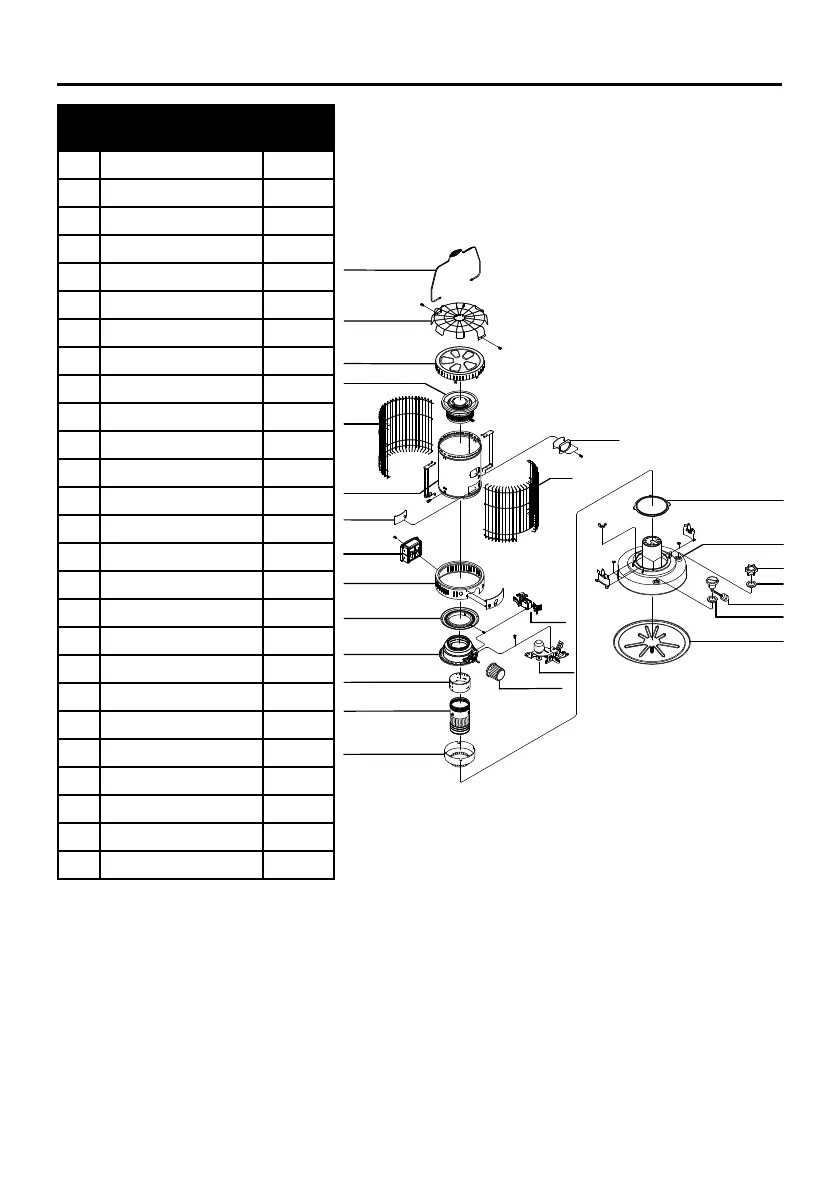

REPLACEMENT PARTS LIST
ITEM
No.
DESCRIPTION
PART
NUMBER
1
TOP GRILLE
PS-CV01
2
CARRYING HANDLE
WS-CV02R
3
TOP PLATE (BLACK)
WS-CV03B
4
BURNER ASS'Y
2112-0067-00
5
WICK COVER
WS-CV25
6
REAR GRILLE
PS-CV060
7
CABINET BASE (BLACK)
2118-0053-02
8
WIND COVER
WS-CV17
9
WICK ADJUSTER ASS'Y (COMPLETE)
2113-0047-00
10
WICK
2114-0053-00
11
WICK ADJUSTER GASKET
PS-CV19R
12
SAFETY SHUT OFF DEVICE
See 9
13
DRIP TRAY ASS'Y (BLACK)
PS-CV32R1B
14
FUEL CAP GASKET
WS-CV30
15
FUEL CAP ASS'Y
WS-CV29
16
WICK ADJUSTER KNOB (BLACK)
WS-CV14B
17
BATTERY CASE ASS'Y (BLACK)
2118-0031-02
18
FRONT GRILLE
PS-CV061
19
CABINET (BLACK)
2118-0054-02
20
MICA WINDOW
WS-CV09
21
DOOR (BLACK)
WS-CV34B
22
FUEL GAUGE
WS-CV21
23
FUEL GAUGE GASKET
WS-CV22
24
TANK ASS'Y (BLACK)
2111-0088-02
25
IGNITER ASS'Y
2117-0023-00
26
WICK SLEEVE
PS-CV35
NOTE: SPECIFY MODEL NUMBER AND
PART NUMBER WHEN ORDERING PARTS
