A
D
23
18
15
D
B
2
14

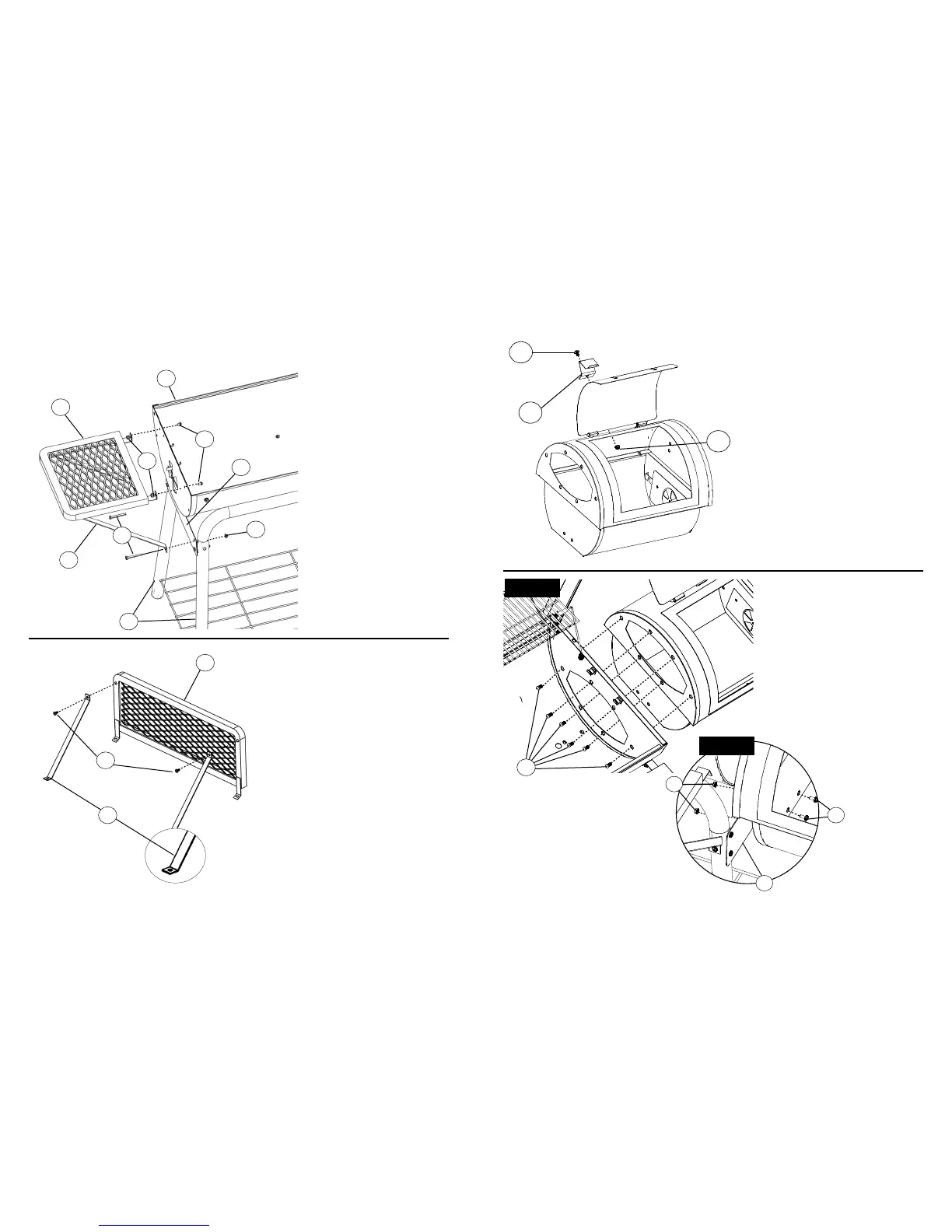

STEP 9.
Align holes on assembled side shelf
(14) with holes on grill body (2) and leg
bracket (23) as shown.
Insert phillips head screw (A) through
holes on body (2) into side shelf (14).
Secure using hex flange nuts (D).
Attach shelf support brackets (15) to
top holes in leg bracket (23) and left
long legs (18) using phillips head
screws (B). Secure using hex flange
nuts (D).
Do not fully tighten screws at this
time.
STEP 10.
Attach shelf support brackets (17)
to front shelf (16) using phillips
head screws (A).
Note: Position brackets so sharper
angled ends are used to connect to
grill legs.
Do not fully tighten at this time.
16
A
17
9
A
STEP 20a.
Use phillips head screw (A) and to
secure firebox to grill body as shown.
STEP 19.
On rear of firebox, insert tab on lid
stop (31) into slot then secure in place
with phillips head screw (A) and
flange nut (D).
STEP 20b.
Complete firebox assembly by align-
ing holes in smoker box to holes in
smoker box bracket (24).
Use phillips head screw (A) and
flange nut (D) to secure.
31
A
24
D
15
A
D
STEP 20a.
STEP 20b.
To Next Page
