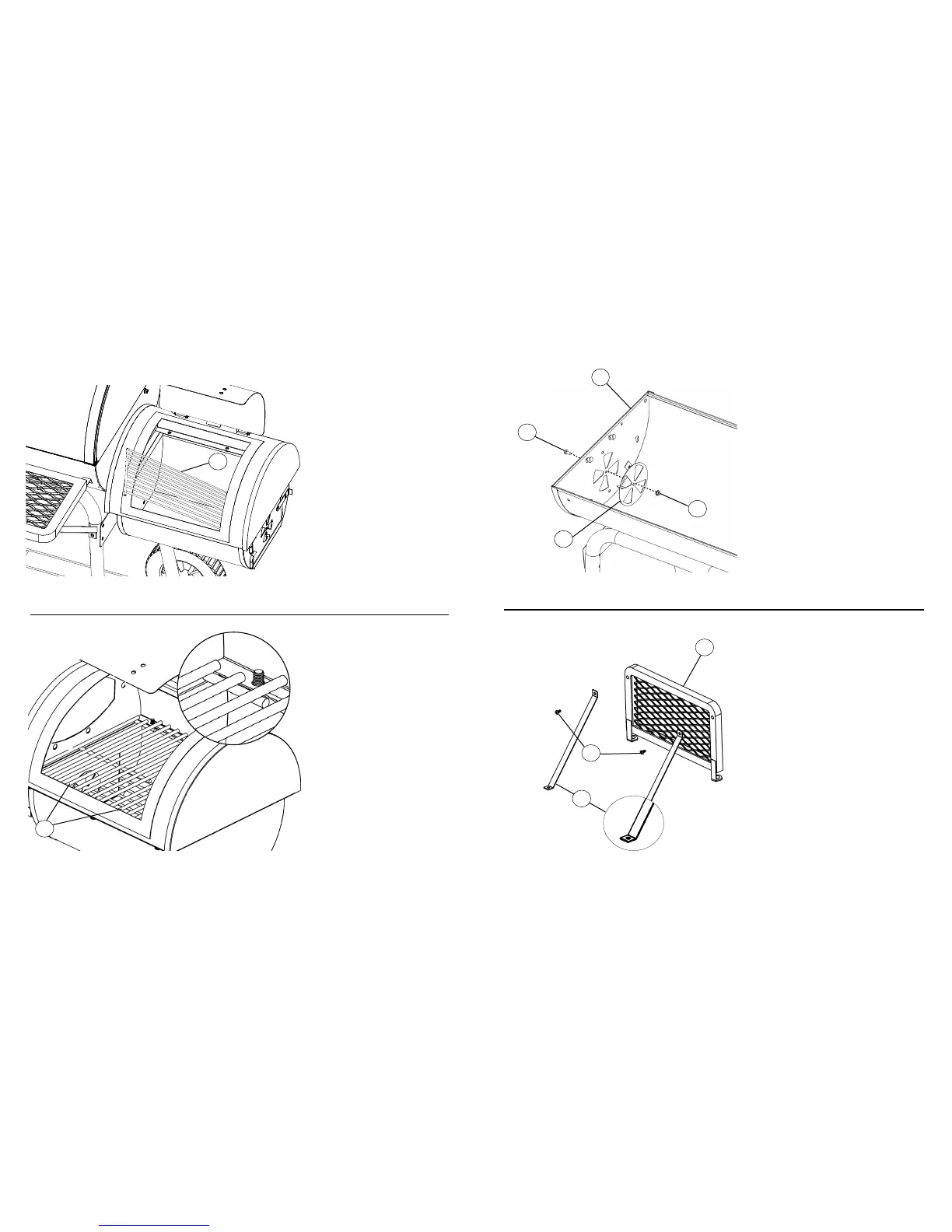

STEP 21.
Insert firebox charcoal grate (28) into
firebox body as shown.
28
STEP 22.
Note: Shorter end of cooking grate
should be placed near corners.
Some parts not shown for clarity.
Insert firebox cooking grates (27) into
smoker box as shown.
27
16
8
11
A
E
2
Carefully reposition grill as shown.
STEP 7.
Note: Do not over tighten. Air
damper should move freely.
Attach air damper (11) to body (2)
using phillips head screw (A) and
lock nut (E) as shown.
STEP 8.
Note: Position brackets so sharper
angled ends are used to connect
to leg bracket.
Attach side shelf support brackets
(15) to side shelf (14) using phillips
head screws (A).
Do not fully tighten at this time.
A
14
15
To Next Page
