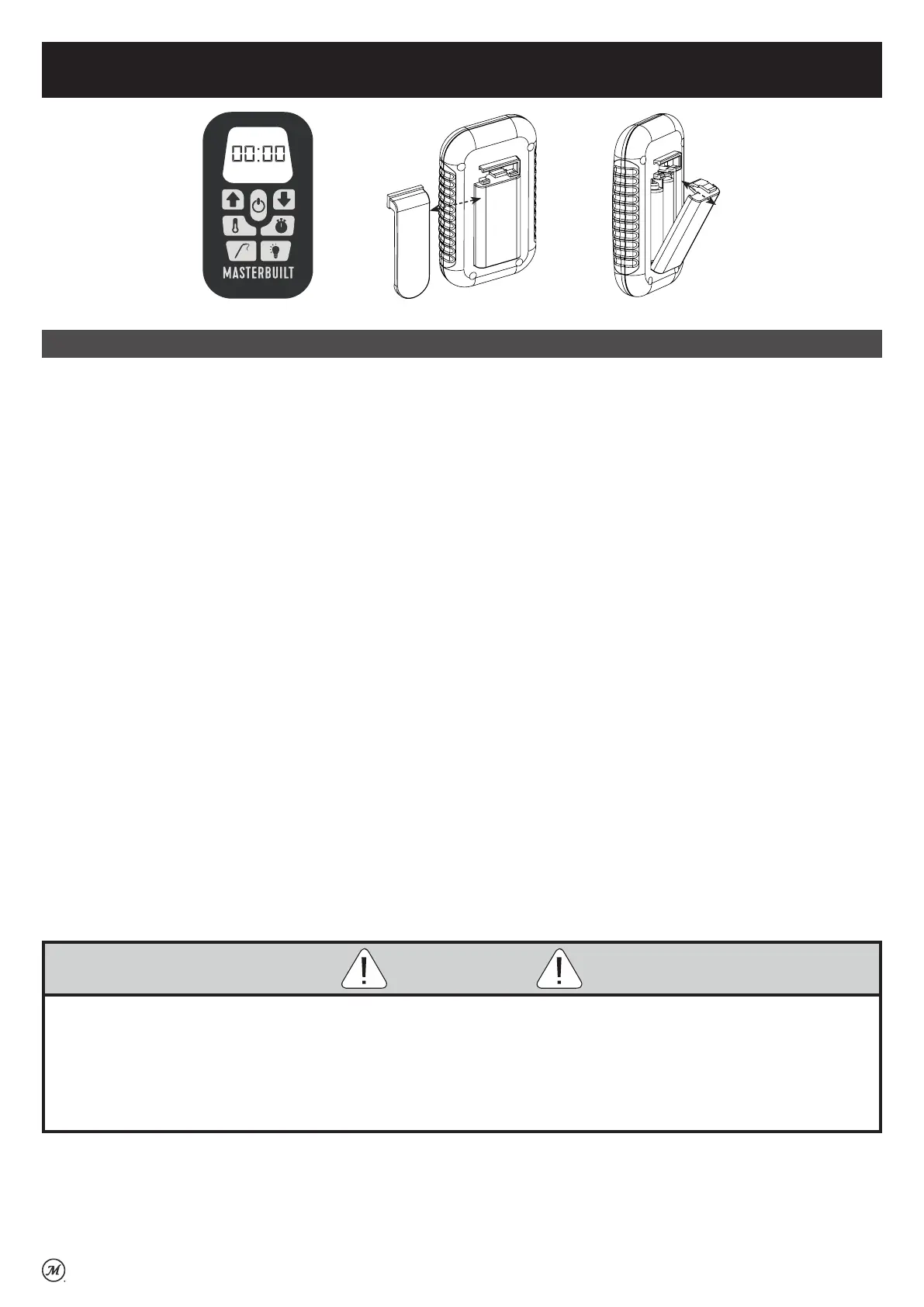

To replace batteries:
• Slide belt clip to the left to remove. Press tab down on battery cover and pull out.
• Install 2 AAA alkaline batteries. Check positive (+) and negative (-) symbols on the case and battery to
ensure proper installation. Replace the battery cover.
• Remove batteries before storing remote control.
To test frequency range:
• Turn smoker on. Use remote to turn light on and off as you move away from smoker.
• Remote control is out of frequency range when light will no longer turn on and off. Remote control has
frequency range of up to 30 m. Test frequency range before and during use.
IMPORTANT:
• Do not leave remote control exposed to sunlight for prolonged periods of time.
Troubleshooting:
• If the remote is not working properly or not interfacing correctly with the controller, it may be due to weak
batteries, incorrect battery installation or the remote is not correctly linked to controller.
Possible solutions:
• Replace batteries and install according to image in battery housing.
• Link controller and remote:
1. Turn controller and remote ON.
2. Press and hold SET TEMP on controller for 3 seconds.
3. On the remote, press MEAT PROBE, LIGHT, MEAT PROBE, LIGHT (all buttons must be pressed
within 5 seconds of each other). A short beep will occur after each button is pressed.
